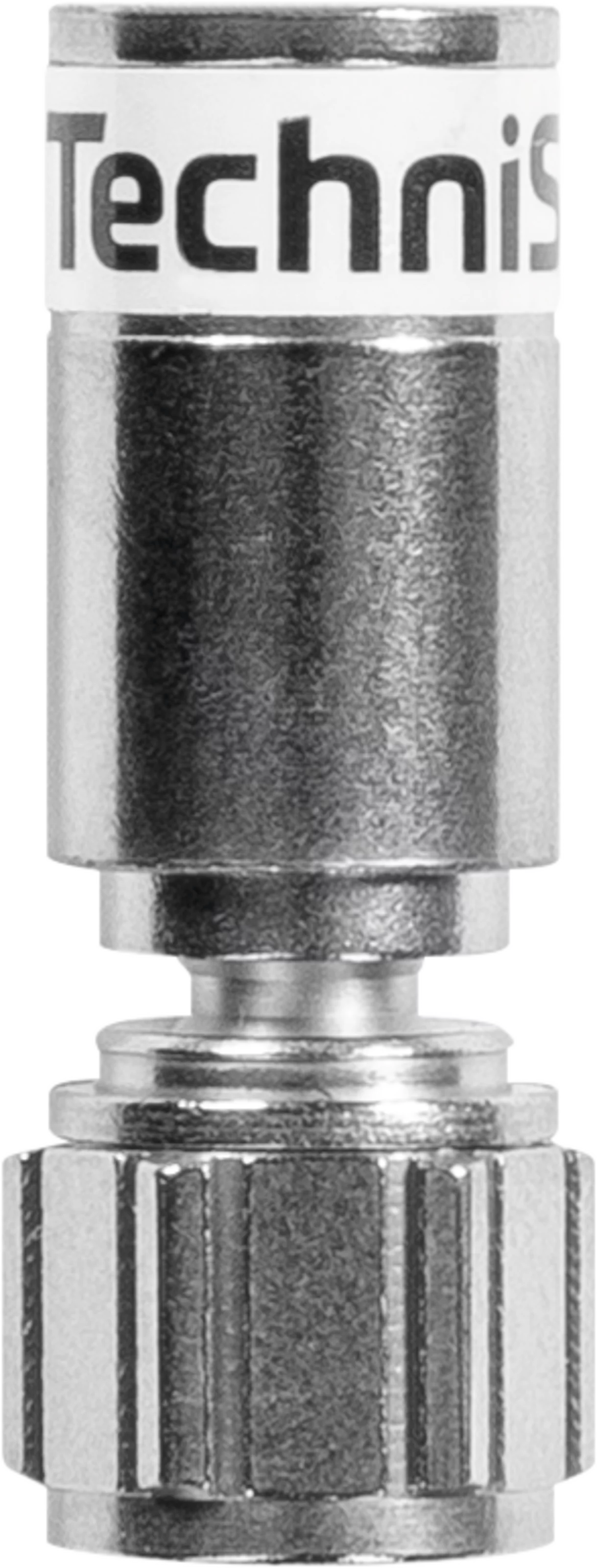

F Compression connector 3.9
Premium 3.9 F connector in compression design with shielding values of ≥ 118 dB
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
| silver |
4019588133495 |
0001/3349 |
1,24 kg |
1,22 kg |
| Top Features |
- Suitable for all TechniSat COAXSAT 115 cables
- Suitable for all coaxial cables 0.8/3.6
- Installation with compression pliers 0000/3339 from TechniSat
|
| Attenuation |
| 10 MHz: 0,01 |
| 100 MHz: 0,01 |
| 450 MHz: 0,01 |
| 800 MHz: 0,05 |
| 862 MHz: 0,01 |
| 1000 MHz: 0,02 |
| 2250 MHz: 0,02 |
| Return loss |
| 65 - 470 MHz: ≥ 28 dB |
| 470 - 1800 MHz: ≥ 26 dB |
| 1800 - 2450MHz: ≥ 26 dB |
| Shielding |
| 30 - 1000 MHz: > 125 dB CoMeT |
| 1000 - 2250 MHz: > 118 dB CoMeT |
| Technical data |
| Protection class: IPX8 |
| Impedance: 75 Ω |
| Diameter dielectric: max. 3,6 mm |
| Diameter with coating: 5,6 ... 5,8 mm |
| Transfer impedance |
| 5MHz: < 2,5 |
| 30 MHz: < 2,5 |
| Scope of Delivery |
| Pack: 100 piece |
