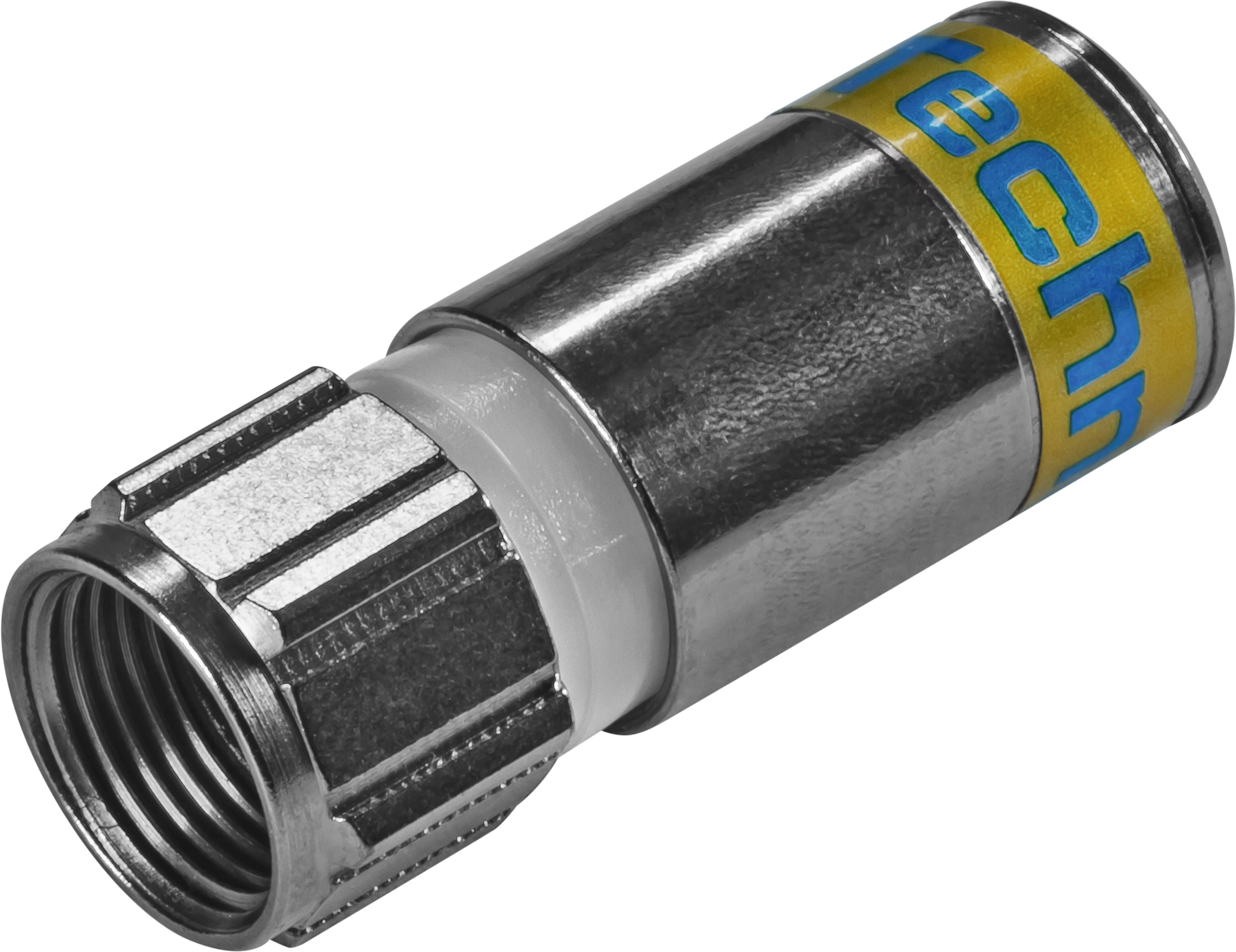

F Compression connector 4.9

F Compression connector 4.9

Premium 4.9 F connector in compression design with shielding values ​​of ≥ 120 dB
EAN Colour Item no.
4019588100374 silver 0100/3337
Top Features
  • High-end F-connector with shielding factor ≥ 120 dB, suitable for all 1.0 / 4.6 coaxial cables of the RG 6 series
  • Ideal for outdoor use: High-quality compression connector compliant with cable network operator specifications (EN61169-24:2009). An O-ring seal in the front part of the connector ensures a waterproof connection according to IPX8.
  • Important: A suitable compression tool and stripping tool are additionally required for installation, both not included.
  • Simple, precise installation of compression connectors: Just strip the cable, push on the connector, and crimp it with a compression tool, e.g., TechniSat 0000/3339.
  • Scope of delivery: 100 x F-compression connectors 4.9, suitable for COAXSAT 120-4.6 and 140-4.6 cables from TechniSat
Attenuation
10 MHz: 0,01
100 MHz: 0,01
450 MHz: 0,01
800 MHz: 0,05
862 MHz: 0,01
1000 MHz: 0,02
2250 MHz: 0,02
Return loss
65 - 470 MHz: ≥ 38 dB
470 - 1800 MHz: ≥ 38 dB
1800 - 2450MHz: ≥ 35 dB
Shielding
30 - 1000 MHz: > 140 dB CoMeT
1000 - 2250 MHz: > 120 dB CoMeT
Technical data
Protection class: IPX8
Impedance: 75 Ω
Diameter dielectric: max. 4,6 mm
Diameter with coating: 6,8 ... 7 mm
Transfer impedance
5MHz: < 2,5
30 MHz: < 2,5
Scope of Delivery
Pack: 100 piece
