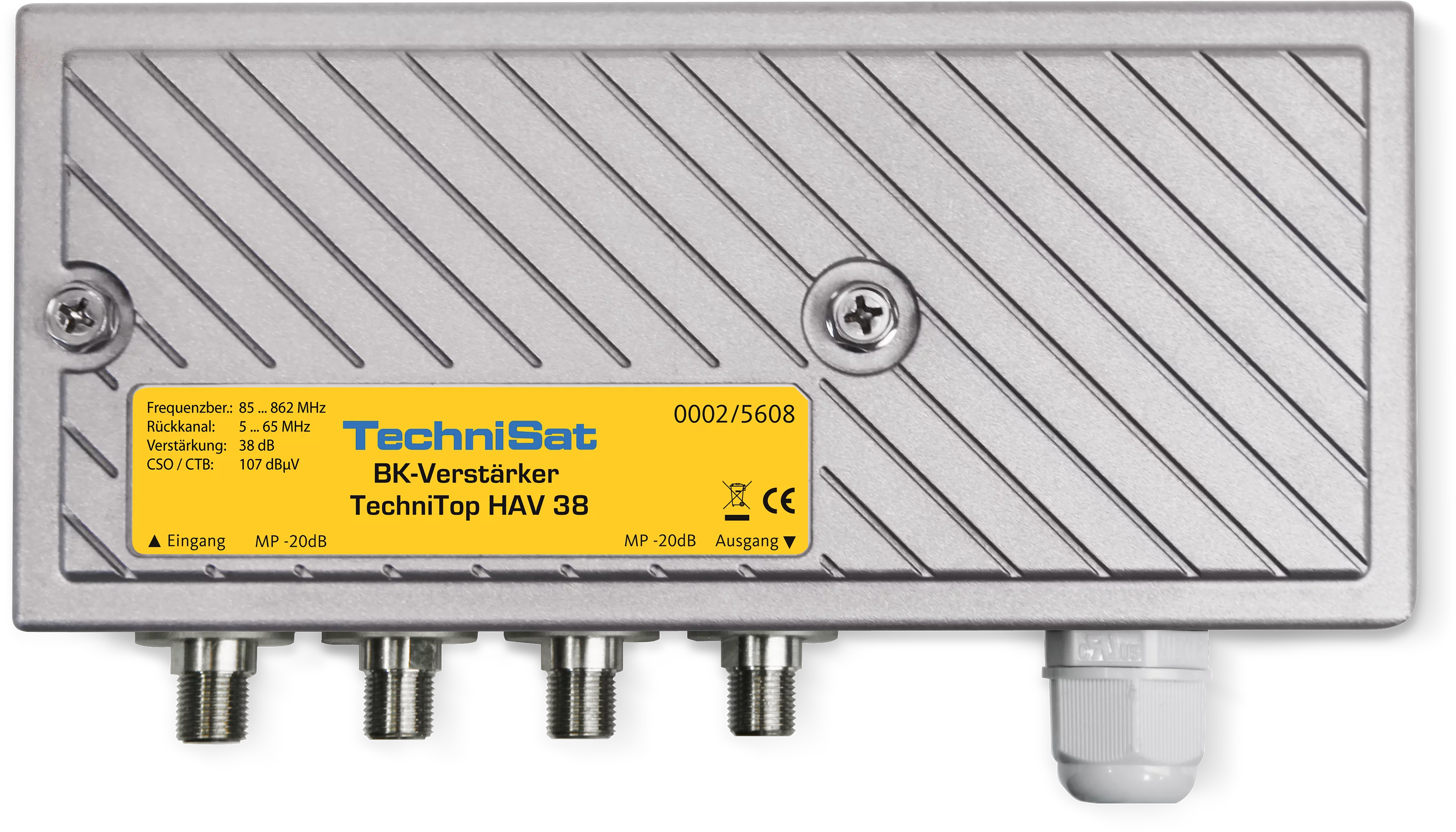

TechniTop HAV 38
CATV amplifier with 38 dB gain and active return path of 5-65 MHz.
| EAN |
Colour |
Item no. |
| 4019588256088 |
silver |
0002/5608 |
| General characteristics |
| Top features: shielding class A according to EN 500083-2 |
| Top features: in the alu- diecast housing (Protection class IP54) |
| Top features: with measurement jacks at in- and output (-20dB) |
| Top features: ajustable attenuation and equalization |
| Top features: developed according to KDG1- classfication TS 140 |
| Output level |
| Standard IMA UHF: 111 dB |
| Standard IMA UHF: 111 dB |
| IMA DIN 45004B VHF: 102 dB |
| IMA DIN 45004B UHF: 102 dB |
| Power requirement |
| Power input: 10 W |
| Power supply |
| Mains adapter: internal |
| Nominal voltage: 115 / 230 V ~ |
| Frequency: 47 ... 63 Hz |
| Range of adjustment |
| Attenuator: 15 dB |
| Equaliser: 15 dB |
| Technical data |
| Frequency range: 85 ... 862 MHz |
| Frequency range return path: 5 ... 65 MHz |
| Amplification: 38 dB |
| CSO / CTB: 107 |
| Noise factor: ≤ 5,5 dB |
| Shielding factor: ≥ 80 dB EN 50083-2 (Class A) |
| Output + input measuring points: -20 dB (± 2,5) |
| Protection class: IP 54 |
| Connector type: F female |
| Impedance: 75 Ω |
| Return loss: ≥ 18 dB (-1,5 dB/Okt.) |
| Interstage attenuator: 6 dB |
| Scope of Delivery |
| TechniTop HAV 38, manual |
