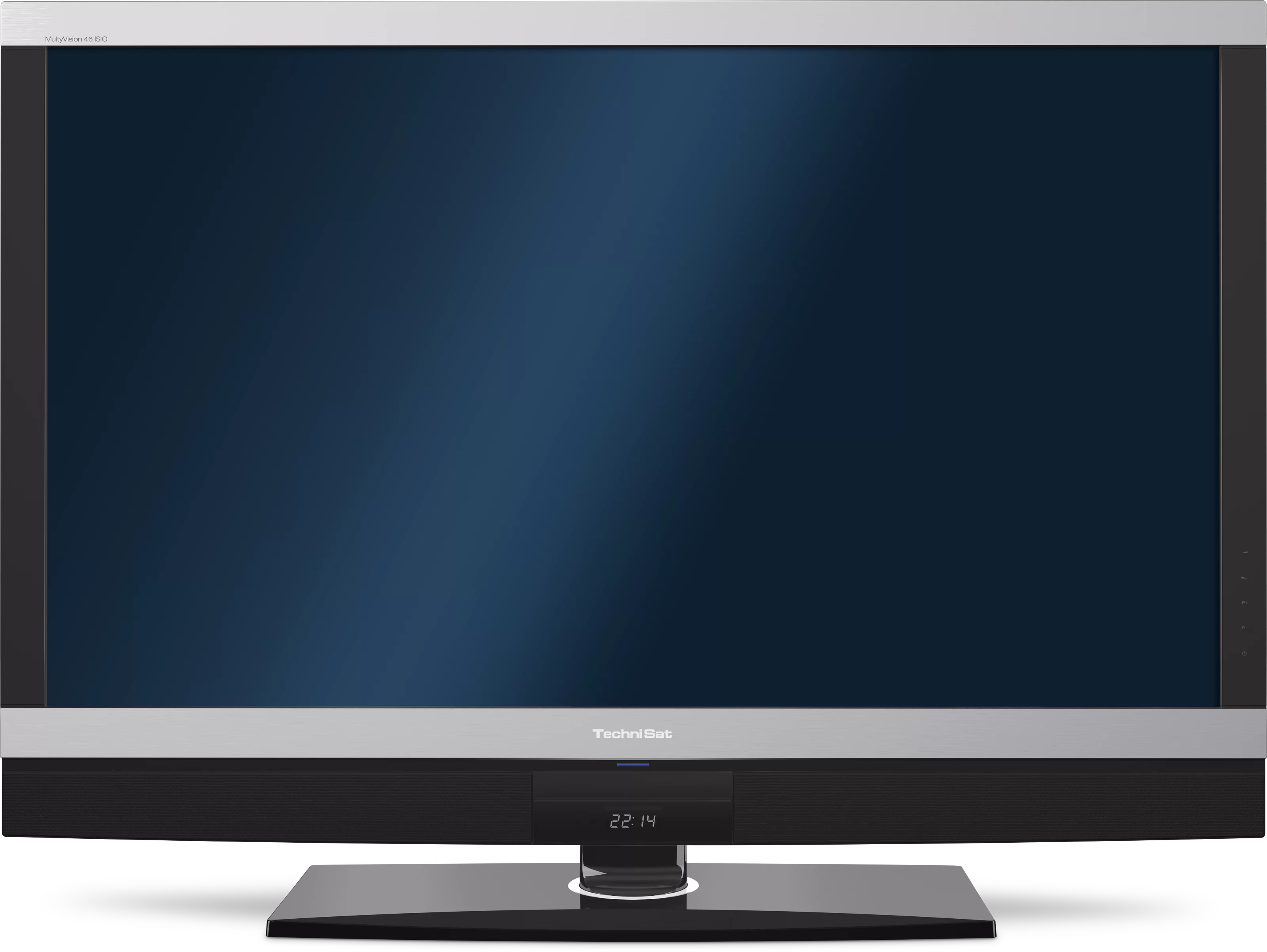

MultyVision 46 ISIO
Full-HD eLED Digital Television with Dual HDTV multituner for reception of analogue and digital TV. Integrated IP module for access to internet content and DVR for recording of HD and standard TV as well as radio programmes.
| Hard drive | Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|---|
| 1.000 GigaByte | 19,5 kg | 4019588846067 | silver | 5846/0306 | 34 kg | 25 kg | 1.090 x 713 x 61 mm | 109 x 76,5 x 22 cm | 125 x 100 x 30 cm |
| 1.000 GigaByte | 19,5 kg | 4019588846166 | titanium | 5846/0316 | 34 kg | 25 kg | 1.090 x 713 x 61 mm | 109 x 76,5 x 22 cm | 125 x 100 x 30 cm |
| Top Features |
|---|
|
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Ambient operating conditions |
|---|
| Humidity: 10 - 75 % |
| Ambient temperature: 5 - 35 °C |
| LNB control |
|---|
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| Band switch: 22 kHz |
| DiSEqC: DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Current consumption: 400 mA max. kurzschlussfest 400 mA |
| Horizontal: <20 V without load, > 17.2 V at 400 mA / LNB shut-off standby mode V |
| Internet/Network |
|---|
| HbbTV: Yes |
| Audio |
|---|
| Speakers: 2 x broadband speakers with bass reflex |
| AC3 Dolby Digital bitstream out: Yes |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (in): 3 (davon 1 x HDMI Mini Front) |
| HDMI™ (out): 1 |
| Smartcard reader: Yes (Conax) |
| Digital electric audio output (S/PDIF): Yes (Adapter) |
| Digital optical audio out: Yes (Toslink) |
| Digital audio in (S/PDIF): Yes (Adapter) |
| Audio out analogue (RCA): Yes (3.5mm Klinke) |
| AV input: Yes (Front) |
| Audio in/AUX in: Yes (3.5mm Klinke) |
| VGA: Yes |
| YUV (component input): Yes (Adapter) |
| Scart: 1 (Adapter) |
| Ethernet 10/100 (RJ-45): Yes (RJ-45) |
| F socket: 2 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set depth without stand: 61 mm |
| Set width without stand: 1.090 mm |
| Set height without stand: 713 mm |
| Weight without stand: 19,5 kg |
| Display |
|---|
| Size (cm): 117 cm |
| Frequency: 200 Hz |
| Format: 16:9 |
| Contrast ratio: 5.000:1 |
| Brightness: 450 cd/m² |
| Picture in Picture (PIP): Yes (2 x HD, 2 x SD, 1 x SD u. 1 x HD) |
| Response time: 6 ms |
| Angle of view: 178° / 178° |
| Picture and Picture (PAP): Yes (2xHD; 2xSD; 1xSD u. 1xHD) |
| Freeze frame: Yes |
| Zoom: Yes |
| Type: Full-HD eLED |
| Size (inches): 46 |
| SD: Yes |
| 720p: Yes |
| HD: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| 1080i: Yes |
| General characteristics |
|---|
| Hard drive: 1.000 GigaByte |
| Appearance: Slim 55mm |
| Handling/comfort |
|---|
| Sleep timer: Yes |
| Alarm: Yes |
| Clock: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Integrated LED clock: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: German, Turkish, Spanish, Hungarian, Czech, English, Swedish, Italian, French, Russian, Portuguese, Greek, Dutch, Polish |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 37 W |
| Software update: 36 W |
| Energy class: B |
| Standby fast start: 32 W |
| Standby LED: 0,46 W |
| In operation: 121 W |
| annual energy consumption when switched on: 168 kilowatt hour per annum |
| Off status: 0 W |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Mains adapter: internal |
| Frequency: 50 Hz |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, VC-1, Theora |
| Video-Formats: MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, Xvid, AVI |
| Picture-Formats: BMP, JPEG, GIF, PNG, TIFF |
| Audio-Formats: AAC, MP3, FLAC, MP2, OGG |
| Tuner |
|---|
| DVB-S tuner: 2 |
| DVB-C Tuner: 2 |
| DVB-T Tuner: 2 |
| Analogue UHF/VHF/CATV tuner: 2 |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNIROUTER ready: Yes |
| TECHNISELECT K: Yes |
| Tuner - Analogue |
|---|
| Reception range: 47 ... 862 MHz |
| Video standards: B/G stereo, D/K mono, L/L, I |
| Tuner - Cable |
|---|
| Symbol rate: 1,7 ... 7 |
| Reception range: 51 ... 858 MHz |
| FEC: Reed-Solomon |
| Demodulation: 16 / 32 / 64 / 128 / 256 QAM |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 1 ... 45 |
| DVB-S2: 10 ... 31 |
| DVB-S2: QPSK - 8PSK |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| FEC: Viterbi and Reed-Solomon |
| Tuner - Terrestrial |
|---|
| Transmission mode: 2k/8k |
| Voltage supply: 5 V |
| Power supply: 0,03 A |
| Reception range 2: 470 ... 860 MHz |
| Demodulation: COFDM |
| Reception range 1: 174 ... 230 MHz |
| Bitrate: 4 ... 32 |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 400 x 400 |
| Scope of Delivery |
|---|
| MultyVision ISIO, Pedestal, Power cable, remote control TechniControl Plus incl. batteries, Remoty Plus, Multi audio/video adapter, Cleaning set, Instruction manual |
Test Results MultyVision 46 ISIO
Testergebnis: gut | Note: 2,28
AudioVideoFoto (01/2012)
Testurteil: sehr gut
video HomeVision (12/2011)
