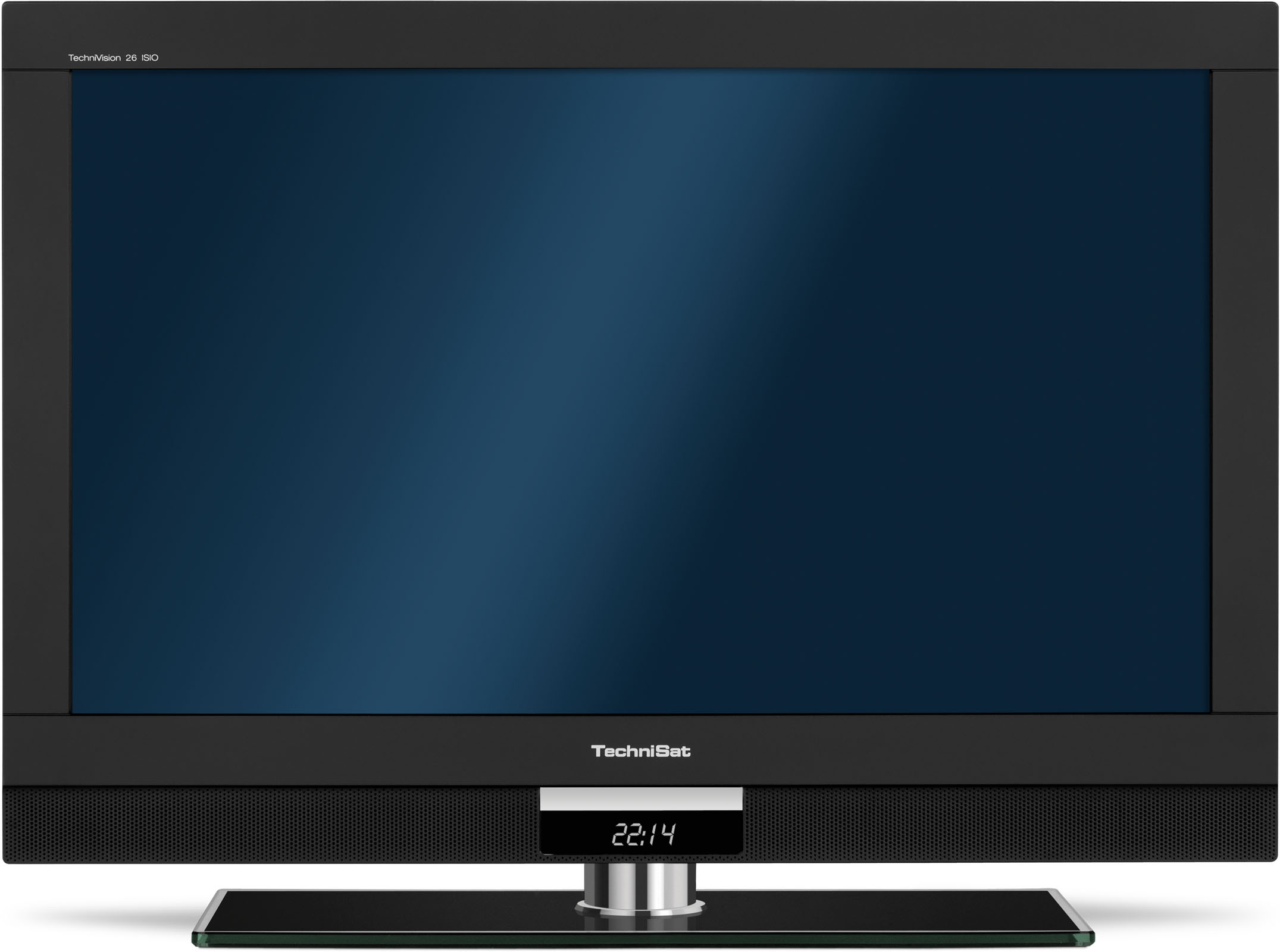

TECHNIVISION 26 ISIO
Full-HD Smart-TV with QuattroTuner for receiving digital television and radio including HDTV, integrated IP module for Full-Internet and USB Recording function on an external hard disk drive.
| Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 6,4 kg | 4019588267268 | black | 5026/7626 | 10,5 kg | 8,5 kg | 649 x 438 x 48 mm | 64,9 x 47,7 x 20,4 cm | 72,5 x 57,5 x 25 cm |
| 6,4 kg | 4019588267060 | silver/black | 5026/7606 | 10,5 kg | 8,5 kg | 649 x 438 x 48 mm | 64,9 x 47,7 x 20,4 cm | 72,5 x 57,5 x 25 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 / Sat-CR |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HTML 5 support: Yes |
| HbbTV: Yes |
| Audio |
|---|
| Speakers: integrated broadband speaker system |
| AC3 Dolby Digital bitstream out: Yes |
| Connections |
|---|
| HDMI™ (in): 2 |
| Common Interface Plus (CI+): Yes |
| Digital electric audio output (S/PDIF): Yes |
| Audio in/AUX in: Yes 3.5mm Klinke |
| VGA: Yes |
| YUV (component input): Yes |
| Scart: 1 |
| S Video: Yes |
| Video IN: 1 |
| Ethernet 10/100 (RJ-45): Yes |
| F socket: 1 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set depth without stand: 48 mm |
| Set width without stand: 649 mm |
| Set height without stand: 439 mm |
| Weight without stand: 6,4 kg |
| Display |
|---|
| Size (cm): 66 cm |
| Frequency: 50 Hz |
| Format: 16:9 |
| Contrast ratio: 1.000:1 |
| Brightness: 350 cd/m² |
| Response time: 8 ms |
| Angle of view: 178° / 178° |
| Freeze frame: Yes |
| 1080i: Yes |
| 720p: Yes |
| HD: Yes |
| SD: Yes |
| Size (inches): 26 |
| Resolution (vertical and horizontal): 1920 x 1080 |
| Type: Full-HD eLED |
| Handling/comfort |
|---|
| Clock: Yes |
| Alarm: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Integrated LED clock: Yes |
| Radio mode: Yes |
| Alarm function: Yes |
| Sleep timer: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| Software update: 26 W |
| Energy class: B |
| Standby fast start: 21 W |
| Standby LED: 0,6 W |
| In operation: 42 W |
| annual energy consumption when switched on: 58 kilowatt hour per annum |
| Power switch: Yes |
| Contains no mercury: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, H.264, DivX, VC-1 |
| Video-Formats: MKV, MP4, MOV, MPG, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF |
| JPEG: Yes |
| Audio-Formats: AAC, MP3, MP2, DDAC3 |
| Tuner |
|---|
| Tuner type: HDTV-Multituner |
| DVB-S tuner: 1 |
| DVB-C Tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNISELECT K: Yes |
| TECHNIROUTER ready: Yes |
| Tuner - Analogue |
|---|
| Reception range: 48,25 ... 855,25 MHz |
| Video standards: PAL B/G, D/K, L/L, I |
| Tuner - Cable |
|---|
| Reception range: 47 ... 862 MHz |
| Demodulation: 16-, 32-, 64-, 128-, 256-QAM |
| Symbol rate: 1,5 ... 7 |
| FEC: Reed-Solomon (204, 188) |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 (MCPC / SCPC) |
| DVB-S2: 8PSK - QPSK |
| DVB-S2: 10 ... 31 (MCPC / SCPC) |
| FEC: RS, LDPC, BCH |
| Tuner - Terrestrial |
|---|
| Reception range 1: 174 ... 230 MHz |
| Reception range 2: 470 ... 860 MHz |
| Demodulation: COFDM |
| Transmission mode: 2k/8k |
| Bitrate: 4,35 ... 31,67 |
| FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 |
| Voltage supply: 5 V |
| Power supply: 0,05 A |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 100 x 100 |
| Scope of Delivery |
|---|
| TechniVision ISIO, glass pedestal (swivel), 230V power cord, remote control with batteries TechniControl, User Manual, Quick Start Guide |
