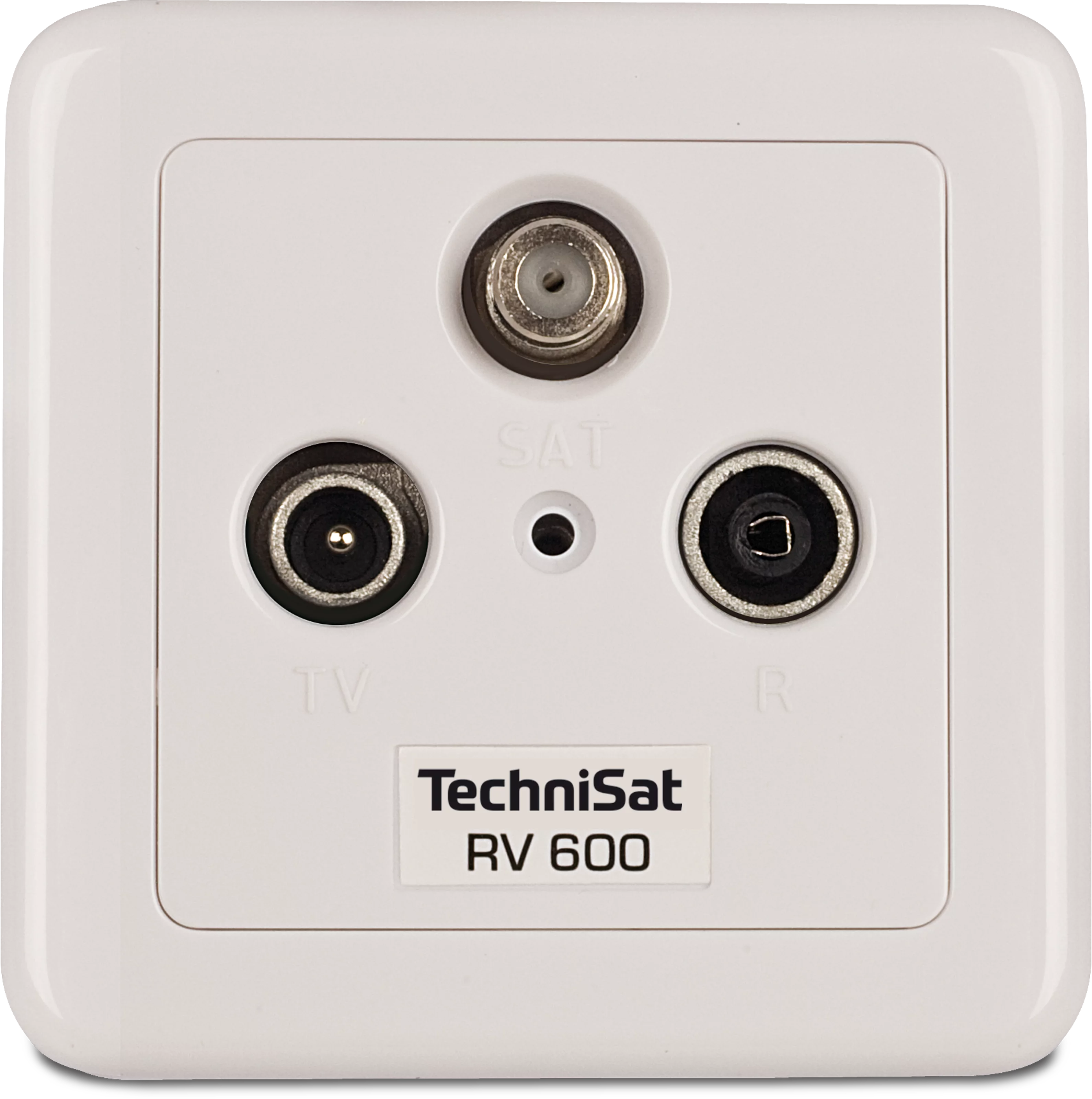

TECHNIPRO RV 600-10
Sat-transfer socket with10 dB insertion loss for loop through-systems in one cable solutions -forflush mounting with frame and cover
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588031807 |
white |
0000/3180 |
100 g |
100 g |
7,8 x 7,5 x 4 cm |
8 x 8 x 5 cm |
| Top Features |
- High-quality through socket with 10 dB tap attenuation
- 3-socket antenna outlet: SAT (F-socket), TV / cable television (IEC plug), Radio (IEC socket)
- Suitable for Unicable satellite systems / loop-through systems in single-cable installations with TechniRouter systems and TechniSelect 12
- Surface-mounted version with frame and cover
|
| Connector type |
| Radio: IEC connector (f) |
| TV: IEC connector (m) |
| SAT: F-socket |
| frequency range |
| Radio: 5 ... 139 MHz |
| SAT: 950 ... 2.150 MHz |
| TV: 5 ... 860 MHz |
| Shielding factor |
| 47 - 300 MHz: 75 dB |
| 300 - 470 MHz: 75 dB |
| 470 - 950 MHz: 65 dB |
| 950 - 2150 MHz: 55 dB |
| Tap loss |
| Radio: typ. 17 dB |
| SAT: typ. 10 dB |
| TV: typ. 14 dB |
| Transmission loss |
| VHF: typ. 2 dB |
| UHF: typ. 2,5 dB |
| Sat: typ 3,5 dB |
| Scope of Delivery |
| TechniPro RV 600-10, housing for surface mounting, cover |
