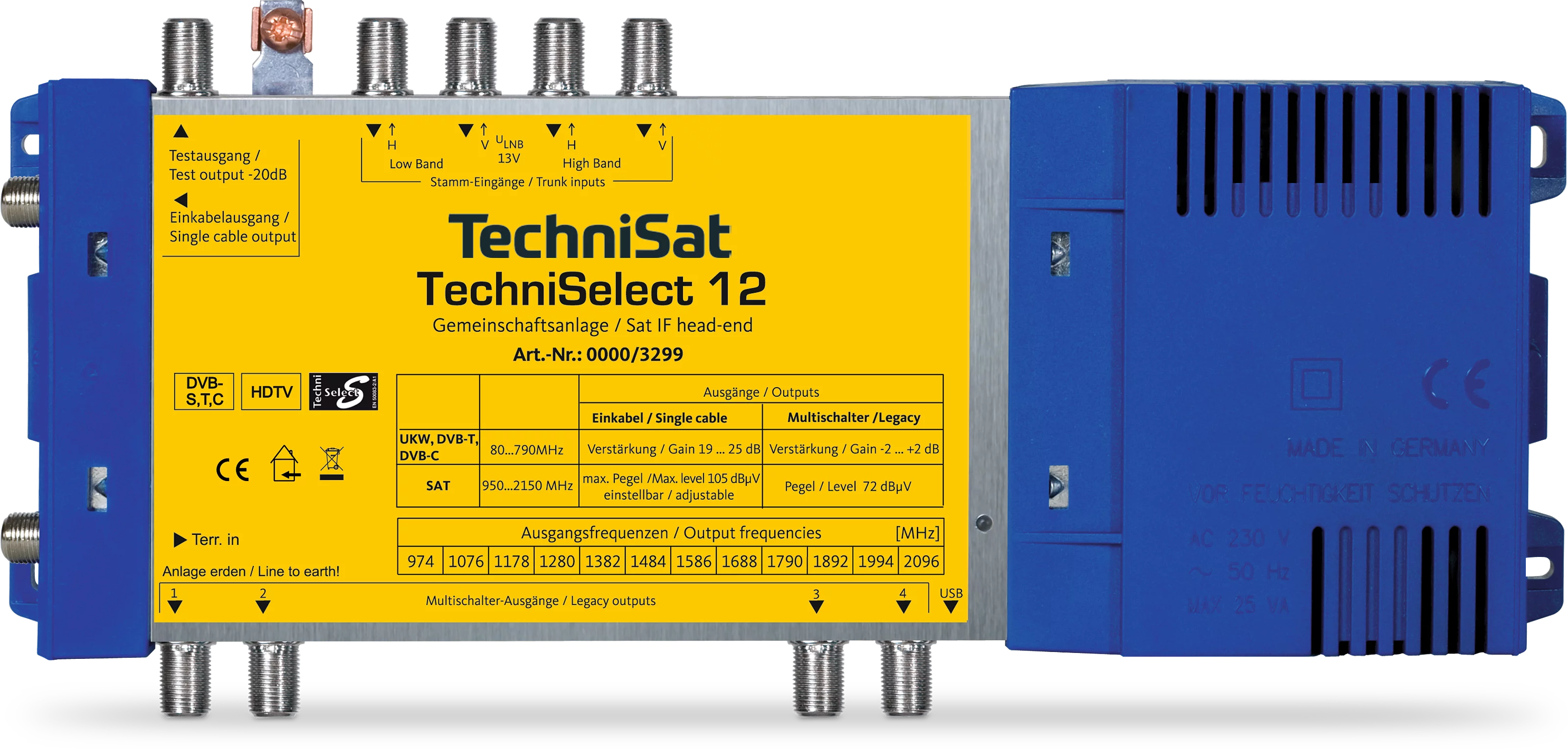

TECHNISELECT 12
For feeding 12 selectable satellite transponders into a single cable distribution system
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588032996 | blue/yellow | 0000/3299 | 800 g | 500 g | 29,2 x 11,2 x 3,1 cm | 31,8 x 20 x 4,5 cm |
| LNB control |
|---|
| Current consumption: max. 400 mA (für LNB und / oder Verstärker) |
| Vertical: 13 V über VL |
| Ambient operating conditions |
|---|
| Humidity: 10 ... 75 % |
| Ambient temperature: -25 ... 55 °C |
| Decoupling |
|---|
| Trunks: 30 dB |
| General characteristics |
|---|
| Top features: Einspeisung von digitalen Sat-Signalen in vorhandene Kabelstrukturen |
| Top features: Eingang zum Empfang von Terrestrischen Signalen |
| Top features: 4 vollwertige Receiverausgänge oder Sat-Stämme |
| Top features: Messausgang -20 dB |
| Top features: Stromsparfunktion |
| Power consumption |
|---|
| In operation: 11 W (inkl. LNB) |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Mains adapter: internal |
| Frequency: 50 Hz |
| Reception range |
|---|
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 80 ... 790 MHz |
| Single-cable output |
|---|
| Output frequency: 80 ... 2.150 MHz |
| Number of output channels: 12 |
| Frequency of the output channels: 974, 1076, 1178, 1280, 1382, 1484, 1586, 1688, 1790, 1892, 1994, 2096 MHz |
| Frequency SAT: 950 ... 2.150 MHz |
| Frequency DVB-T: 80 ... 790 MHz |
| Output level: max. 105 |
| Output level: 12 ... 20 dB (Einstellbare Verstärkung) |
| Technical data |
|---|
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Number of cable connections: 1 |
| Subscribers per cable: über 50 |
| Transmission loss |
|---|
| Terrestrial: -20 ... -12 dB (Einstellbare Verstärkung) |
| Scope of Delivery |
|---|
| TechniSelect 12, manual, CD-ROM with TechniSelect Configuration Tool, USB-cable |
