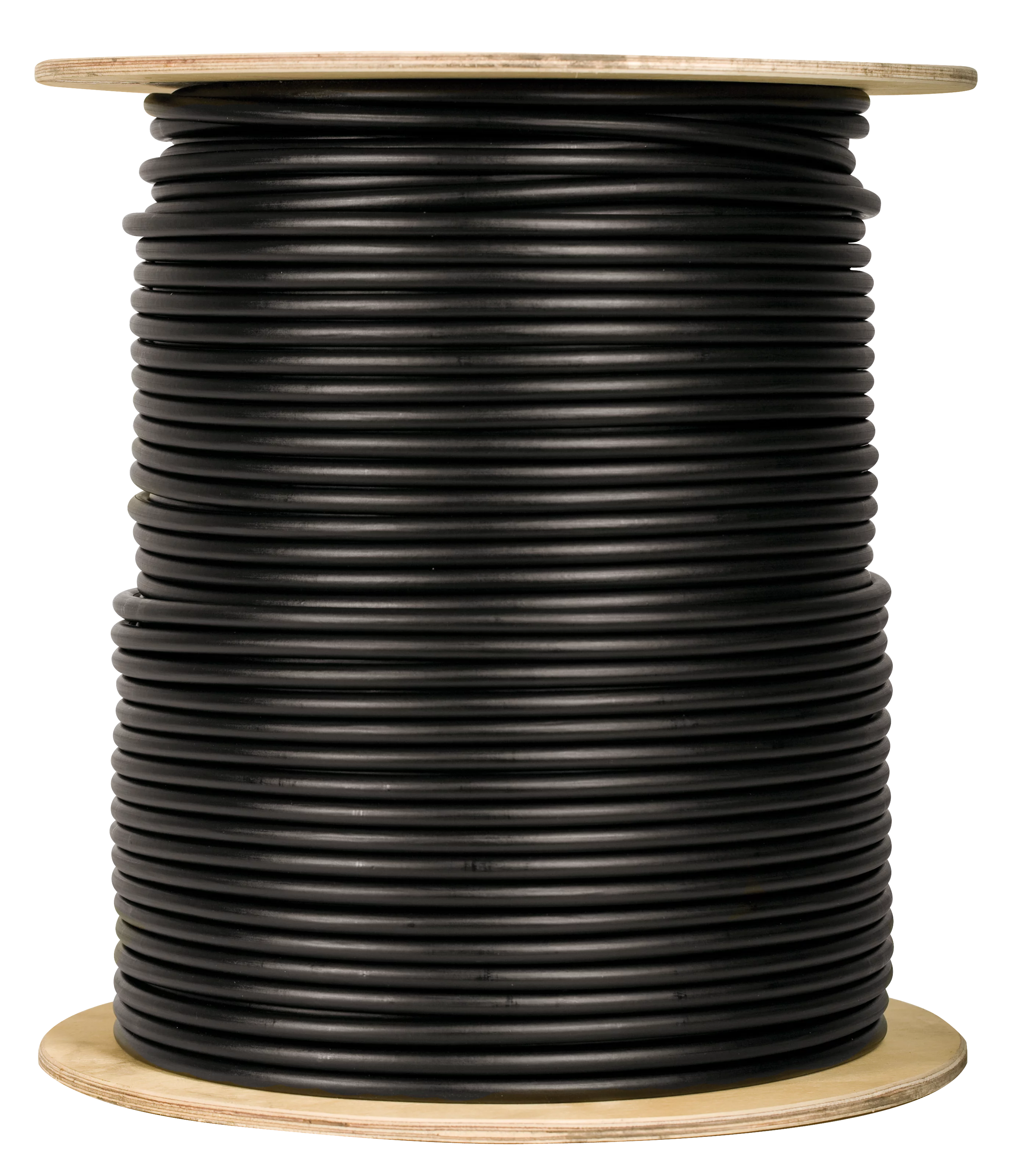

Buried Cable COAX 10
High-end 3-way shielded RG11 buried coaxial cable , 100 dB screening
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588230163 | black | 0025/3016 | 27,5 kg | 27,5 kg | ||
| 4019588530164 | black | 0050/3016 | 55 kg | 55 kg | ||
| 4019588130166 | black | 0010/3016 | 9,53 kg | 8,5 kg | 42 x 42 x 15 cm | 55 x 45 x 40 cm |
| Attenuation |
|---|
| 100 MHz: 4,1 |
| 200 MHz: 6,9 |
| 450 MHz: 9,6 |
| 800 MHz: 12,6 |
| 1000 MHz: 14,8 |
| 1350 MHz: 18,3 |
| 1750 MHz: 21,1 |
| 2050 MHz: 23,9 |
| 2250 MHz: 26,1 |
| Return loss |
|---|
| 65 - 470 MHz: ≥ 23 dB |
| 470 - 1800 MHz: ≥ 21 dB |
| 1800 - 2450MHz: ≥ 20 dB |
| Technical data |
|---|
| Frequency range: 5 ... 2.600 MHz |
| Impedance: 75 Ω (± 3) |
| Inner cable diameter: 1,6 mm |
| Inner cable material: Copper bare |
| Isolation: Zell-PE |
| Diameter dielectric: 7,3 mm (± 0,1) |
| Outer cable: 1 x Alum. foil + 1 x tinned copper braiding 25 x 5 x 0.172 mm + 1 x Alum. foil |
| Sheath: PE, black |
| Diameter with coating: 10,3 mm (± 2) |
| Bending radius: ≥ 110 mm |
| Coupling resistance: ≤ 3 @ 5 MHz |
| Capacity: 55 pF |
| Shrinkage factor: 0,81 |
| Shielding factor: ≥ 100 dB ≙ Klasse A |
| Transfer impedance |
|---|
| 5MHz: ≤ 3 |
| 30 MHz: ≤ 0,1 |
