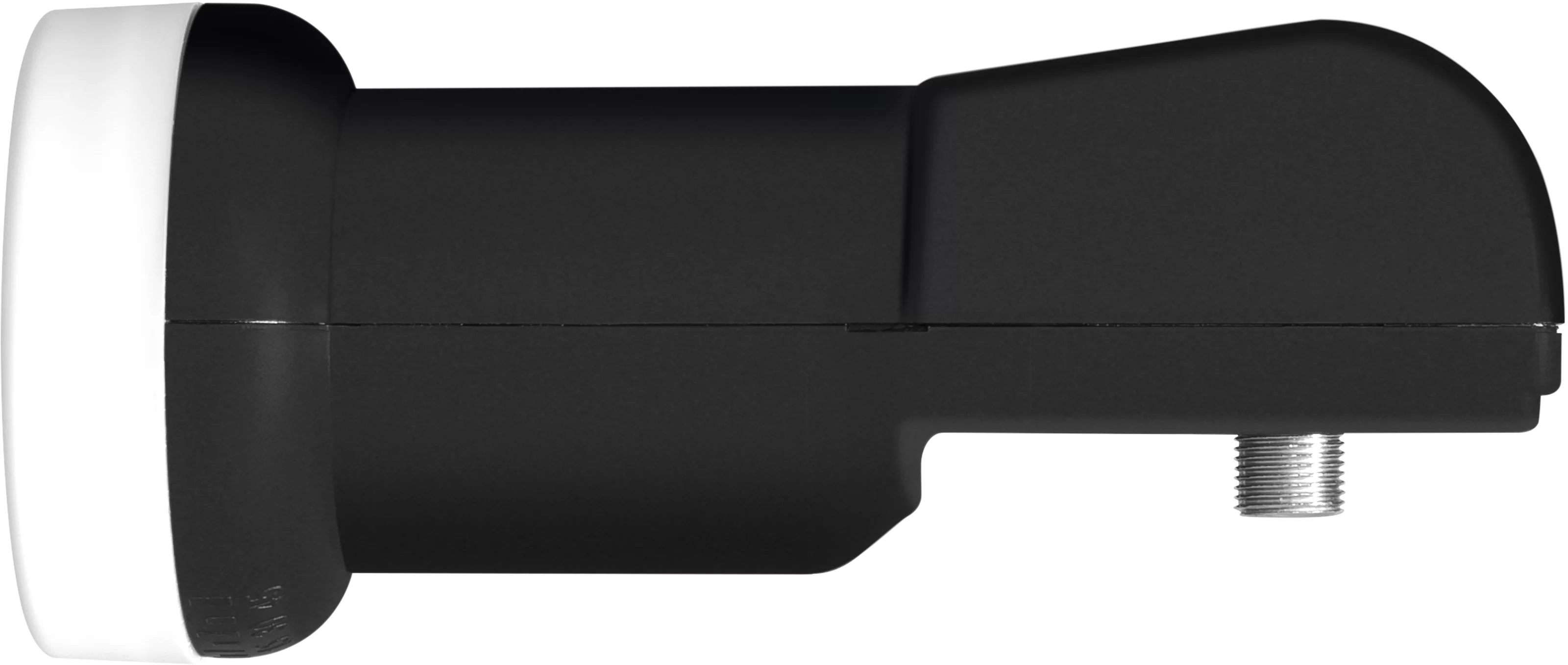

Universal-V/H-LNB

Local oscillator
Low band: 9,75 GHz ± 3MHz
High band: 10,6 GHz ± 3MHz

LNB control
Vertical: 12 ... 14,5 V
Horizontal: 16 ... 20 V

Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 - 11,7 GHz
High band: 11,7 - 12,75 GHz

Noise factor
Lower frequency range: 0,7 dB max.
Upper frequency range: 0,7 dB max.

Output frequency range
Low band: 950 - 1.950 MHz
High band: 1.100 - 2.150 MHz

Power supply
LNB voltage supply: 12 ... 20 V
Power consumption: max. 150 mA

Prepared for
Number of clients: 1
Number of orbit positions: 1

Technical data
Outputs: 1
Feed reception: 40 mm
Impedance: 75 Ω
Connector type: F female
