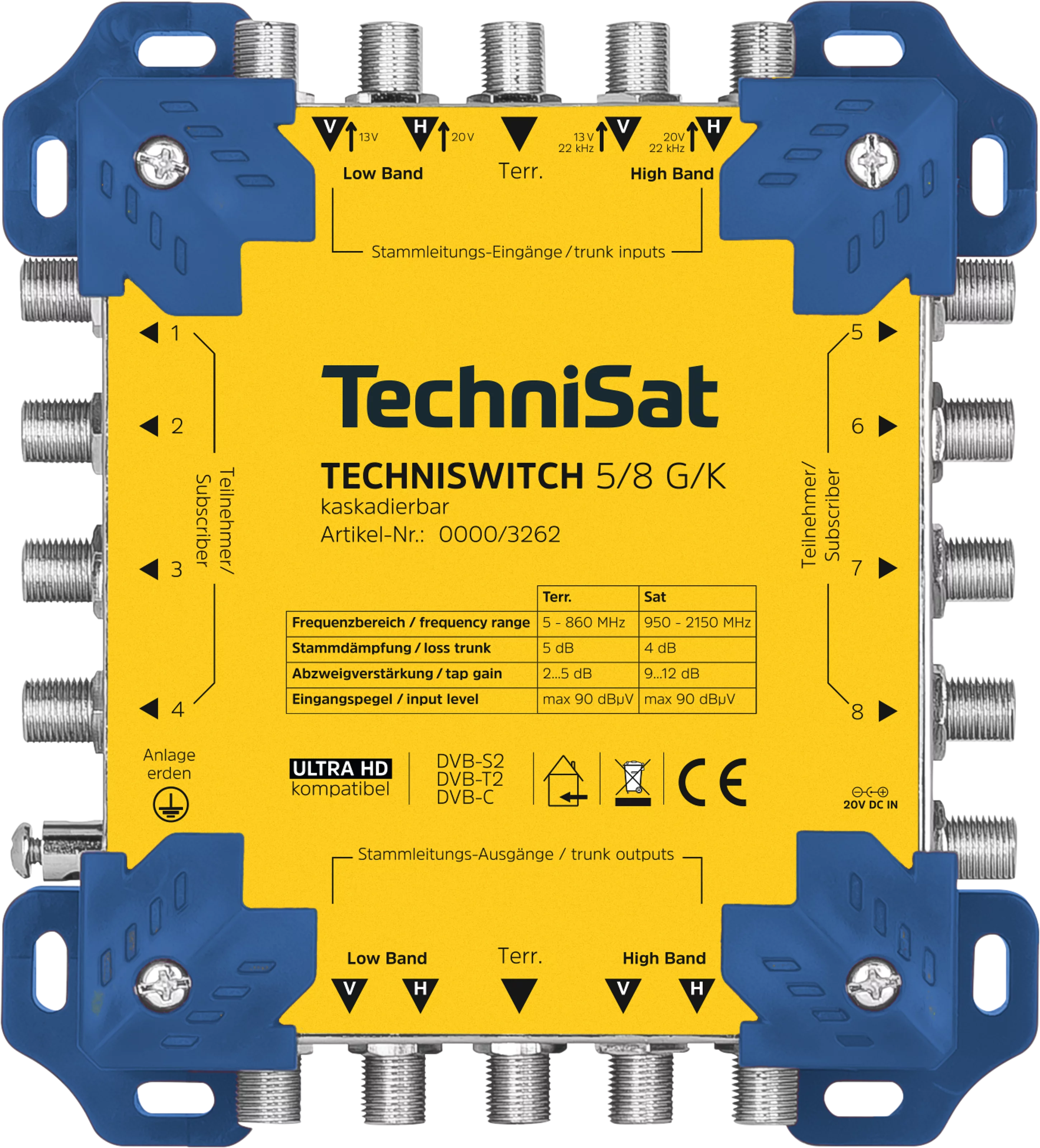

TECHNISWITCH 5/8 G/K
Grundeinheit / Kaskade
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032620 |
blue/yellow |
0000/3262 |
709 g |
373 g |
13,5 x 14,5 x 4 cm |
26,5 x 5 x 16,5 cm |
| Top Features |
- To distribute a satellite position
- Up to 24 participants can be cascaded
- For connecting a Quattro LNB
- With integrated amplifier for satellite and terrestrial reception
- For distributing 4 satellite levels and terrestrial signals to 8, 16 and 24 participants
- Independent selection of horizontal/vertical, low/high from each receiver
- Switching is performed via the coaxial cable with 14/18 V and 0/22 kHz signal frequency.
- Low power consumption (each individual multiswitch branch is powered by the connected receiver and switched off when the receiver is switched off)
|
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: 9 ... 12 dB |
| Terrestrial: 2 ... 5 dB |
| Decoupling |
| Output: > 30 dB |
| Trunks: > 30 dB |
| Power supply |
| Mains adapter: *Unnamed (Identifier: netzteil_extern) |
| Frequency: 50 / 60 Hz |
| Nominal voltage: 100 - 240 V |
| Effective output: DC 20V/1,2A, 24 W |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Outputs: 8 Teilnehmer |
| Transmission loss |
| Sat: 4 dB |
| Terrestrial: 5 dB |
| Scope of Delivery |
| TechniSwitch 5/8 G/K, power supply unit, operating instructions |
