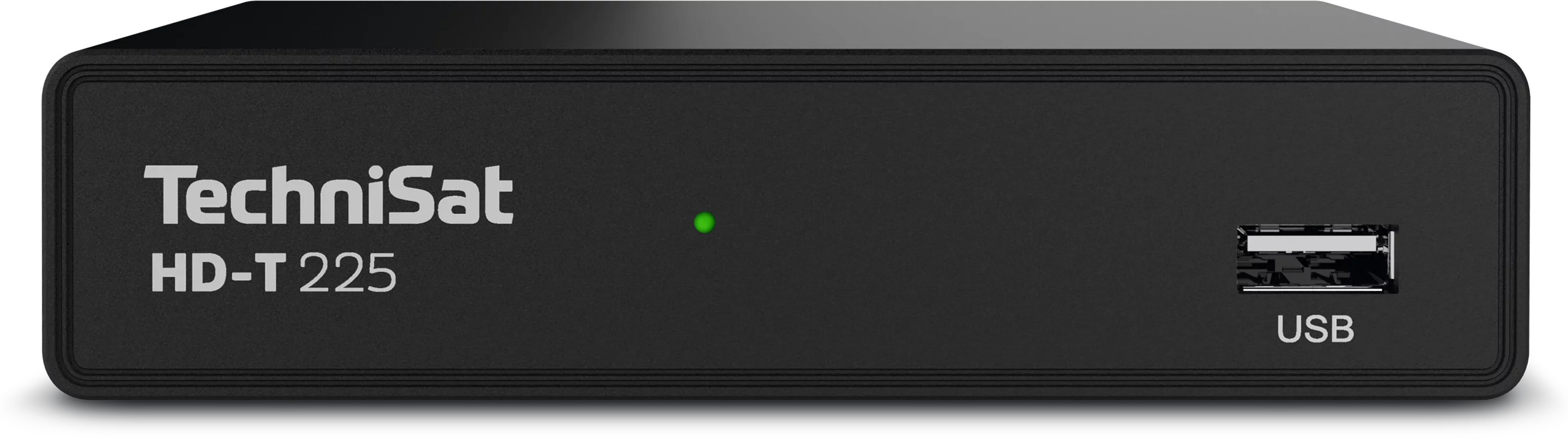

HD-T 225

HD-T 225

DVB-T2 HD Receiver
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
Schwarz 4019588048409 0000/4840 427 g 112 g 12 x 3 x 8 cm 19,7 x 6 x 11,2 cm
Top Features
  • The digital DVB-T2 HD receiver receives unencrypted TV programmes via antenna using modern HEVC H265 technology. Its compact size allows for flexible placement in the living room, bedroom or kitchen.
  • With HDMI and SCART, the receiver is suitable for both modern and older TV sets. Thanks to its 12V power supply, the lightweight box is also ideal for mobile use in motorhomes or when camping.
  • Timeshift: After connecting an external USB storage device, you can manually pause a programme that is currently being broadcast and continue watching it at a later time. Recording and saving programmes is not supported.
  • USB media player: Videos, music and images stored on a hard drive or stick connected to the receiver can be easily played back using the box's integrated media player.
sonstiges
bf_filter_empfangsart: DVB-T2
Connections
HDMI™ (out): 1
USB: 1 (USB 2.0)
Scart: 1
IEC-Connector: Yes (IEC 60169-2, Female, 75Ohm nominal)
DC IN: 1
Decoder
Video decoder: HEVC/H.265: Main Profile@4.1 and Main10 Profile@L4.1; H.264: BP/MP&HP@L3/L4.1/L4.2; MPEG2: MP@ML/HL; MPEG4: SP@L0-3, ASP@L0-5;
Audio decoder: MPEG 1/2 Layer I/II/III, MPEG 2/4 LC-AAC, MPEG-4 HE-AAC@Level 4, Dolby Digital AC-3, Dolby Digital Plus EAC-3
Display
SD: Yes
HD: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
480p: Yes
480i: Yes
Handling/comfort
Electronic Program Guide (EPG): Ja
Teletext: Yes
Other features
OSD languages: German, English
Picture-Formats
Picture-Formats: 576i, 576p, 720p, 1080i, 1080p, 480i, 480p
Power consumption
Standby LED: < 0,3 W
In operation: 4,7 W
Power supply
Mains adapter: external DC 12 V / 1,0 A
Nominal voltage: 230 V
Frequency: 50 Hz
Tuner
Tuner type: Single-Tuner
Tuner DVB-T2: DVB-T2/HEVC (H.265)
DVB-T Tuner: 1
Reception on: HDTV (H.265, H.264), SD (MPEG-2)
Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: QPSK, 16 QAM, 64QAM, 256QAM
Transmission mode: 1k, 2k, 4k, 8k, 16k, 32k
Scope of Delivery
HD-T 225, remote control incl. batteries, HDMI cable, power supply, manual
