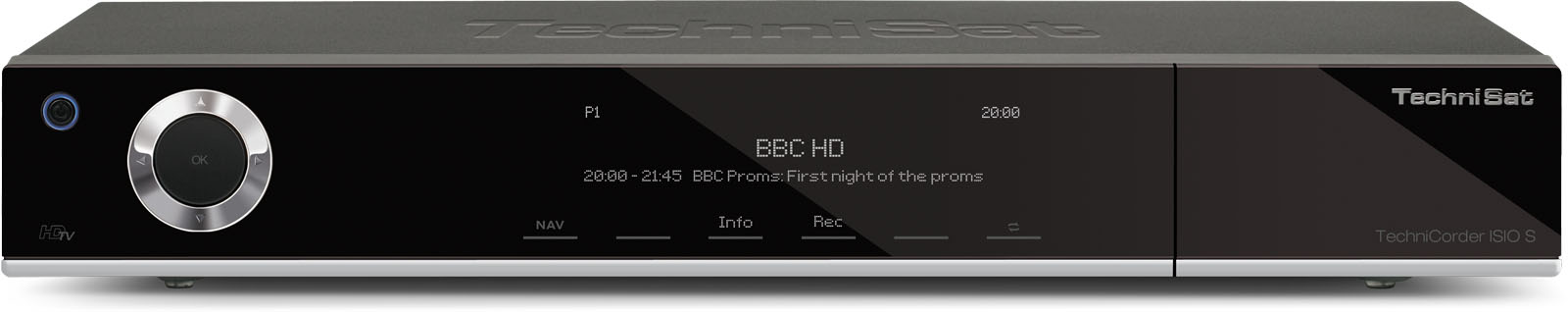

TECHNICORDER ISIO S
Digital HDTV satellite receiver with internet functionality
| EAN | Hard drive | Colour | Item no. | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588167254 | 1000 GB GigaByte | black | 1006/4725 | 3 kg | 435,0 x 60,0 x 199,0 mm | 490,0 x 160,0 x 260,0 mm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| LNB control |
|---|
| Vertical: 14 V |
| Horizontal: 18 V |
| Band switch: 22 kHz |
| Current consumption: max. 400 mA (kurzschlussfest) |
| DiSEqC: 1.0 / 1.2 |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Internet/Network |
|---|
| HbbTV: Yes |
| HTML 5 support: Yes |
| Card reader |
|---|
| SD card: Yes |
| Connections |
|---|
| HDMI™ (out): 1 |
| Digital electric audio output (S/PDIF): Yes |
| Digital optical audio out: Yes |
| YUV (component output): 1 |
| Scart: 1 |
| Video Cinch out: 1 |
| F socket: 2 |
| Decryption system |
|---|
| Conax: Yes |
| CI+: Yes |
| Display |
|---|
| Picture in Picture (PIP): Yes (2 x SD, 1 x SD u. 1 x HD) |
| Freeze frame: Yes |
| Zoom: Yes |
| 576i: Yes |
| 576p: Yes |
| 720p: Yes |
| HD: Yes |
| 1080i: Yes |
| SD: Yes |
| General characteristics |
|---|
| Hard drive: 1.000 GigaByte |
| Handling/comfort |
|---|
| Alarm: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Protected access to hotel mode: Yes |
| Customisable start screen: Yes |
| Lockable volume: Yes |
| Menu locking: Yes |
| Control panel lock: Yes |
| Integrated LED clock: Yes |
| Selectable start source: Yes |
| Selectable start channel: Yes |
| Other features |
|---|
| OSD languages: German, Bulgarian, English, French, Italian, Dutch, Norwegian, Polish, Portuguese, Russian, Slovakian, Swedish, Spanish, Czech |
| Total programme memory: 5.000 |
| Power consumption |
|---|
| Standby fast start: 6,9 W |
| Standby LED: 0,25 W |
| In operation: 13 W |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Supported formats & codecs |
|---|
| Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264, DivX |
| Video-Formats: MKV, MP4, MOV, TS, TS4, VOB, WMV, Xvid, AVI |
| JPEG: Yes |
| Audio-Formats: AAC, MP3, M4A, MP2 |
| TechniSat CONNECT |
|---|
| SFI: Yes |
| Tuner |
|---|
| Tuner type: DigitalSat |
| DVB-S tuner: 2 |
| Single Cable Solution (SatCR): SCR1 = EN50494 |
| Reception on: HDTV (MPEG-4 & 2), SD (MPEG-2) |
| Input impedance: 75 Ω |
| TECHNISELECT 12 ready: Yes |
| TECHNIROUTER ready: Yes |
| Tuner - Sat |
|---|
| Reception range: 950 ... 2.150 MHz |
| DVB-S: 2 ... 45 |
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8, , (autom. Anpassung) |
| DVB-S: QPSK |
| DVB-S2: 8PSK-QPSK |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Scope of Delivery |
|---|
| TechniCorder ISIO S, remote control TechniControl Plus with batteries, Power cable, HDMI cable, Instruction manual |
