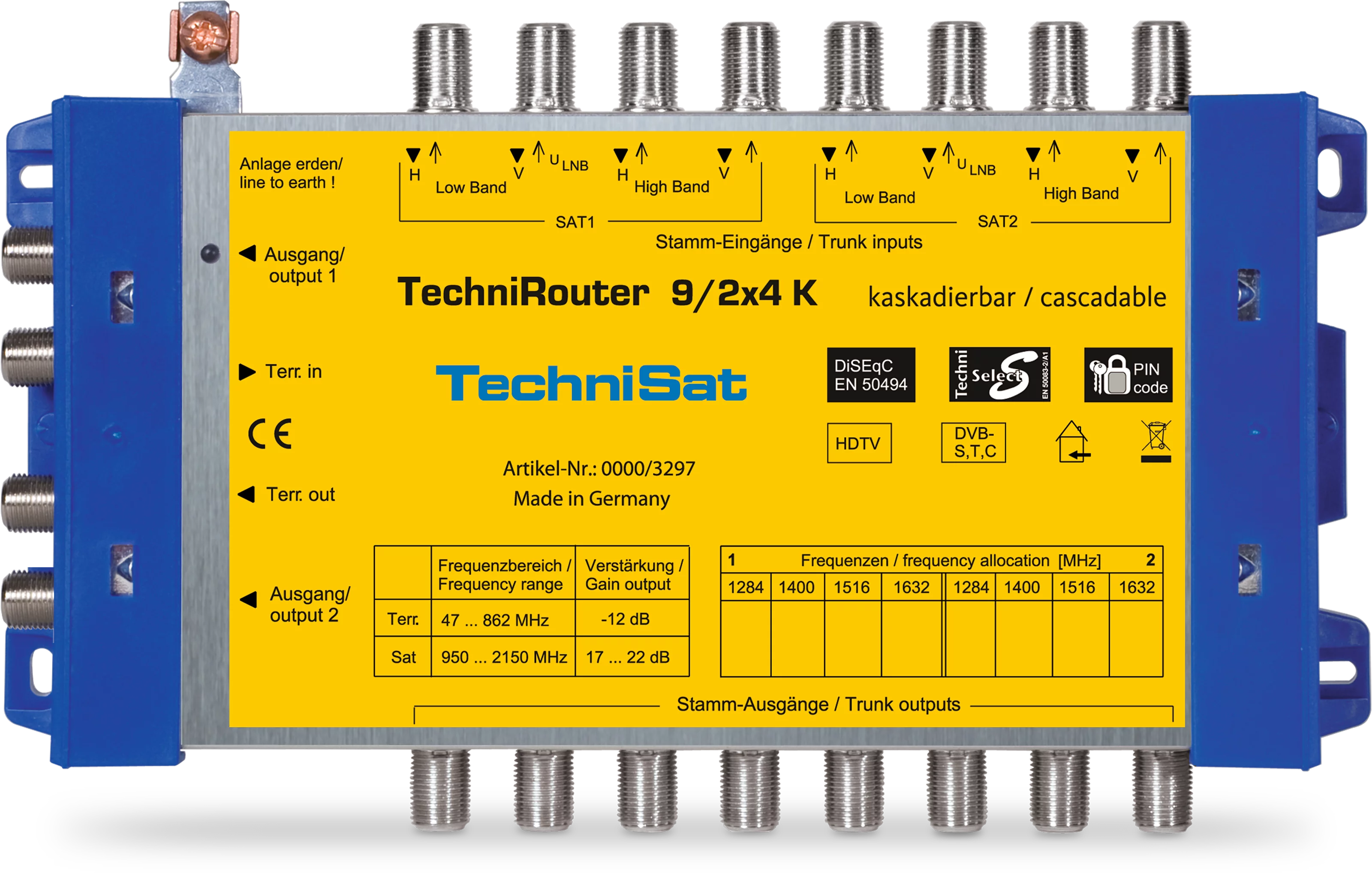

TECHNIROUTER 9/2x4 K
Digital single-cable solution for two orbital positions (with PIN code technology)
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032972 |
blue/yellow |
0000/3297 |
700 g |
400 g |
21,6 x 12,7 x 3,1 cm |
31,3 x 20 x 4,5 cm |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Humidity: 10 ... 75 % |
| Amplification |
| Sat: 17 ... 22 dB |
| Terrestrial: -12 dB |
| General characteristics |
| Top features: Einspeisung von digitalen Sat-Signalen in vorhandene Kabelstrukturen |
| Top features: Keine weitere Kabelverlegung erforderlich |
| Top features: 2 Orbitpositionen ohne Einschränkung mit 2 Quatro-LNB zu empfangen |
| Top features: Eingang zum Empfang von Terrestrischen Signalen |
| Power supply |
| Mains adapter: über Grundeinheit |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Single-cable output |
| Output frequency: 47 ... 2.150 MHz |
| Number of output channels: 2 x 4 |
| Frequency of the output channels: 1284, 1400, 1516, 1632 MHz |
| Frequency SAT: 950 ... 2.150 MHz |
| Frequency DVB-T: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 8 |
| Terrestrial input: 1 |
| Number of cable connections: 2 |
| Subscribers per cable: maximal 4 |
| Transmission loss |
| Sat: 3 ... 5 dB |
| Terrestrial: 2 ... 3 dB |
| Scope of Delivery |
| TechniRouter 9/2x4 K, Instruction manual |
