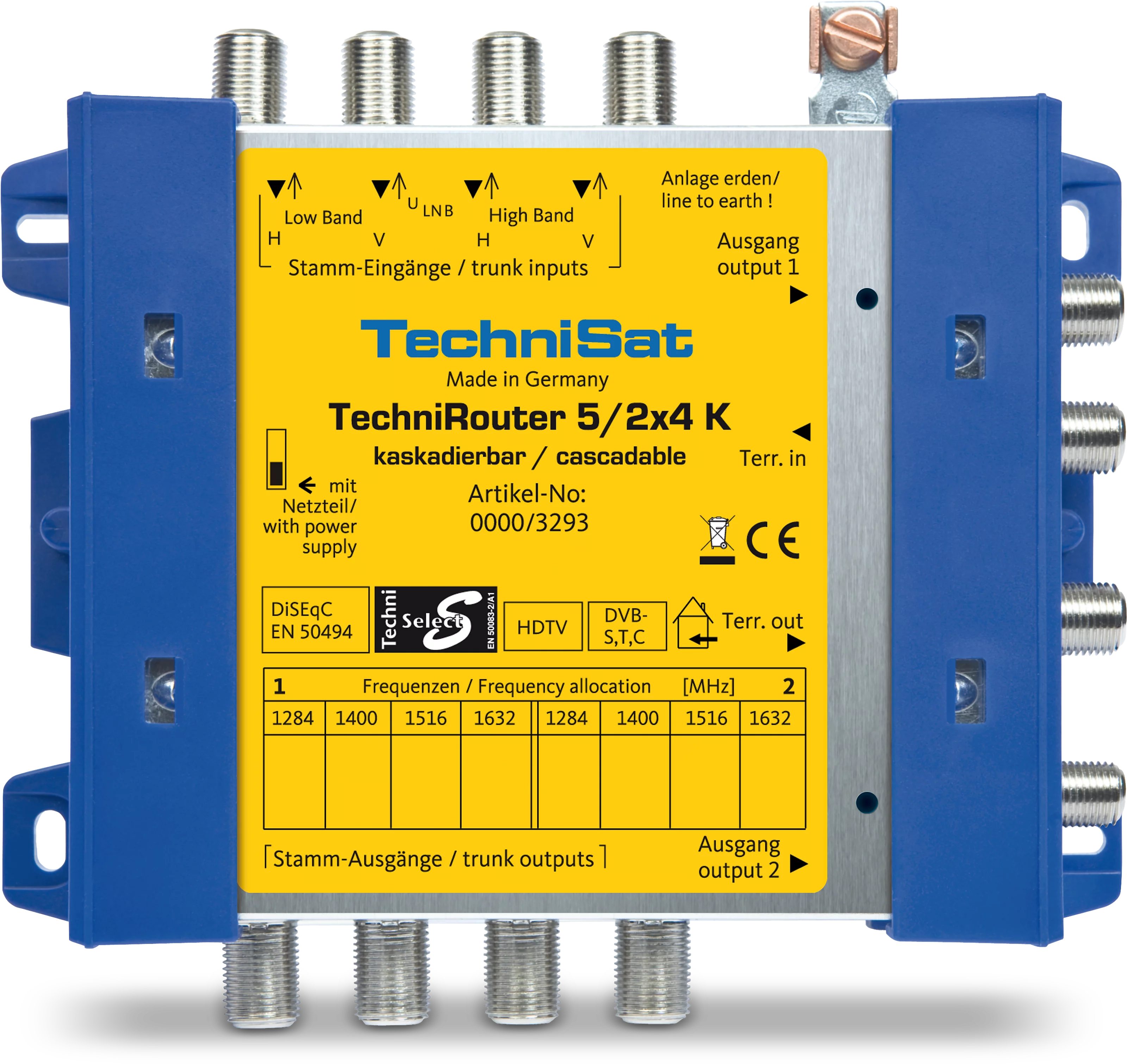

TECHNIROUTER 5/2x4 K
Digital single-cablesolution for the distribution of satellite signals from one orbital position via two cable harnesses for an existing cable structure
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032934 |
blue/yellow |
0000/3293 |
400 g |
300 g |
14 x 13 x 3,2 cm |
24,5 x 13,5 x 5,5 cm |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Humidity: 10 ... 75 % |
| Amplification |
| Sat: 17 ... 22 dB |
| Terrestrial: -12 dB |
| Reception range |
| Terrestrial: 47 ... 862 MHz |
| Sat: 950 ... 2.150 MHz |
| Single-cable output |
| Output frequency: 47 ... 2.150 MHz |
| Number of output channels: 2 x 4 |
| Frequency of the output channels: 1284, 1400, 1516, 1632 MHz |
| Frequency SAT: 950 ... 2.150 MHz |
| Frequency DVB-T: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 4 |
| Terrestrial input: 1 |
| Number of cable connections: 2 |
| Subscribers per cable: maximal 4 |
| Transmission loss |
| Sat: 3 ... 5 dB |
| Terrestrial: 2 ... 3 dB |
| Tuner |
| TECHNIROUTER ready: Yes |
| Scope of Delivery |
| TechniRouter 5/2x4 K, Bedienungsanleitung |
