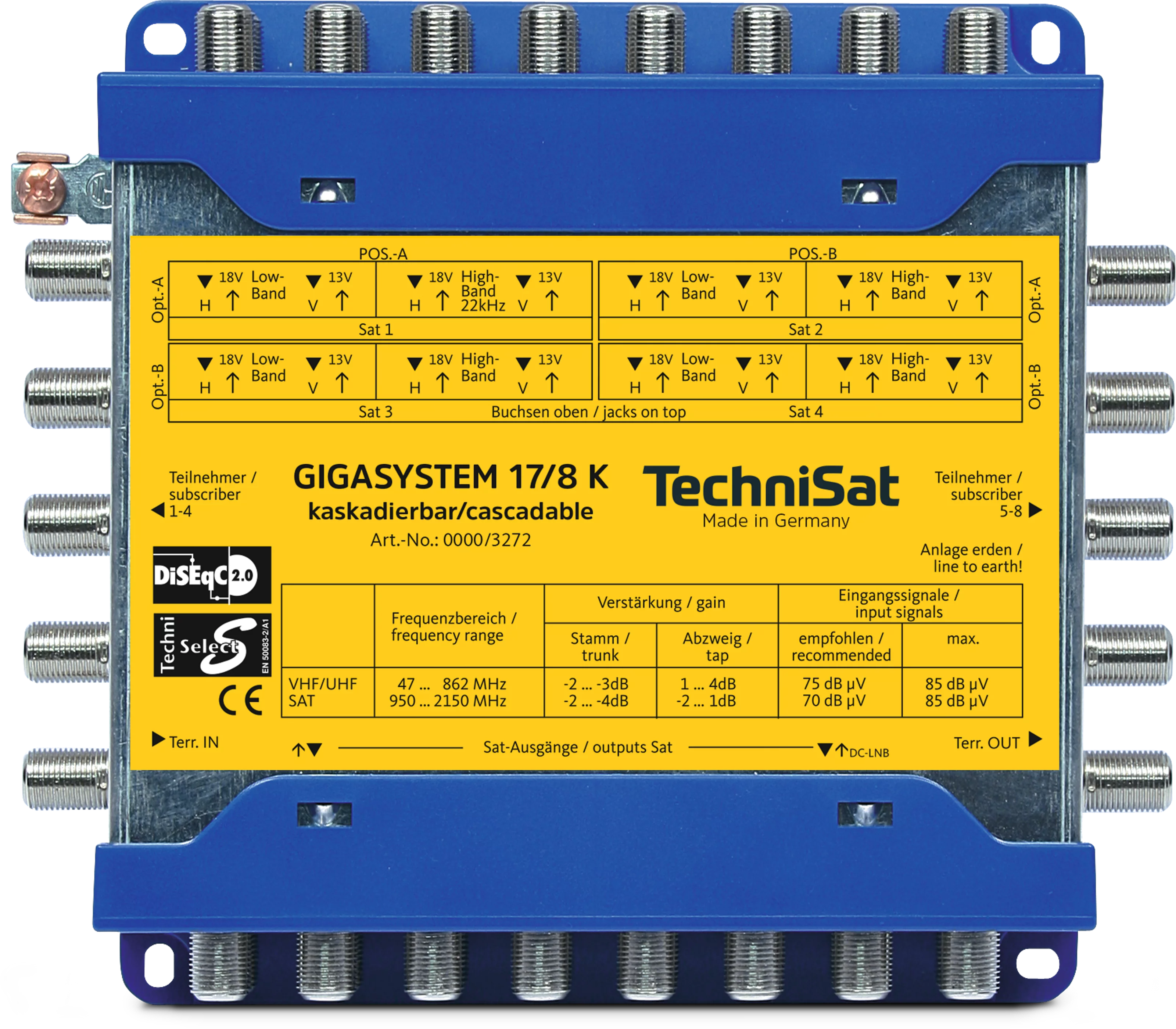

GIGASYSTEM 17/8 K
Multiswitch system with connection options for 16 IF levels (satellite blocks) and one terrestrial input for distribution to up to several hundred subscribers
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032729 |
blue/yellow |
0000/3272 |
700 g |
600 g |
17,5 x 15,4 x 4,5 cm |
29,4 x 18,2 x 6 cm |
| Filter-Navigation |
| Number participants: 8 |
| Amplification |
| Sat: -2 ... 1 dB |
| Terrestrial: 1 ... 4 dB |
| Decoupling |
| Output: 35 dB |
| Trunks: 45 dB |
| General characteristics |
| Top features: Ohne Dämpfung im Sat-Bereich, mit Schräglagenentzerrung |
| Top features: Mit Schräglagenentzerrung |
| Top features: Für 4 Quattro-LNB |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Technical data |
| Satellite inputs: 16 |
| Terrestrial input: 1 |
| Outputs: 8 |
| Transmission loss |
| Sat: 2 ... 4 dB |
| Terrestrial: 2 ... 3 dB |
| Scope of Delivery |
| GigaSystem 17/8 K, Instruction manual |
