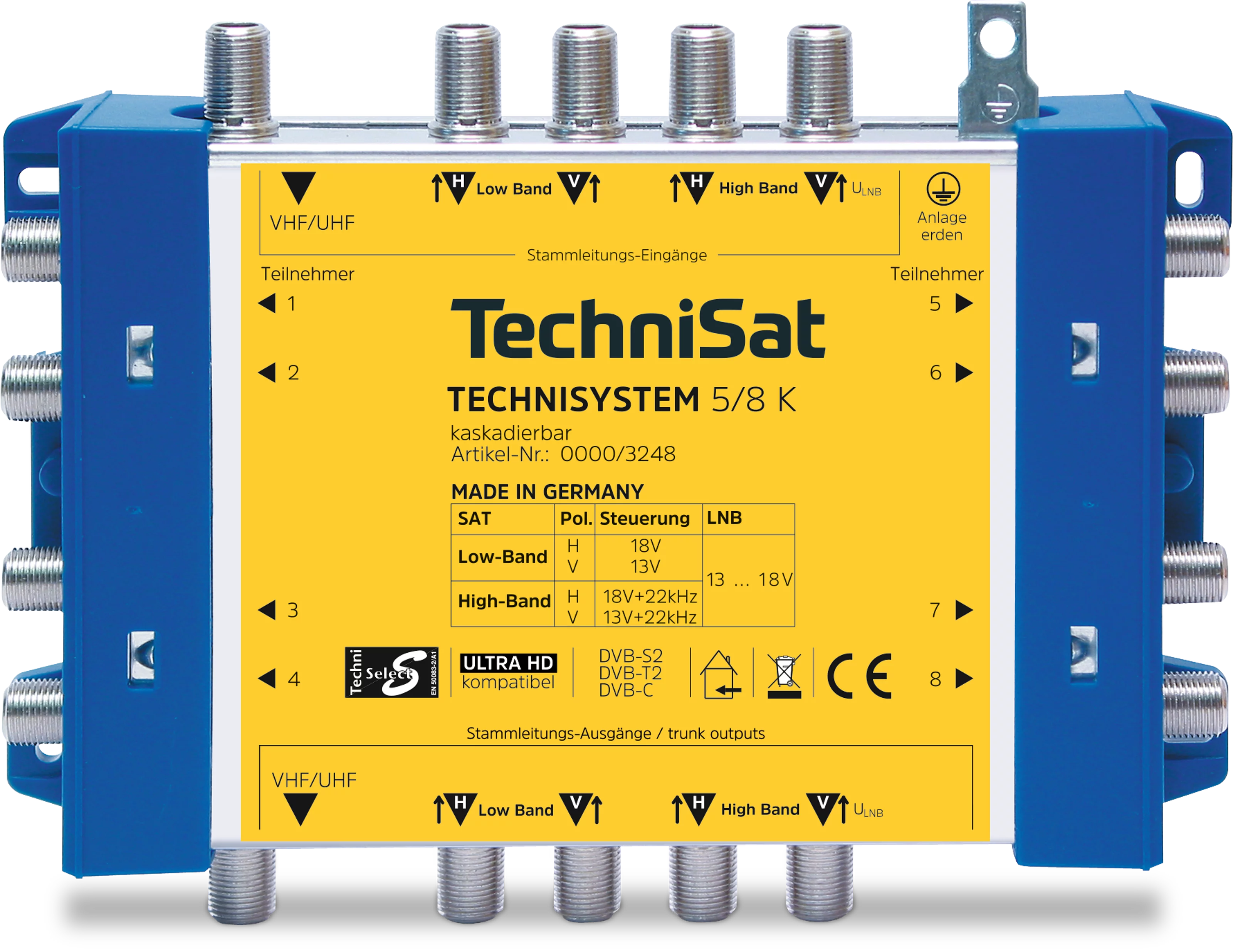

TECHNISYSTEM 5/8 K

TECHNISYSTEM 5/8 K

Multi-switch system with connection possibility of 4 ZF levels for distribution to up to 8 participants

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588032484	blue/yellow	0000/3248	400 g	400 g	17,1 x 10,13 x 3,3 cm	17,6 x 18,6 x 4 cm

Top Features

Made in Germany; cascade module for professional multiswitch systems for implementing larger cable networks in residential units, complexes, and large facilities

The professional system for Quattro LNBs features 4 satellite inputs, 1 terrestrial input, and 8 outputs

No attenuation in the satellite band, with tilt compensation

Attention: The components of the TECHNISYSTEM are not compatible with TECHNISWITCH components

Ambient operating conditions
Ambient temperature: -25 ... 55 °C

Amplification
Sat: -2 ... 3 dB
Terrestrial: 1 ... 4 dB

Decoupling
Output: > 35 dB
Trunks: 47 dB

General characteristics
Top features: No attenuation in satellite range
Top features: Tilt gain
Top features: For quad LNB

Reception range
Sat: 950 ... 2.150 MHz
Terrestrial: 47 ... 862 MHz

Technical data
Satellite inputs: 4
Terrestrial input: 1
Outputs: 8
Distribution length: 100 m

Transmission loss
Sat: 2 ... 5 dB
Terrestrial: 2 ... 3 dB

Scope of Delivery
TechniSystem 5/8 K, Bedienungsanleitung
