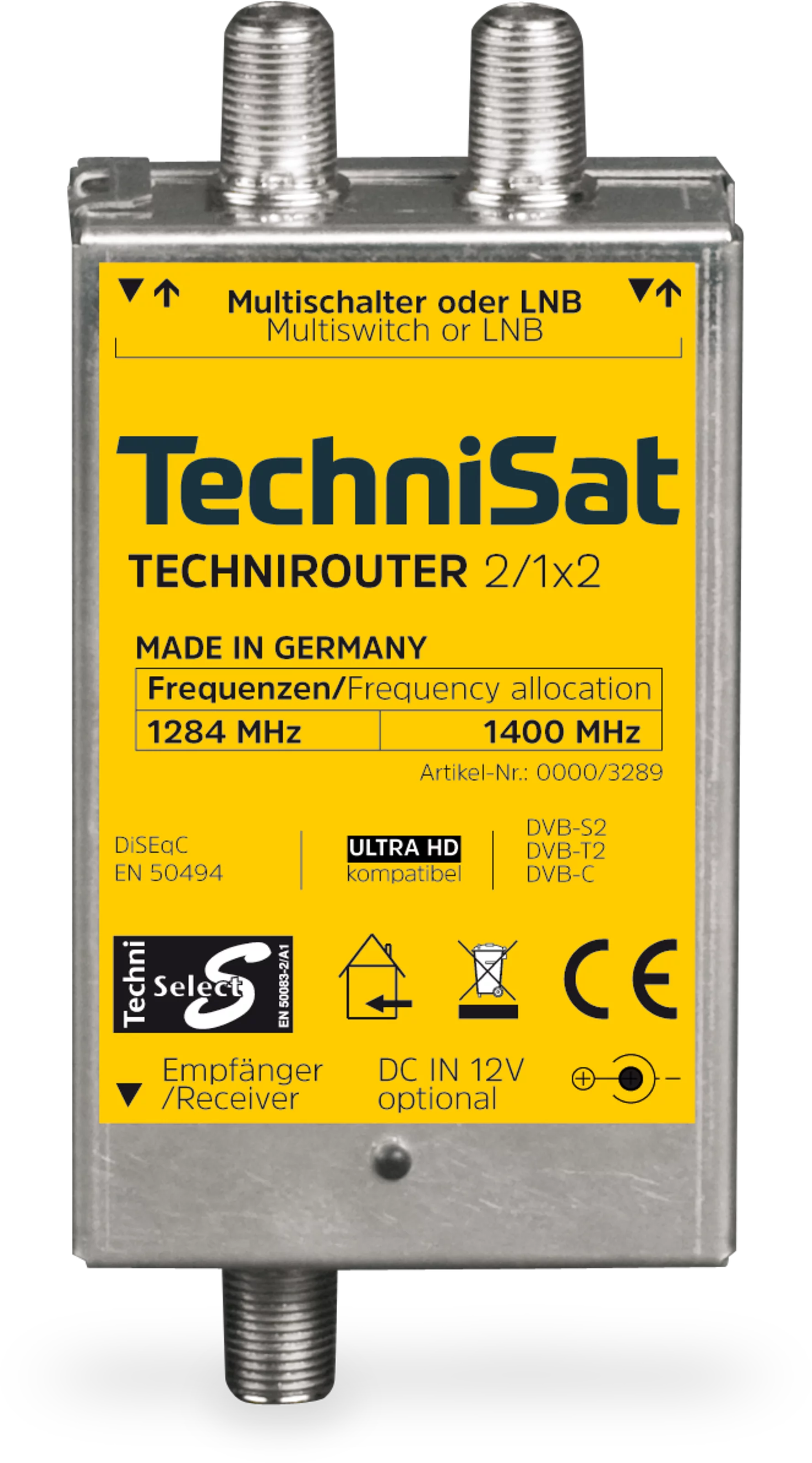

TECHNIROUTER MINI 2/1x2
Expand an existing cable derivation into a Twin solution or into a two-subscriber solution without laying additional cables
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588032897 |
silver/yellow |
0000/3289 |
400 g |
200 g |
5 x 2,8 x 11,5 cm |
18 x 4 x 18,5 cm |
| Top Features |
- Twin reception or supplying two satellite receivers with only one cable. Router for expanding an existing cable branch into a twin or two-subscriber solution without laying new cables
- The TechniRouter Mini 2/1x2 uses Satellite Channel Router (SCR) technology. The connected satellite receivers or TV sets with integrated satellite tuner must support the EN 50494 standard
- The router can only be connected to two existing free subscriber lines of a multiswitch or a twin or quad switch LNB. It is not suitable for Quattro LNB
- The PIN code technology of the single-cable solution enables access protection on compatible receivers. Power is supplied via the receiver/TV. Quality Made in Germany
|
| sonstiges |
| bf_filter_number_of_participants: 2 |
| Ambient operating conditions |
| Humidity: 10 ... 75 % |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: 2 dB |
| Terrestrial: -3 dB |
| General characteristics |
| Top features: Expansion of coaxial line to twin function |
| Top features: No additional cable routing required |
| Top features: 2 adjustable orbit positions |
| Top features: Very compact dimensions |
| Top features: Can be connected behind Twin, Quatro Switch LNB and multiswitch |
| Top features: Terrestrial outlet for DVB-T(2)/UHV |
| Power consumption |
| In operation: max. 2 W (Standby 0 W) |
| Power supply |
| Mains adapter: extenal 12 VDC/1,5 A |
| Frequency: 50 Hz |
| Nominal voltage: 230 V |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 ... 862 MHz |
| Single-cable output |
| Output frequency: 47 ... 2.150 MHz |
| Number of output channels: 2 |
| Frequency of the output channels: 1284, 1400 MHz |
| Frequency SAT: 1.250 ... 1.430 MHz |
| Frequency DVB-T: 47 ... 862 MHz |
| Output level: - 3 dB |
| Technical data |
| Satellite inputs: 2 |
| Number of cable connections: 1 |
| Subscribers per cable: 2 |
| Scope of Delivery |
| TechniRouter Mini 2/1x2, Manual |
Test Results TECHNIROUTER MINI 2/1x2
Satvision (10/2012)
SAT Empfang (02/2012)
