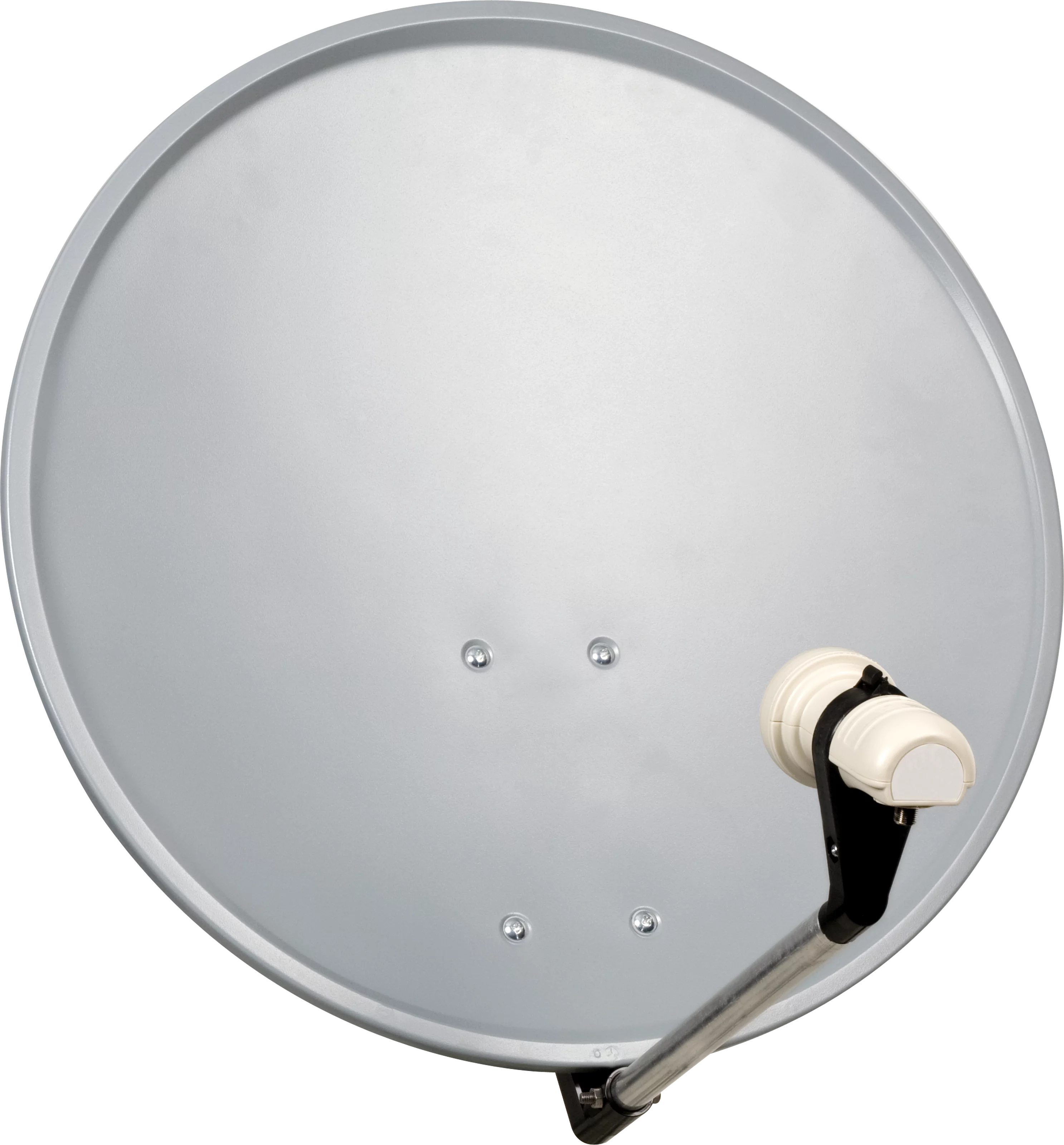

DIGITALSAT 55
Digital satellite dish with a diameter of 55 cm
| EAN | Colour | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| 4019588521940 | grey | 1055/2194 | 3 kg | 2,3 kg | 55 x 55 x 140,0 cm | 59 x 61 x 14 cm |
| 4019588528826 | grey | 1055/2882 | 3,2 kg | 2,5 kg | 55 x 55 x 140,0 cm | 59 x 61 x 14 cm |
| Local oscillator |
|---|
| Low band: 9,75 GHz |
| High band: 10,7 GHz |
| LNB control |
|---|
| Vertical: 11,5 - 14,5 V |
| Horizontal: 16 - 19 V |
| General characteristics |
|---|
| Material: Stahl |
| Top features: Powerful satellite dish (55 cm) |
| Top features: With few individual parts and partially assembled components it is easy to install and therefore time and cost-saving |
| Top features: Material: Steel / special powder coating on both sides for optimum corrosion protection |
| Material strength: 0,5 mm |
| Coating: Powder-coated on both sites |
| Input frequency range |
|---|
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
|---|
| Lower frequency range: 0,7 dB max. |
| Upper frequency range: 0,7 dB max. |
| Output frequency range |
|---|
| Low band: 950 - 1.950 MHz |
| High band: 1.100 - 2.150 MHz |
| Technical data |
|---|
| F/D: 0,6 |
| Offset angle: 20 ° |
| Gain: 32 dBi @11,3GHz |
| Mast Ø: max. 60 mm |
| Feed reception: 40 mm |
| Scope of Delivery |
|---|
| DigitalSat 55, AZ/EL-mount, digit Universal-LNB, srews, installation manual |
Test Results DIGITALSAT 55
Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
