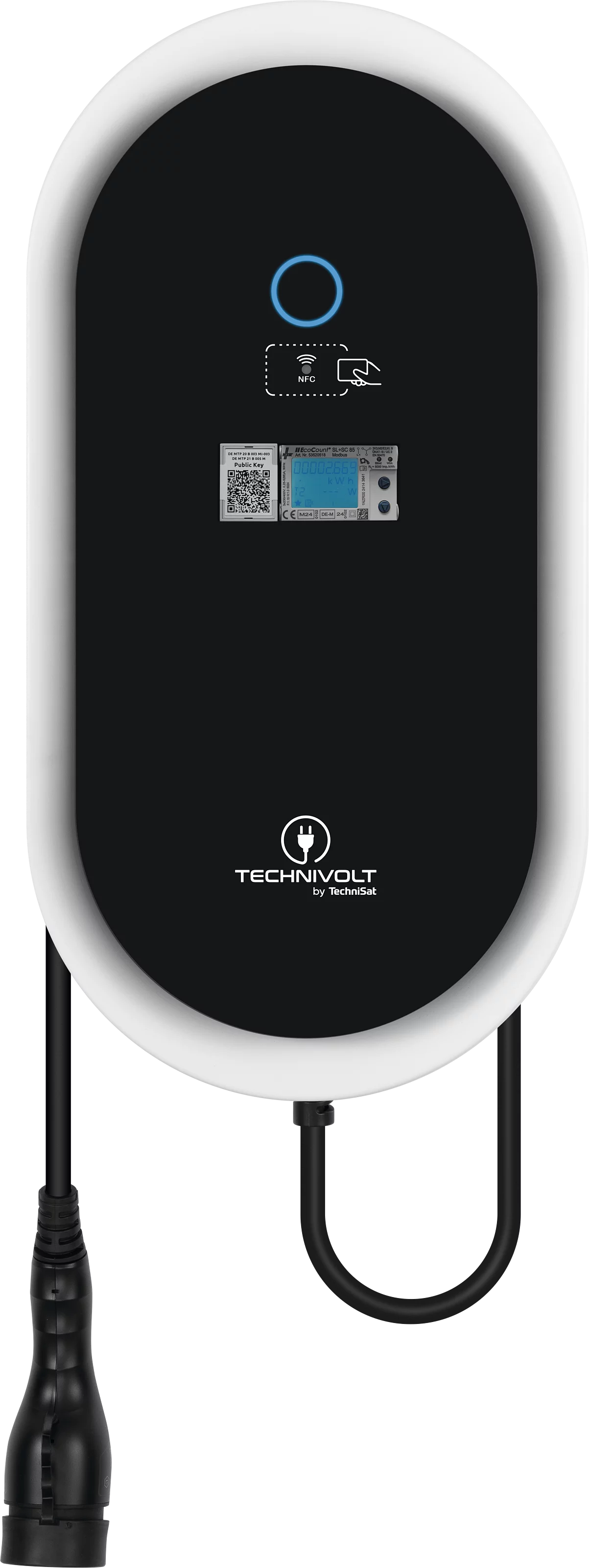

TECHNIVOLT 2200 SMART PRO
22 kW charging station with permanently connected charging cable according to IEC 62196-2 type 2
| Colour | EAN | Item no. | Weight (Box) | Weight | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|
| schwarz/weiß | 4019588763302 | 0007/6303 | 11,98 kg | 9,61 kg | 34 x 66 x 11,2 cm | 39 x 78,5 x 24,5 cm |
| Top Features |
|---|
|
| sonstiges |
|---|
| bf_filter_charging_power: 22 kg/mm |
| bf_filter_financial_support: Eligible for KfW funding |
| Mechanical properties |
|---|
| Feedthrough for data cables: M25, for cables Ø 4-9 mm |
| Housing material: Plastic (flame retardant), glass |
| Bushing for power supply line: M32, fpr cables Ø 15-21 mm |
| RFID |
|---|
| UID: 4-byte, 7-byte |
| Card type: MIFARE |
| Frequency: 13,56 MHz |
| Standard: ISO 14443A |
| WLAN |
|---|
| IEEE 802.11b: Yes |
| 2,4 GHz: Yes |
| IEEE 802.11n: Yes |
| WPA2: Yes |
| IEEE 802.11g: Yes |
| Ambient operating conditions |
|---|
| Operating altitude: 2.000 m ü.NN |
| IP class: 54 |
| Shock resistance: IK08 |
| Humidity: 5 ... 95 % (relative, no dew) |
| Temperature: -25 ... 55 °C (without direct sunlight) |
| Ambient storage conditions |
|---|
| Humidity: 5 ... 95 % (relative, no dew) |
| Temperature: -30 ... 70 °C |
| Mobile radio |
|---|
| SIM card: Micro-SIM |
| Standard: 4G LTE Cat1 |
| WCDMA bands: B1/B8 |
| EDGE bands: B3/B8 |
| LTE FFD bands: B1/B3/B7/B8/B20/B28 |
| Authorisation |
|---|
| RFID: Yes |
| Load management |
|---|
| Static: Yes |
| Time-dependent: Yes |
| Phases individual: Yes |
| Dynamic: Yes |
| Phase imbalance prevention: Yes |
| Protection |
|---|
| DC fault current detection: Internal RCM, IΔn ≥ 6 mA |
| MCB in the entrance: Tripping characteristic C |
| RCCB in the entrance: 4P-40A-30mA, Typ A |
| Output/vehicle connection |
|---|
| Charging Mode: Mode 3, IEC61851-1 |
| Charging port: Fixed charging cable with type 2 plug, IEC-62196-2 |
| Output voltage: 230 / 400 V |
| Charging current: 32 A |
| Charging power: 22 kW·h |
| Communication |
|---|
| Vehicle communication: PLC, ISO 15118 Plug-&-Charge |
| Internet / network: Ethernet, WLAN |
| Mobile data connection: Mobile radio |
| Charging point <> backend: OCPP Version 1.5, 1.6 |
| User authorization: RFID |
| Modbus: Yes (TCP) |
| EEBUS: Yes |
| SMA SEMP: Yes |
| Network & communication |
|---|
| 4G: Yes |
| 100Base-T: Yes |
| TCP/IP: Yes |
| HTTP: Yes |
| DHCP: Yes |
| Power supply |
|---|
| Nominal current: 32 A |
| Rated frequency: 50 Hz |
| Nominal voltage: 230 / 400 V |
| Power consumption standby: typ. 4,2 W |
| Power cord: max. 10 mm² Ø 15-21 mm |
| Type of current: AC |
| Scope of Delivery |
|---|
| TECHNIVOLT 2200 SMART PRO AC charging station, front glass pane, assemblY instructions, operating instructions, assemblY template, fastening set (4x Fischer SXRL 8 x 60 FUS A4), angle keY (Torx-TR 20), locking screw for glass pane (Torx-TR 20 M4), 2x user RFID card |
