| EAN | Item no. |
|---|---|
| 4019588060340 | 0000/6034 |
| Ambient operating conditions |
|---|
| Ambient temperature: -10 ... 55 °C |
| IP class: 53 |
| Humidity: 10 ... 75 % |
| Amplification |
|---|
| UKW: 30 dB |
| VHF I: 30 dB |
| VHF III: 30 dB |
| UHF: 34 dB |
| General characteristics |
|---|
| Top features: Four signal inputs 2 x UHF, VHF, FM/DAB+ |
| Top features: One signal output directly to TV or decoder |
| Top features: DC pass 60 mA |
| Top features: Channels: VHF/FM, VHF: 6-12, UHF: 21-60 |
| Top features: IP 53 class |
| Top features: Waterproof housing |
| Power supply |
|---|
| Mains adapter: internal |
| Nominal voltage: 230 V ~ |
| Frequency: 50 Hz |
| Effective output: 7 W |
| Reception range |
|---|
| UKW: 87,5 ... 108 MHz |
| VHF III E5-E12: 174 ... 230 MHz |
| UHF E21-E69: 470 ... 790 MHz |
| Technical data |
|---|
| Input: 4 |
| Connector type: F |
| Impedance: 75 Ω |
| Output level: 115 |
| Level attenuation: 20 dB every input |
| Scope of Delivery |
|---|

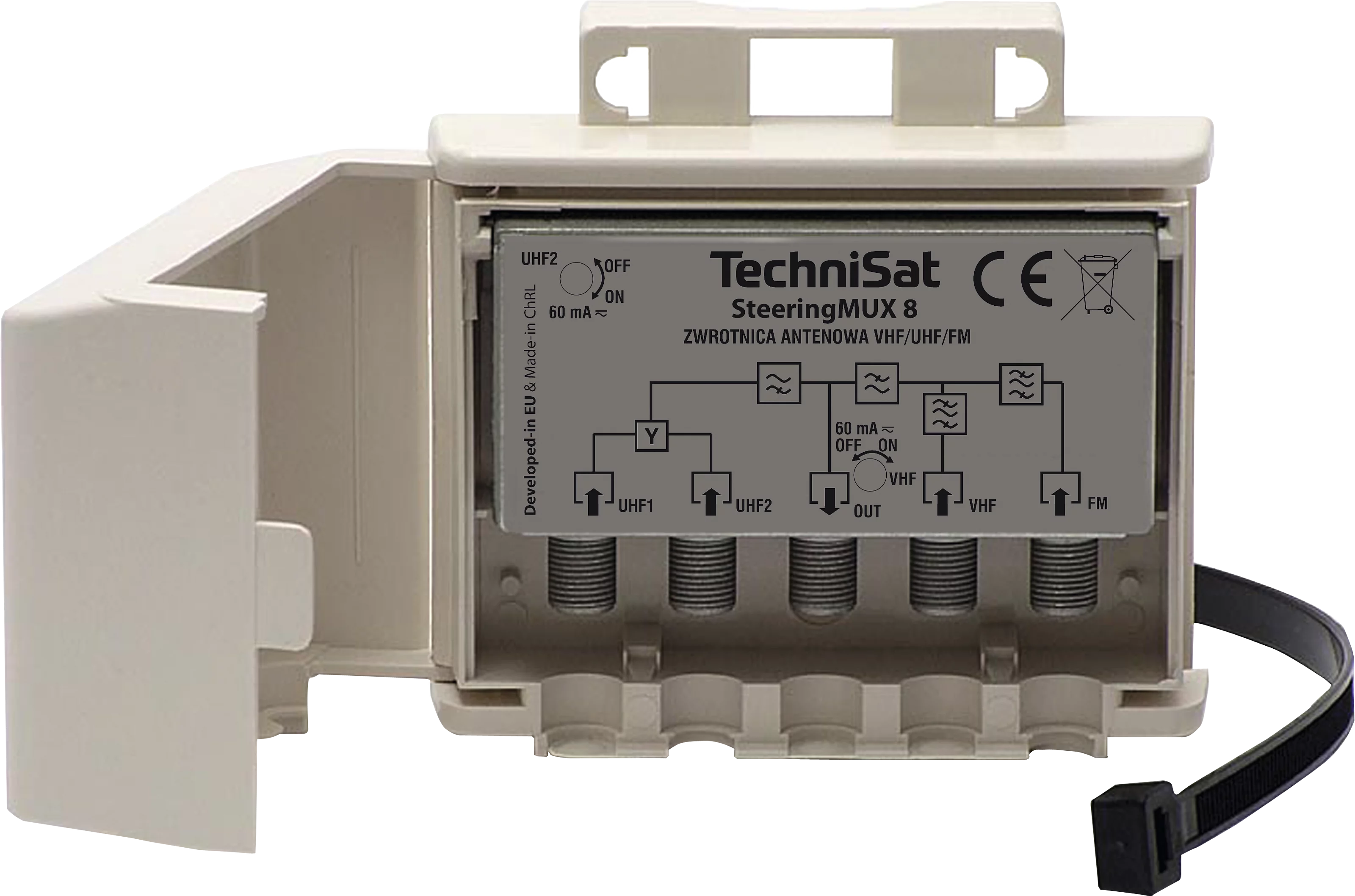

| STEERINGMUX 8 crossover, protective housing, clamp for mounting e.g. on an antenna mast, operating instructions |
