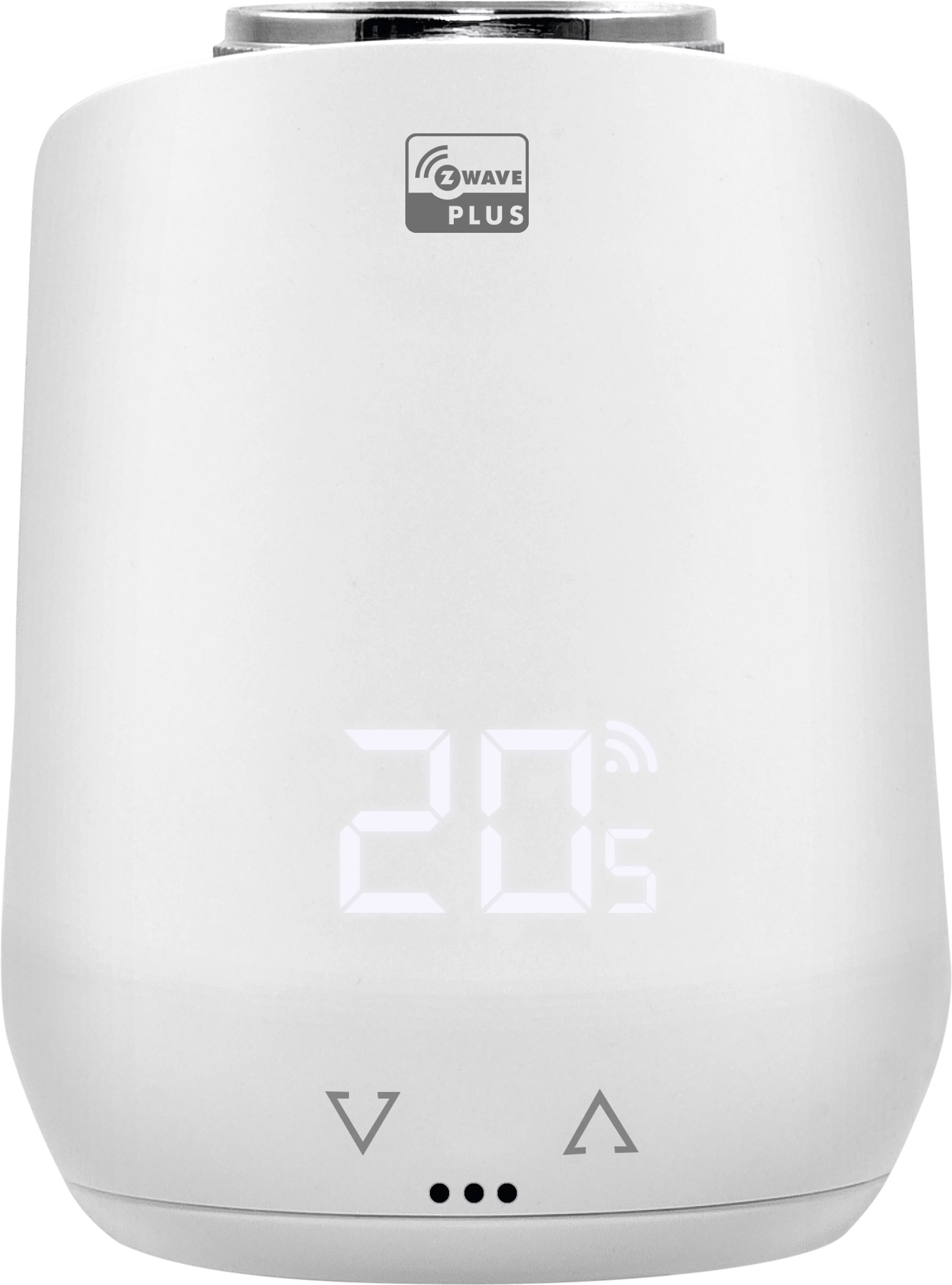

Heating thermostate 3
Radiator thermostat for controlling the temperature of radiators in hot water heating systems
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588095298 |
white |
0000/9529 |
234 g |
158 g |
6,2 x 6,8 x 8,3 cm |
10,5 x 6,5 x 13 cm |
| Top Features |
- Integration/control with TechniSat CONNECT
- For using with water based room radiators
- temperature indicator in the display
- LED signaling for interactive operation
- Real-Time Control (FLiRS)
- Adapters for Danfoss valves
|
| Ambient operating conditions |
| IP class: 20 |
| Ambient temperature: 0 bis 40 °C |
| funk communication |
| Telecommunication: Z-Wave Plus |
| Range inside: max. 40 m |
| operating frequency: 868,42 MHz |
| Other features |
| Battery change indicator: Yes |
| Power supply |
| Nominal voltage: 3 V |
| Non rechargeable battery: 2 x 1.5 V AA alkaline, class III |
| Sensor |
| Sensor type: Programmable electronic radiator thermostat |
| Standard area: 8 - 28 °C |
| Scope of Delivery |
| Heating thermostat 3, adapter for Danfoss valves (RA/RAV/RAVL), screw for adapter, 2 alkaline batteries AA, instruction manual |
