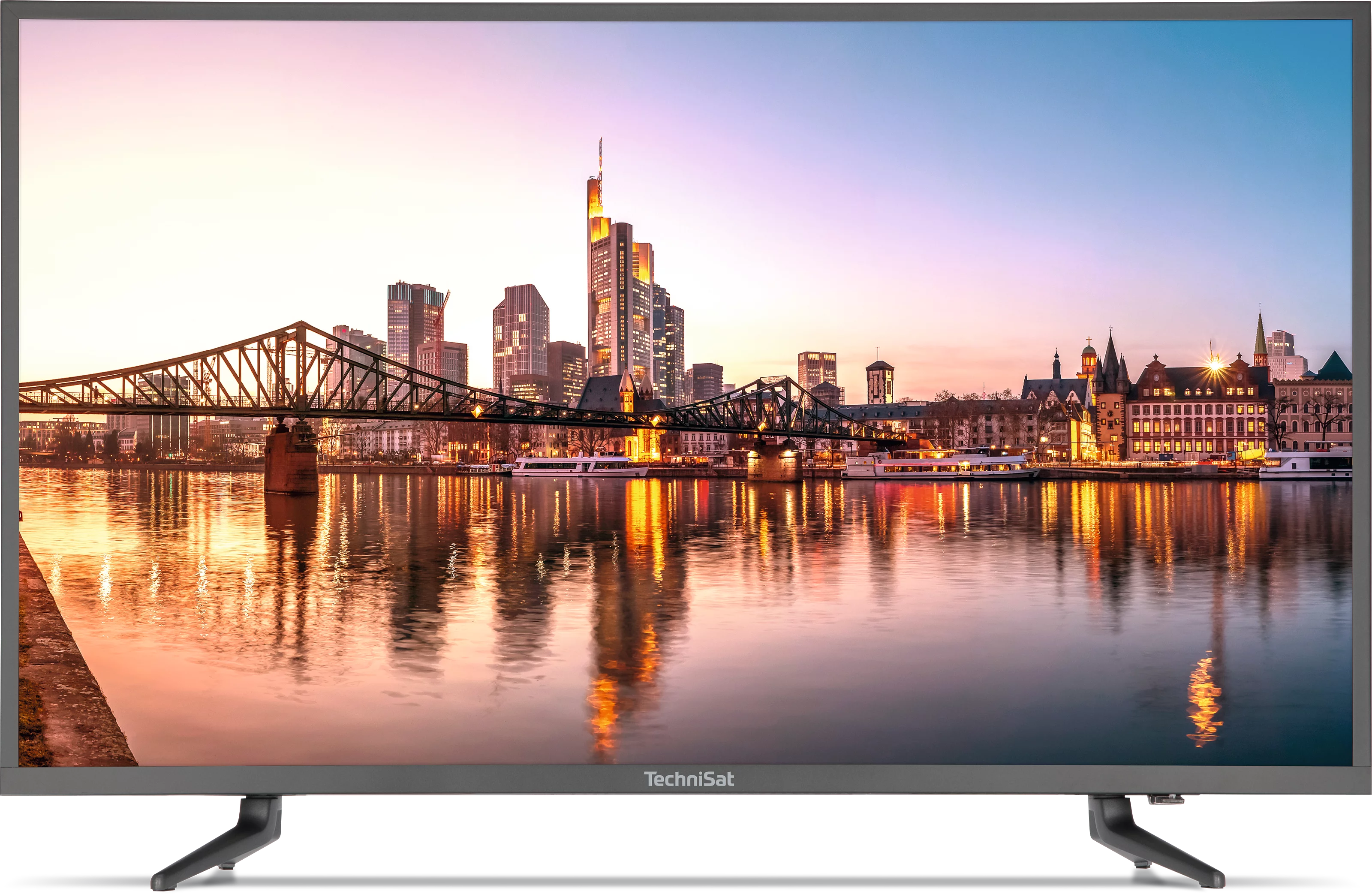

TECHNILINE 32 ISI 2

sonstiges
bf_filter_anschluesse: USB
bf_filter_empfangsart: Satellite (DVB-S/S2)
bf_filter_tuner_typ: Twin tuner
bf_filter_aufloesung: Full HD
bf_filter_screen_size: 32 in
bf_filter_austattung: Integrated subwoofer

Multimedia
DVR function: Ja
DVR storage medium: USB, NAS
Timeshift: Yes
Recordings edition function: Yes
Recordings folder management: Yes

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

TechniSat added value services
SFI+: Yes
ISI-Mode: Yes
TECHNIFAMILY: Yes
ISIPRO: Yes
AUTOINSTALL: Yes
TECHNIMATIC: Yes

Internet/Network
Internet: Yes
ISIO Internet: Yes
HbbTV: Yes
VoD services: Ja
Webbrowser: Yes
HTML 5 support: Yes
Internet speed test: Yes

Audio
HDMI ARC: Yes
Output power (W): Speakers: 2 x 7,5W @ THD+N < 1% / Subwoofer: 1 x 15W @ THD+N < 1%
Speakers: 2.1 with 15W Subwoofer
audio_klare_sprache: Yes über DVB
ELAC Bass Plus: Yes

Power and energy consumption
Supplier’s name or trade mark: TechniSat
Supplier’s address: TechniSat Digital GmbH, Julius-Saxler-Str. 3, 54550 Daun
Model identifier: 5532/9711
Energy Efficiency Class for standard Dynamic Range (SDR): E
On mode power demand for Standard Dynamic Range (SDR): 26,2 W
Standby mode power demand, if applicable: 0,5 W
Electronic display category: Fernsehgerät
Size ratio: 16:9
Screen resolution (pixels): 1920 x 1080
Screen diagonal: 80,1 cm
Screen diagonal: 32 in
Visible screen area: 27,4 dm²
Panel technology used: LED-LCD
mage refresh frequency rate (default): 50 Hz
Minimum guaranteed availability of software andfirmware updates (from the date of end of theplacement on the market): 8 Jahre
Minimum guaranteed availability of spare parts (fromthe date of end of the placement on the market): 7 Jahre
Minimum guaranteed product support: 8 Jahre
Minimum duration of the general guarantee offered by the supplier: 2 Jahre
Power supply type:: Intern

Connections
HDMI™ (in): 2 (hinten)
USB: 2 (USB 2.0)
Common Interface Plus (CI+): Yes
Digital electric audio output (S/PDIF): Yes
Audio / video input analog (3.5 mm jack): 1
Ethernet 10/100 (RJ-45): Yes
F socket: 1
IEC-Connector: Yes
Audio out analogue (3,5 mm jack): 1
Headphone output: Yes (3,5mm Klinke)

Decryption system
CI+: Yes

Display
Type: Direct-LED
Resolution (vertical and horizontal): 1920x1080
Size (cm): 80 cm
Size (inches): 32
SD: Yes
HD: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
480p: Yes
480i: Yes
Angle of view: 178° / 178°
Format: 16:9
Zoom: Yes
Freeze frame: Yes

Handling/comfort
CONNECT app: Yes
Electronic Program Guide (EPG): Ja
Quick start: Yes
Parental Control: Ja
Media Player: Yes
Export database: Yes
Channel number mix: Yes
Teletext: Yes
Autostandby: Yes
Sleep timer: Yes
Hotel mode: Yes
Selection regional channels: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Energy card function: Yes
USB cloning function: Yes
Multimedia connectors: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Radio mode: Yes
Alarm function: Yes
Sleep timer: Yes
Mixing of channel slots: Yes
Multicode remote control: Yes
Selectable start source: Yes
Selectable start channel: Yes

Other features
OSD languages: English, German, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian
Regional channel selection: Yes

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: internal

Streaming
DLNA Server: Yes
DLNA Client: Yes
Cloud store: Ja
Parental Control: Yes
TechniCast: Ja (optional über Dongle)

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, H.264 (bis H.264/AVC Level 4.2), H.265, DivX (MPEG4 part2), VC-1
Video-Formats: M4V, MP4, MKV, MOV, MPG, TS, TS4, VOB, WMV, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG, TIFF
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, OGG, DDAC3, AIFF, WMA

TechniSat CONNECT
Control: Yes
SFI: Yes
MULTI PLAY: Yes

Tuner
Tuner type: TwinTuner in one cable
Twin-Tuner: Yes
DVB-S tuner: 2
Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607
DVB-C Tuner: 2
Tuner DVB-T2: 2
DVB-T Tuner: 2
Satellite radio: Yes
Pay TV enabled: Yes
Cable radio: Yes
Internet radio: Yes
Reception on: HDTV (MPEG-4), SD (MPEG-2)
Input impedance: 75 Ω
TECHNIROUTER ready: Yes

Tuner - Cable
Reception range: 47 ... 862 MHz
Demodulation: 16-, 32-, 64-, 128-, 256-QAM
Symbol rate: 1,5 ... 7,2
FEC: Reed-Solomon (204, 188)

Tuner - Sat
Reception range: 950 ... 2.150 MHz
DVB-S: QPSK
DVB-S: 2 ... 45 (MCPC / SCPC)
DVB-S2: 8PSK - QPSK
DVB-S2: 10 ... 31 (MCPC / SCPC)
FEC: RS, LDPC, BCH

Tuner - Terrestrial
Reception range 1: 174 ... 230 MHz
Reception range 2: 470 ... 862 MHz
Demodulation: COFDM (QPSK, 16-QAM, 64-QAM)
Transmission mode: 2k/8k
Bitrate: 4,98 ... 31,67
FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
Voltage supply: 5 V
Power supply: 0,03 A

wall bracket
VESA wall mounting standards: 100 x 100
