TECHNITOP HAV 40

TECHNITOP HAV 40

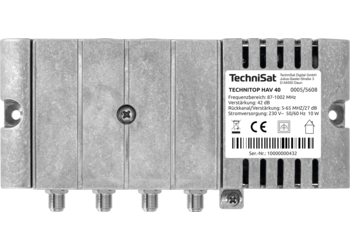

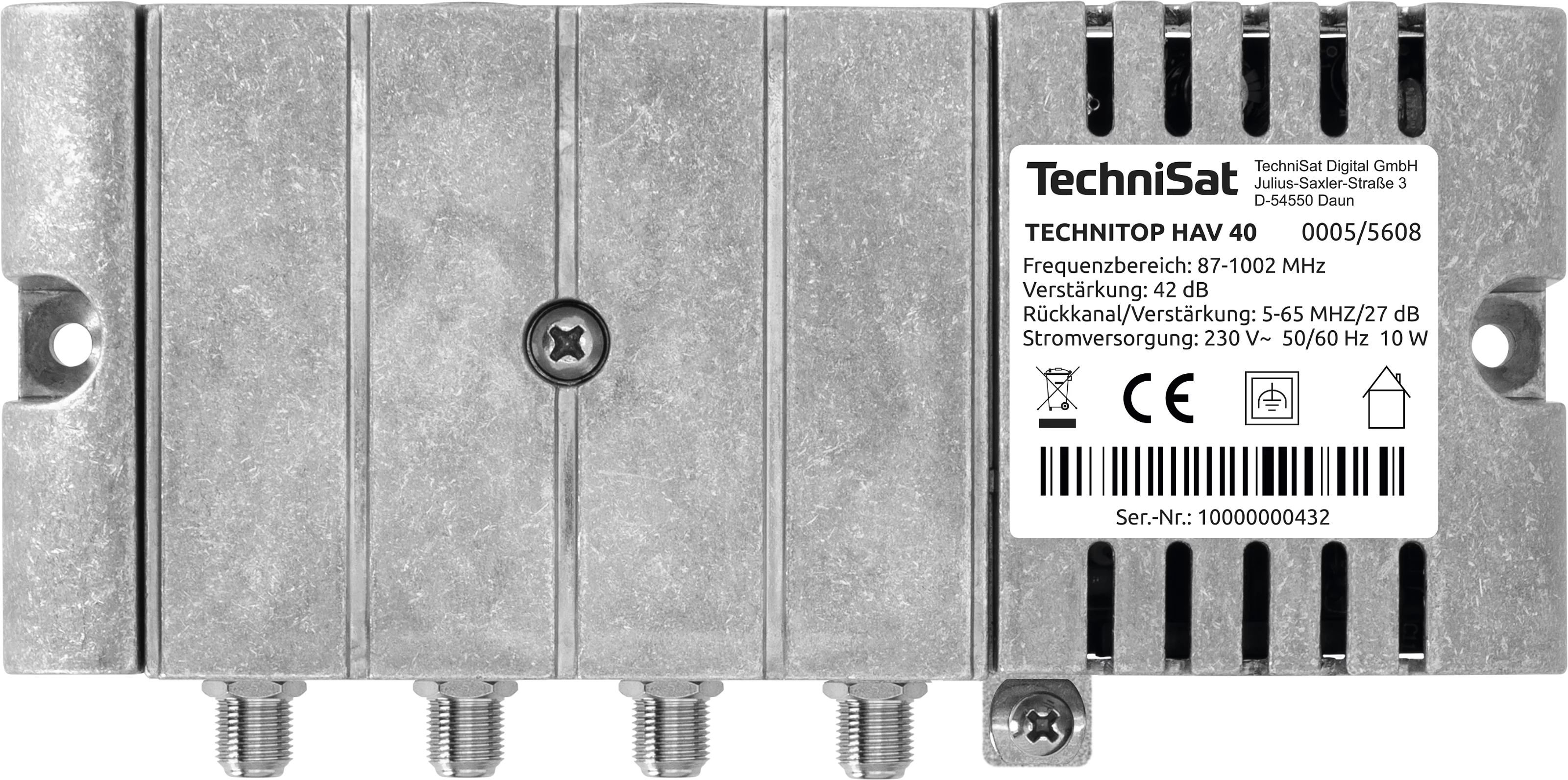

CATV amplifier with 42 dB gain and active return path of 5-65 MHz.
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588556089 silver 0005/5608 780 g 700 g 18,5 x 9,1 x 4,7 cm 20,5 x 5,8 x 15 cm
Top Features
  • Downstream 87...1006 MHz
  • Intermediate attenuation and equalization switchable
  • Upstream 5–65 MHz
  • Attenuation and equalization adjustable
  • Alu-Druckgussgehäuse
  • Shielding Class A according to EN 500083-2
  • Measurement sockets at input and output
Ambient operating conditions
Ambient temperature: 10 ... 75 °C
Temperature: -20 ... 50 °C
IP class: 20
Output level
Standard IMA UHF: 111 dB
Standard IMA UHF: 111 dB
IMA DIN 45004B VHF: 102 dB
IMA DIN 45004B UHF: 102 dB
Power requirement
Operating voltage: 230 V
Power input: 4 W
Power supply
Frequency: 50 / 60 Hz
Nominal voltage: 230 V ~
Effective output: 10 W
Range of adjustment
Attenuator: 18 dB
Equaliser: 18 dB
Technical data
Frequency range: 87 ... 1.006 MHz
Output level: 114 (CTB, CSO EN60728-3)
Interstage attenuator: 10 dB switchable
Frequency range return path: 5 ... 65 MHz
Amplification: 42 dB
Noise factor: ≤ 6 dB
Shielding factor: ≥ 80 dB EN 50083-2 (Klasse A)
Output + input measuring points: -20 dB (± 2,5)
Connector type: F female
Impedance: 75 Ω
Return loss: ≥ 14 dB (-1,5 dB/Okt.)
Scope of Delivery
TECHNITOP HAV 40, mains cable, manual
