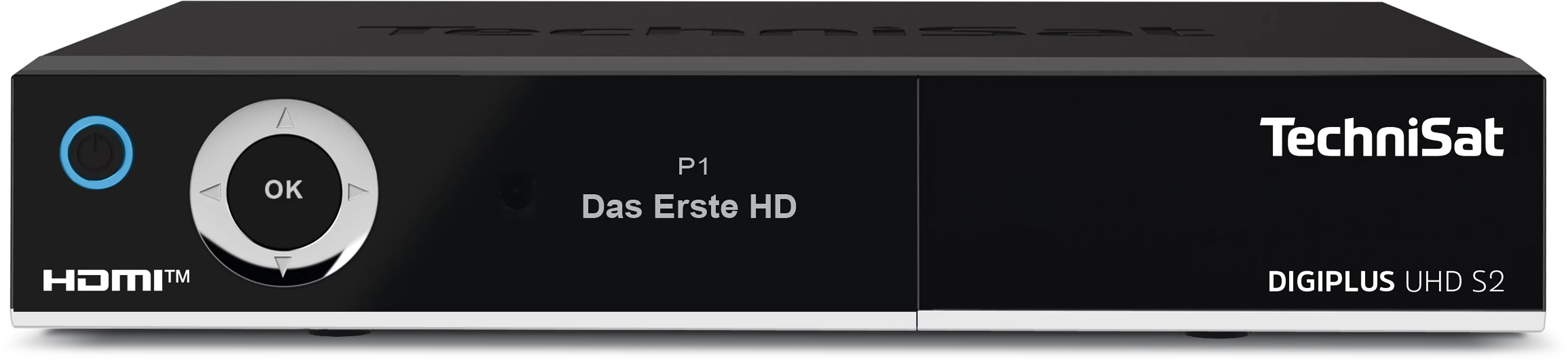

DIGIPLUS UHD S2

sonstiges
bf_filter_aufloesung: 4K/UHD
bf_filter_empfangsart: Satellite (DVB-S/S2)
bf_filter_austattung: App control
bf_filter_tuner_typ: Twin tuner
bf_filter_anschluesse: USB

Multimedia
DVR function: Ja
DVR storage medium: via USB
Timeshift: Yes
Recordings edition function: Yes
Recordings folder management: Yes

WLAN
2,4 GHz: Yes
WLAN: 802.11n a/b/g (2,4 GHz / 5 GHz)
5 GHz: Yes

Ambient operating conditions
Ambient temperature: 5 ... 35 °C
Humidity: 10 ... 75 %

LNB control
Vertical: 14 V
Horizontal: 18 V
Band switch: 22 kHz
Current consumption: max. 400 mA (short-circuit proof)
DiSEqC: 1.0 / 1.2 / SCR1 / SCR2

TechniSat added value services
TECHNIFAMILY: Yes
ISIPRO: Yes
AUTOINSTALL: Yes
ISI-Mode: Yes
SFI: Yes
TECHNIMATIC: Yes

Internet/Network
HbbTV: Yes
HTML 5 support: Yes
ISIO Internet: Yes
Internet speed test: Yes
Webbrowser: Yes

Audio
audio_klare_sprache: Yes via DVB

Connections
HDMI™ (out): 1 (4K 50/60p / HDCP 2.2)
USB: 2 (USB 2.0)
Common Interface Plus (CI+): Yes
Digital electric audio output (S/PDIF): Yes
F socket: 2
Connector for external IR-Receiver: 1
DC IN: 1
Ethernet 1Gbit/s (RJ-45): 1

Decoder
Video decoder: MPEG-2 MP@HL/ML, H.264/MPEG-4 AVC, H.265/HEVC
Audio decoder: MPEG-1 & MPEG-2 Layer I, II, III

Decryption system
CI+: Yes

Display
Picture in Picture (PIP): Yes (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD)
Picture and Picture (PAP): Yes
Freeze frame: Yes
Zoom: Yes
UHD/4K upscaling: Yes
SD: Yes
HD: Yes
UHD: Yes
2160p: Yes
1080p: Yes
1080i: Yes
720p: Yes
576p: Yes
576i: Yes
Type: OLED

Handling/comfort
Page memory: 1.000
Teletext subtitles: Yes
Media Player: Yes
Autostandby: Yes
Remote control: Yes
Ideal for camping: Yes
Clock: Yes
Hotel mode: Yes
Selection regional channels: Yes
Alarm: Yes
Teletext: Yes
Parental Control: Ja
Channel presets: 9.999
Sleep timer: Yes

Hotel mode
Protected access to hotel mode: Yes
Customisable start screen: Yes
Lockable volume: Yes
Menu locking: Yes
Control panel lock: Yes
Integrated LED clock: Yes
Selectable start source: Yes
Selectable start channel: Yes

Network & communication
UDP: Yes
DHCP: Yes
UPnP: Yes
HTTP: Yes
IPv4: Yes
1000Base-T: Yes
RTP: Yes
HTTPS: Yes
IGMP: Yes
TCP/IP: Yes

Other features
OSD languages: Czech, Hungarian, English, German, Dutch, Polish, French, Russian, Greek, Swedish, Portuguese, Turkish, Italian, Spanish

Power consumption
Standby LED: 0,4 W
In operation: 17,1 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Mains adapter: external DC12V/3A

Streaming
DLNA Server: Yes
Cloud store: Ja
DLNA Client: Yes
Parental Control: Yes

Supported formats & codecs
Video-Codecs: MPEG-2, MPEG-4, MPEG-1, H.264 (up to H.264/AVC Level 4.2), H.265
Video-Formats: M4V, MP4, MKV, MOV, MPG, MTS, TS, TS4, VOB, M2TS, AVI, ASF
Picture-Formats: BMP, JPEG, GIF, PNG
Audio-Formats: WAV, MP3, AAC, FLAC, M4A, MP2, DDAC3, AIFF

Tuner
Tuner type: Twin-Tuner
DVB-S tuner: 2
Single Cable Solution (SatCR): SCR1 = EN50494, SCR2 = EN50607
Satellite radio: Yes
Internet radio: Yes
Reception on: UHD-TV, HD-TV, SD-TV
TECHNIROUTER ready: Yes
DVB-IP (multicast): 1
TECHNISELECT 12 ready: Yes

Tuner - Sat
Reception range: 950 ... 2.150 MHz
Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 , (auto adjustment)
DVB-S: QPSK
DVB-S: 2 ... 45
DVB-S2: 8PSK-QPSK
DVB-S2: 10 ... 31
FEC: RS, LDPC, BCH
