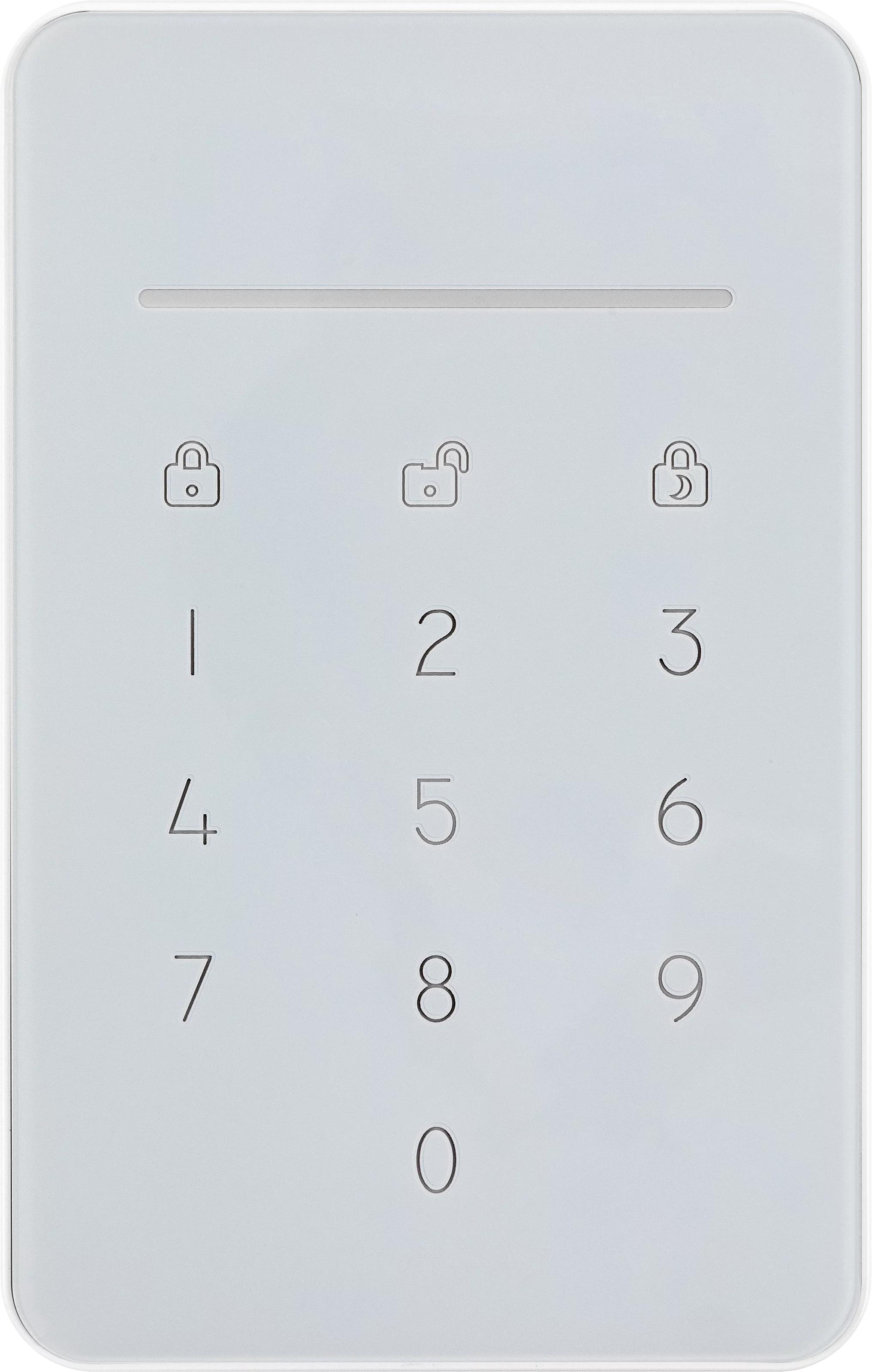

TECHNISMART RFID Keypad
RFID Keypad for TECHNISMART 1
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| Weiß |
4019588095649 |
0000/9564 |
300 g |
180 g |
9 x 14,5 x 2,5 cm |
9,5 x 15 x 6 cm |
| Top Features |
- Expansion for the TECHNISMART alarm system: To use the RFID keypad, the TECHNISMART central unit and the free TECHNISMART app (iOS) are required
- The external control panel is used to arm or disarm the alarm system. Instead of entering a code, authorization can also be done via RFID tag (optional)
- Battery or mains: Power can be supplied wirelessly via battery (approx. 6 months runtime) or continuously via power supply. The indoor keypad is easily wall-mounted with screws
- Intuitive operation and easy setup: The keypad integrates into the TECHNISMART alarm system via a simple QR code scan using the free TECHNISMART app
|
| Ambient operating conditions |
| Humidity: 10 ... 75 % |
| Ambient temperature: -10 ... 45 °C |
| Bluetooth Version & Profile |
| Bluetooth version: 5 |
| Connections |
| Ethernet 10/100 (RJ-45): Yes |
| DC IN: 1 |
| USB: 1 |
| funk communication |
| Telecommunication: RF (ISM-Band) |
| Range inside: max. 30 m |
| Range outside: max. 100 m |
| operating frequency: 433,92 MHz |
| Network & communication |
| Bluetooth: Yes 4.1 LE |
| Operation possibilities |
| Tablet PC: Ja |
| Smartphone: Ja |
| Other features |
| OSD languages: English, German |
| Power supply |
| Battery life: up to 6 months |
| Nominal voltage: 230 V |
| Frequency: 50 / 60 Hz |
| Mains adapter: 5V - 1A |
| Rechargeable battery: Lithium ions with 3,7 V / 800 mAh / 2,96 Wh BL-5B |
| Effective output: 3 W |
| Non rechargeable battery: 2 x 1,5 V Alkaline, AAA, Klasse III |
| Type of power supply: external |
| Scope of Delivery |
| RFID keypad, power adapter, installation material |
