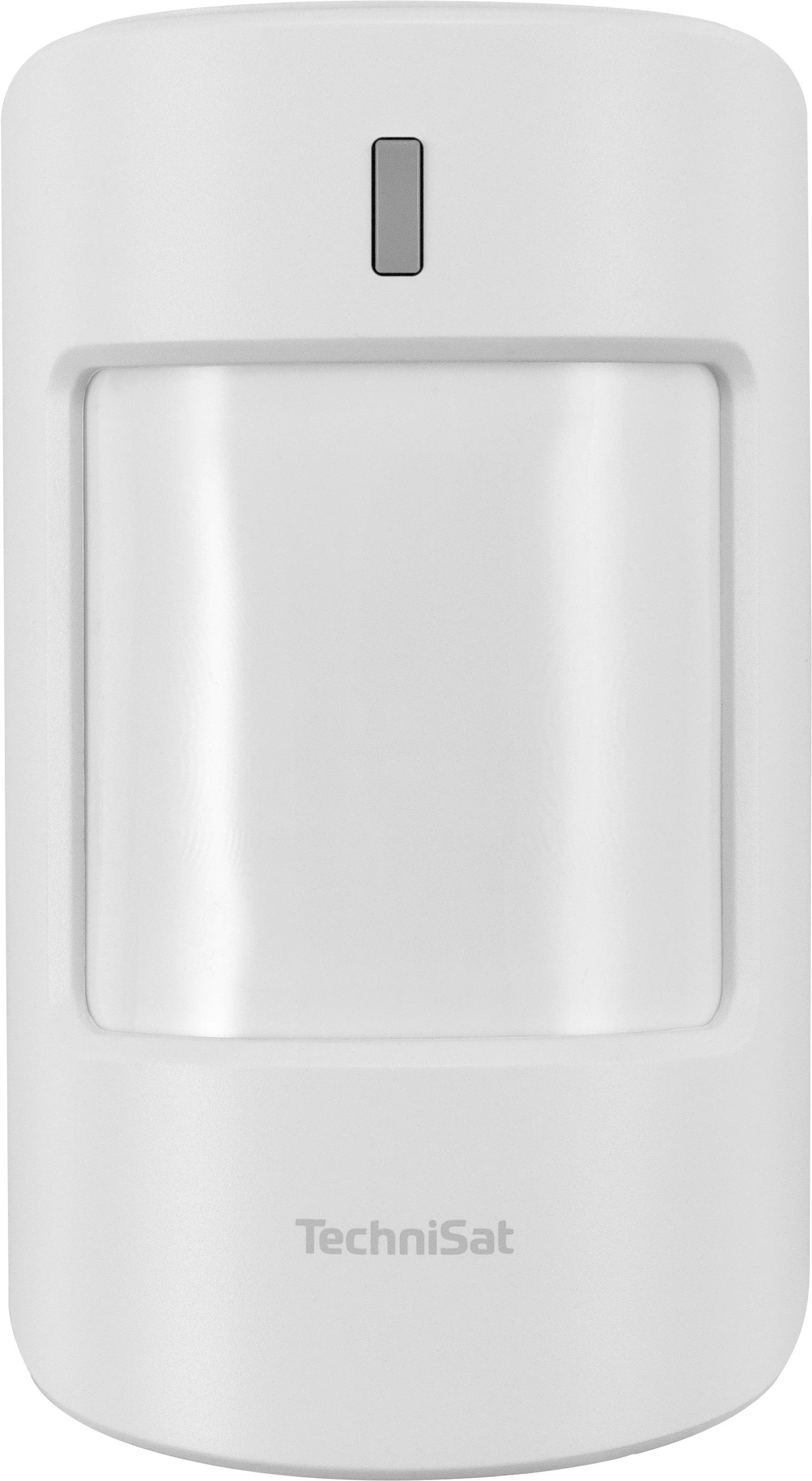

TECHNISMART motion detector
Motion detector for TECHNISMART 1
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| Weiß |
4019588095632 |
0000/9563 |
224 g |
196 g |
6 x 10 x 5 cm |
6,3 x 13,5 x 5,3 cm |
| Top Features |
- Expansion for the TECHNISMART alarm system: To use the motion detector, the central unit from the TECHNISMART starter package and the free TECHNISMART app (iOS) are required
- The infrared motion detector has a 100° field of view and detects movement up to 9 meters. When motion is detected, it triggers an alarm together with the central unit
- Custom alignment: Mounting to the house wall via a plate with a movable ball joint. The motion detector is added to the TECHNISMART alarm system with a simple QR code scan
- Wireless battery operation: The indoor sensor comes with pre-installed batteries. Requires 2 LR6 AA 1.5 V batteries for operation
|
| Ambient operating conditions |
| Ambient temperature: -10 ... 45 °C |
| Humidity: 10 ... 75 % |
| Bluetooth Version & Profile |
| Bluetooth version: 5 |
| Connections |
| Ethernet 10/100 (RJ-45): Yes |
| DC IN: 1 |
| USB: 2 |
| funk communication |
| Telecommunication: RF (ISM-Band) |
| Range inside: max. 30 m |
| Range outside: max. 100 m |
| operating frequency: 433,92 MHz |
| Network & communication |
| Bluetooth: Yes 4.1 LE |
| Operation possibilities |
| Tablet PC: Ja |
| Smartphone: Ja |
| Other features |
| OSD languages: English, German |
| Power supply |
| Battery life: up to 120 min pro Akkuladung auf niedrigster Stufe |
| Nominal voltage: 3 V |
| Frequency: 50 Hz |
| Mains adapter: DC 18 V / 3.300 mA |
| Rechargeable battery: Lithium ions with 14,4 V, 2.600 mAh und 37,44 Wh |
| Effective output: 3 W |
| Non rechargeable battery: 2 x AA |
| Type of power supply: External |
| Sensor |
| Movement sensor: Yes |
| Scope of Delivery |
| Motion detector, installation material |
