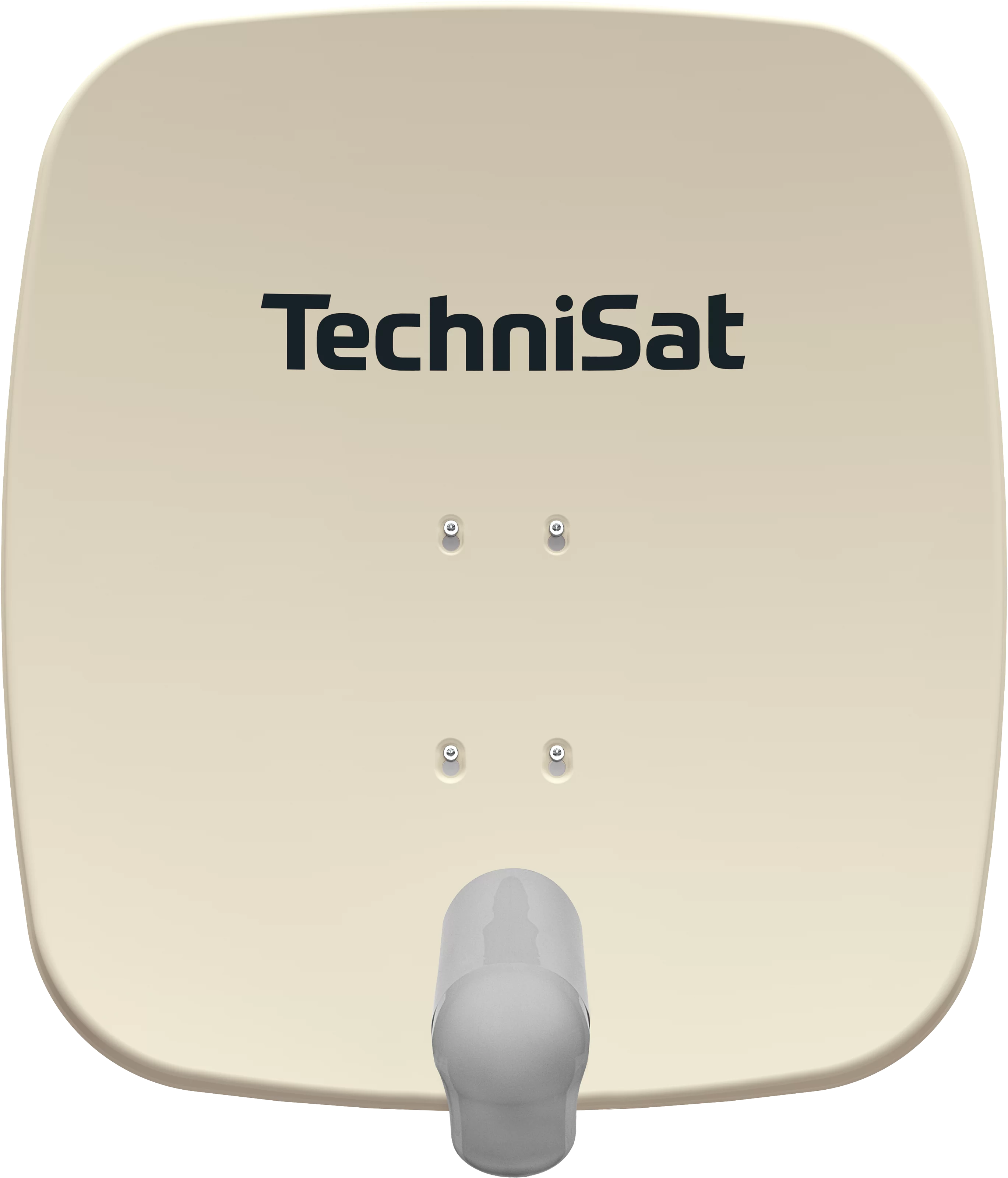

SATMAN 65 PLUS with UNYSAT-Twin-LNB

SATMAN 65 PLUS with UNYSAT-Twin-LNB

SATMAN external unit with pre-assembled AZ/EL mount, 65 cm Ø
EAN Colour Item no. Weight (Box) Weight Device (W x H x D) Box
4019588569829 yellow with Smiley 2565/9882 6,6 kg 4,2 kg 68 x 76 x 5,8 cm 69,2 x 77,8 x 19,5 cm
4019588679825 polar white 2765/9882 6,6 kg 4,2 kg 68 x 76 x 5,8 cm 69,2 x 77,8 x 19,5 cm
4019588469822 brick/red 2465/9882 6,6 kg 4,2 kg 68 x 76 x 5,8 cm 69,2 x 77,8 x 19,5 cm
4019588069824 beige 2065/9882 6,6 kg 4,2 kg 68 x 76 x 5,8 cm 69,2 x 77,8 x 19,5 cm
4019588369825 slate/grey 2365/9882 6,6 kg 4,2 kg 68 x 76 x 5,8 cm 69,2 x 77,8 x 19,5 cm
Top Features
  • 65 cm Spiegel aus erstklassigem Aluminium (beidseitig pulverbeschichtet)
  • 1 oder 2 Teilnehmer
  • 1 Orbitposition (z. B. Astra 19,2° Ost)
  • Optimal für Wand- und Dachmontage
  • LNB mit Wetterschutzgehäuse
Local oscillator
Low band: 9,75 GHz
High band: 10,7 GHz
Phase noise: -75
Accuracy: ± 1 MHz
Temperature drift: ± 0,5 MHz
LNB control
Band switch: 22 kHz
Vertical: 10,5 ... 14 V
Horizontal: 16 ... 23 V
General characteristics
Material: Aluminium
Material strength: 1,5 mm
Coating: Powder-coated on both sites
Colour: beige, slate-grey, brick-red, green
Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz
Noise factor
Lower frequency range: 0,6 dB max.
Upper frequency range: 0,6 dB max.
Noise figure: typ. 0,1 dB
Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz
Power supply
Power consumption: max. 140 mA
Prepared for
Number of orbit positions: 1
Number of clients: 2
Technical data
Outputs: 2
Rated measurement: 0,65 m
F/D: 0,69
G/T: 14,5
Offset angle: 27 °
Gain: 35,7 dBi @11,3 GHz
Mast Ø: 65 mm max.
Feed reception: for UNYSAT-Universal-LNB
Amplification: 58 ... 64 dB
Scope of Delivery
Satellite dish antenna SATMAN 65, AZ/EL bracket mount, UNYSAT-Twin-LNB, screws, installation instructions
