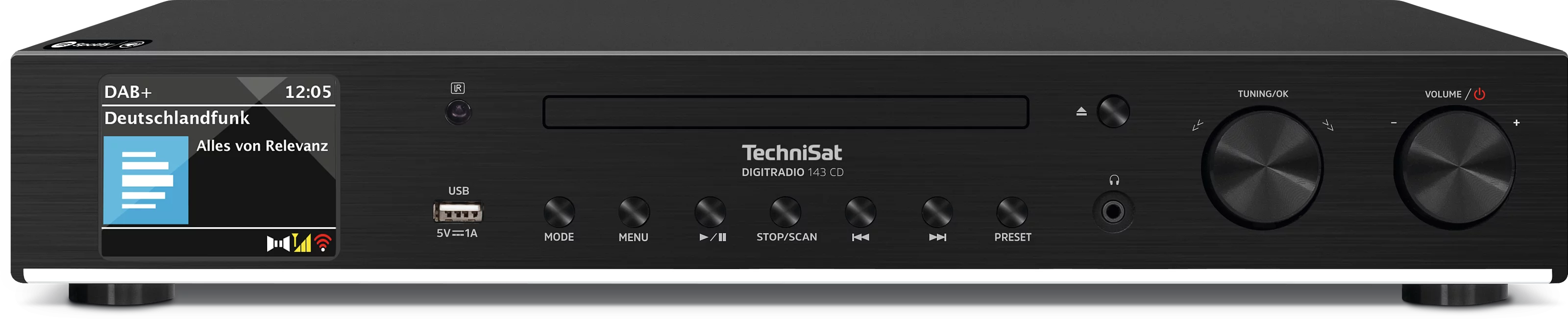

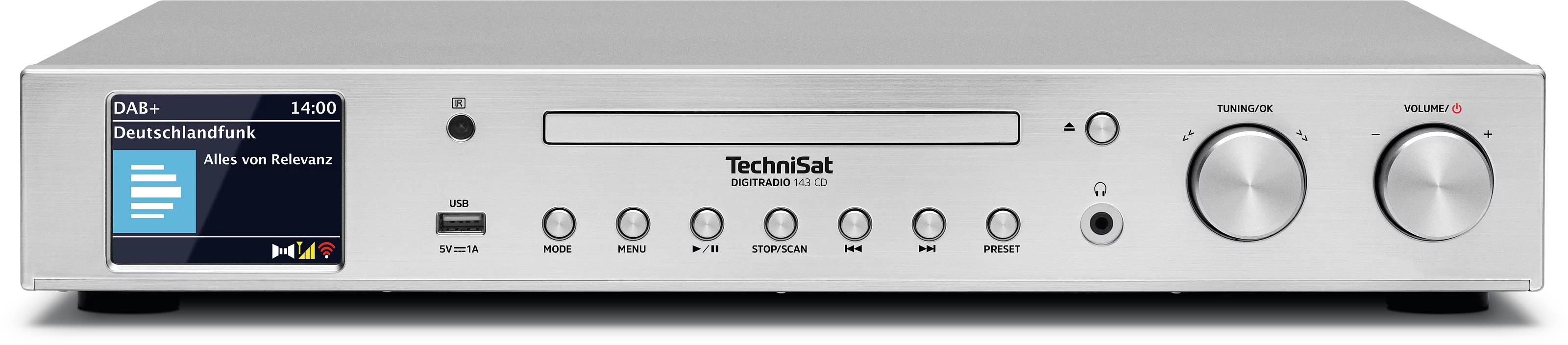

DIGITRADIO 143 CD (V3)

DIGITRADIO 143 CD (V3)

Hi-Fi component for receiving DAB+, with streaming functions and a CD player

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
Black	4019588039896	0000/3989	3,4 kg	2,63 kg	43,5 x 7,5 x 29 cm	50,5 x 13,25 x 34 cm
Silver	4019588139893	0001/3989	3,4 kg	2,63 kg	43,5 x 7,5 x 29 cm	50,5 x 13,25 x 34 cm

Top Features

Tuner without built-in speakers, for upgrading a stereo system with DAB+/DAB, FM, internet radio, and many streaming options – even CDs and MP3 files can be played

With a width of 43.5 cm, the digital hi-fi component fits perfectly into many systems; control is via the device, remote control, or the UNDOK and OKTIV app

The Hi-Fi radio receiver enables music streaming in the home network and Bluetooth audio reception – alarm function, clock, and the dimmable 3.2-inch color display complete the receiver’s feature set

Connection variety: USB, analog audio out & in L/R, RCA, optical & coaxial digital output, headphone jack (3.5 mm), RJ45 Ethernet, connector for external antenna (F socket)

sonstiges
bf_filter_anschluesse: Wi-Fi
bf_filter_operating_mode: Mains operation
abmasse_portabel: No
abmasse_stationaer: Yes
bf_filter_austattung: Bluetooth

WLAN
WLAN: 802.11 a / b / g / n (2.4 GHz and 5 GHz band supported)

Ambient operating conditions
Humidity: 5 - 90 % relative air humidity (non-condensing)
Ambient temperature: 5 - 35 °C

Bluetooth Version & Profile
Bluetooth version: 4,2
AVRCP (Audio Video Remote Control Profile): Yes
A2DP (Advanced Audio Distribution Profile ): Yes

Connections
Digital optical audio out: Yes
Digital electric audio output (S/PDIF): Yes
Audio out analogue (RCA): Yes
Audio input analogue (RCA): Yes
Headphone connection jack (3,5 mm): 1
connector for external aerial (RF connector): 1
USB: 1

Display
Type: TFT colour display (3.2")
Size: 3,2 in
Resolution (vertical and horizontal): 240 x 320
Dimmable: Yes
RadioVIS: Yes

functions
MP3 playback via USB: Yes
USB charging function: Yes
CD player with MP3: Yes

Handling/comfort
Clock: Yes
Automatic time reset following a power cut: Yes
Alarm: Yes
Sleep timer: Yes
Snooze: Yes
Remote control: Yes
Favourites programme manager DAB+: 30
Favourites programme manager Internet: 30
Favourites programme manager FM: 30

Loudspeakers
Equalizer (preset): Yes

Network & communication
Bluetooth: Yes

Other features
OSD languages: English, German, French, Polish, Italian, Dutch, Norwegian, Danish, Swedish, Finnish, Spanish, Turkish, Portuguese, Multilingual

Power consumption
Standby: max. 0,73 W
Power consumption in standby mode with active network connection: max. 1,7 W
In operation: max. 15 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Type of power supply: internal

Radio / reception
DAB+: 174 - 240 MHz
FM/RDS: 87,5 - 108 MHz
Internet radio: Yes
Aerial: DAB/FM aerial

Radio type
radio adapter: Yes
stationary radio: Yes

Streaming
Bluetooth audio streaming: Yes
Spotify Free: Yes

Supported formats & codecs
Audio-Formats: AAC, MP3

Scope of Delivery
DIGITRADIO 143 CD (V3), dipole antenna, remote control, user manual
