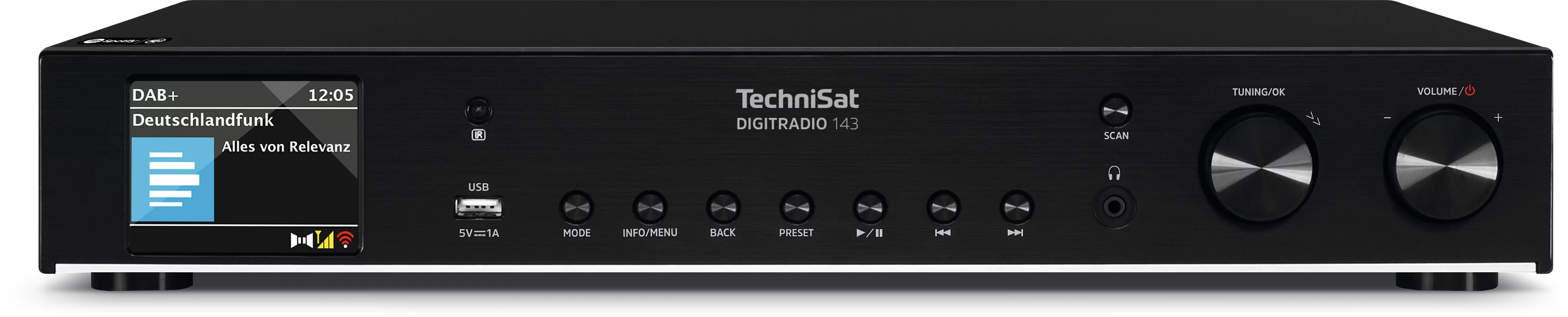

DIGITRADIO 143 (V3)

DIGITRADIO 143 (V3)

Hi-fi component for receiving DAB+, with streaming functions

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
black	4019588029477	0000/2947	2,99 kg	2,25 kg	43,5 x 7,5 x 29 cm	50 x 34 x 13 cm

Top Features

Tuner without built-in speakers, for upgrading a stereo system with DAB+/DAB, FM, internet radio, and streaming options – even MP3 files can be played

With a width of 43.5 cm, the digital hi-fi component fits perfectly into many systems; control via remote control or app

The Hi-Fi radio receiver supports Spotify music streaming and Bluetooth audio reception / alarm function, clock, and the dimmable 3.2-inch color display complete the receiver’s feature set

Connection variety: USB, analog audio out & in L/R, RCA, optical & coaxial digital output, headphone jack (3.5 mm), connector for external antenna (F socket)

sonstiges
abmasse_stationaer: Yes
bf_filter_operating_mode: Mains operation
abmasse_portabel: No
bf_filter_austattung: Bluetooth
bf_filter_anschluesse: Wi-Fi

WLAN
WLAN: 802.11 a / b / g / n (2.4 GHz and 5 GHz band supported)

Ambient operating conditions
Humidity: 5 - 90 % relative air humidity (non-condensing)
Ambient temperature: 5 - 35 °C

Bluetooth Version & Profile
Bluetooth version: 4,2
AVRCP (Audio Video Remote Control Profile): ja
A2DP (Advanced Audio Distribution Profile ): ja

Connections
Digital optical audio out: Yes
Digital electric audio output (S/PDIF): Yes
Audio out analogue (RCA): Yes
Audio out analogue (3,5 mm jack): 1
Audio in/AUX in: Yes
Headphone connection jack (3,5mm): 1
connector for external aerial (RF connector): 1
USB: 1

Display
Type: TFT colour display (3.2")
Size: 3,2 in
Resolution (vertical and horizontal): 240 x 320
Dimmable: Yes
RadioVIS: Yes

functions
MP3 playback via USB: Yes
USB charging function: Yes

Handling/comfort
Clock: Yes
Automatic time reset following a power cut: Yes
Alarm: Yes
Sleep timer: Yes
Snooze: Yes
Remote control: Yes
Favourites programme manager FM: 30
Favourites programme manager Internet: 30
Favourites programme manager DAB+: 30

Loudspeakers
Equalizer (preset): Yes

Network & communication
Bluetooth: Yes

Other features
OSD languages: English, German, French, Polish, Italian, Dutch, Czech, Norwegian, Danish, Finnish, Spanish, Multilingual, Turkish, Portuguese

Power consumption
Standby: max. 0,72 W
Power consumption in standby mode with active network connection: max. 1,65 W
In operation: max. 11 W

Power supply
Nominal voltage: 230 V
Frequency: 50 Hz
Type of power supply: Internal features

Radio / reception
DAB+: 174 - 240 MHz
FM/RDS: 87,5 - 108 MHz
Internet radio: Yes
Aerial: DAB+ / FM dipole antenna

Radio type
radio adapter: Yes
stationary radio: Yes

Streaming
Bluetooth audio streaming: Yes
Spotify Free: Yes

Supported formats & codecs
Audio-Formats: AAC, MP3

Scope of Delivery
DIGITRADIO 143 (V3), dipole antenna, remote control, user manual
