Datenblatt als PDF downloaden

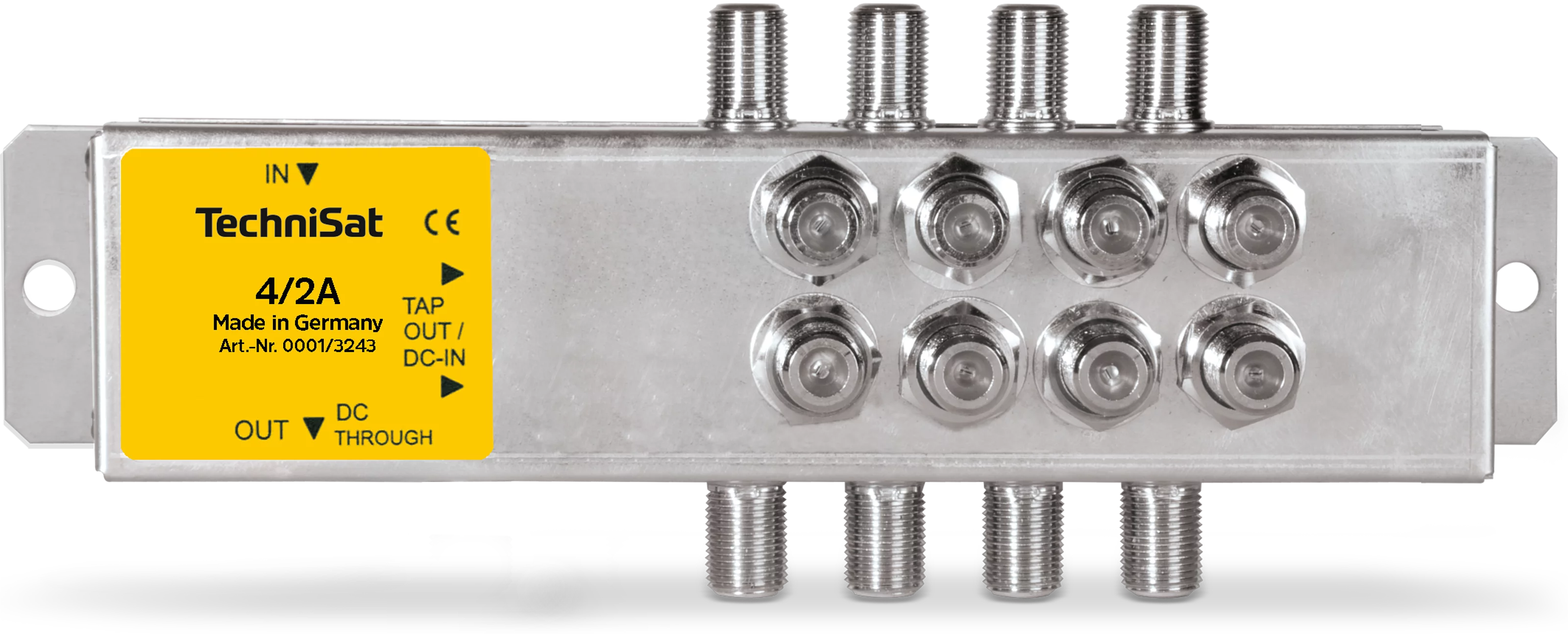

Active 2-way tap 4/2A
Active 2-way tap for 1 orbital position
| Colour |
EAN |
Item no. |
Device (W x H x D) |
Box |
| silver |
4019588132436 |
0001/3243 |
25 x 4,5 x 7,5 cm |
25 x 4,5 x 7,5 cm |
| Ambient operating conditions |
| Ambient temperature: -25 ... 55 °C |
| Amplification |
| Sat: 3 ... 6 dB fest |
| Decoupling |
| Output: 45 dB |
| Trunks: 60 dB |
| General characteristics |
| Top features: Same pitch of the F sockets as TECHNISWITCH and TECHNISYSTEM |
| Power supply |
| Power consumption: typ. 130 mA @15V |
| Reception range |
| Sat: 950 ... 2.150 MHz |
| Terrestrial: 47 - 862 MHz |
| Technical data |
| Satellite inputs: 4 |
| Transmission loss |
| Sat: 0,6 ... 1 dB |
| Scope of Delivery |
| Active 2-way tap 4/2A, instruction manual |
