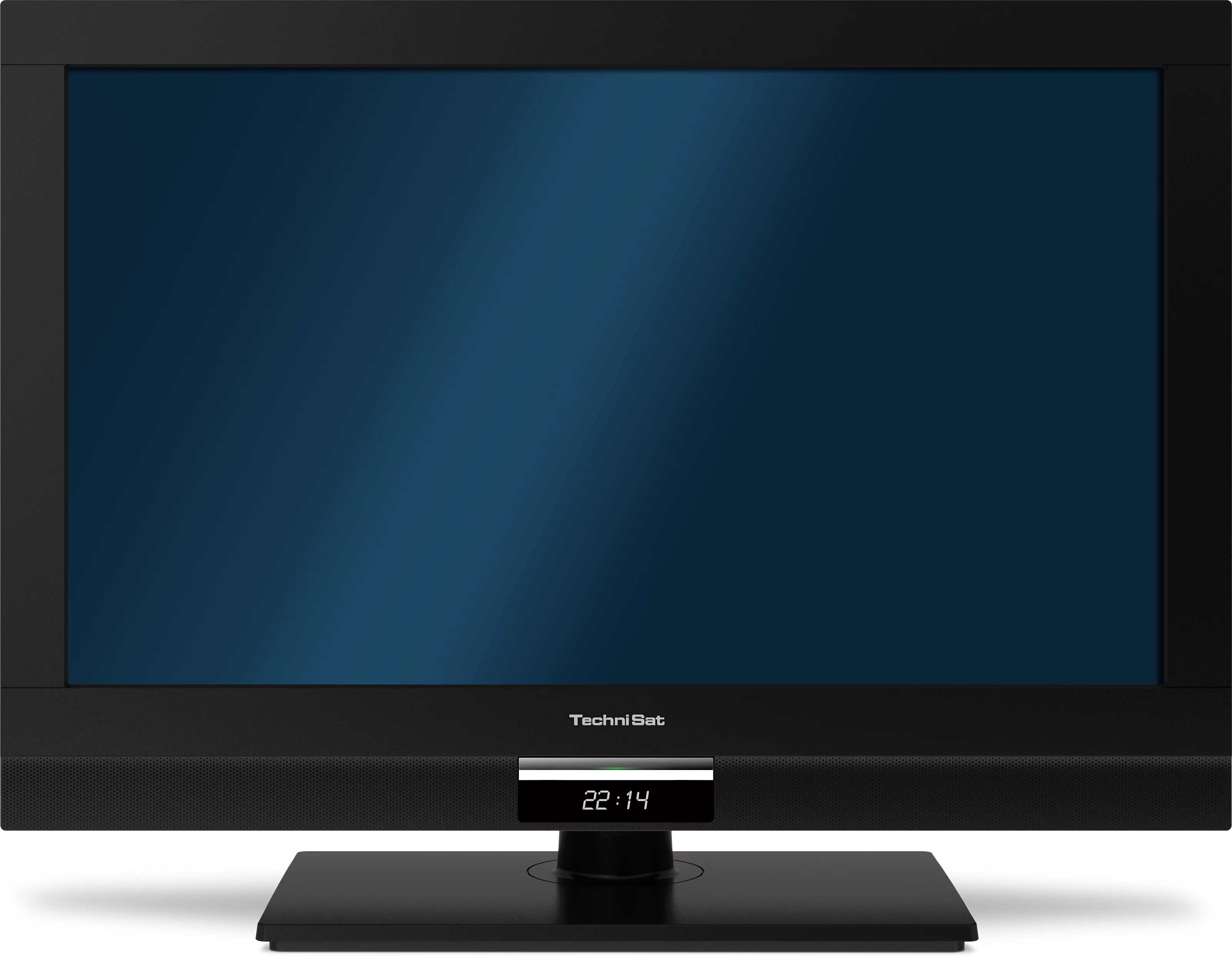

TECHNIVISION 26 HD
Full-HD Digital TV with eLED panel and HDTV multituner including digital DVR function via USB to record TV and radio broadcast on an external hard drive
| Weight without stand | EAN | Colour | Item no. | Weight (Box) | Weight | Unit without stand (W x H x D) | Device (W x H x D) | Box |
|---|---|---|---|---|---|---|---|---|
| 6,4 kg | 4019588267329 | black | 5026/7326 | 10 kg | 7 kg | 649 x 438 x 48 mm | 64,9 x 49 x 20,5 cm | 72,5 x 57,5 x 25 cm |
| 6,4 kg | 4019588267305 | silver/black | 5026/7306 | 9 kg | 9 kg | 649 x 438 x 48 mm | 64,9 x 49 x 20,5 cm | 72,5 x 57,5 x 25 cm |
| Top Features |
|---|
|
| Ambient operating conditions |
|---|
| Humidity: 10 - 75 % |
| Ambient temperature: 5 - 35 °C |
| LNB control |
|---|
| Band switch: 22 kHz |
| Vertical: <14 V without load, > 11.5 V at 400 mA V |
| DiSEqC: DiSEqC 1.0 and 1.2 / DiSEqC 1x Sat Channel Router |
| Current consumption: max (kurzschlussfest) 400 mA |
| Horizontal: <20 V without load, > 17.2 V at 400 mA V |
| TechniSat added value services |
|---|
| AUTOINSTALL: Yes |
| Audio |
|---|
| AC3 Dolby Digital bitstream out: Yes |
| Speakers: integrated broadband speaker system |
| Connections |
|---|
| HDMI™ (in): 2 |
| Common Interface Plus (CI+): Yes |
| Digital electric audio output (S/PDIF): Yes Cinch |
| Audio in/AUX in: Yes 3.5mm Klinke |
| VGA: Yes |
| YUV (component input): Yes Cinch |
| Scart: 1 (FBAS/RGB) |
| S Video: Yes |
| Video IN: 1 Cinch Composite |
| F socket: 1 |
| IEC-Connector: Yes |
| Decryption system |
|---|
| CI+: Yes |
| Dimensions / Weight |
|---|
| Set width without stand: 649 mm |
| Weight without stand: 6,4 kg |
| Set height without stand: 438 mm |
| Set depth without stand: 48 mm |
| Display |
|---|
| Size (cm): 66 cm |
| Frequency: 50 Hz |
| Format: 16:9 |
| Contrast ratio: 800:1 |
| Brightness: 400 cd/m² |
| Response time: 5 ms |
| Angle of view: 150° V / 160° H |
| Freeze frame: Yes |
| HD: Yes |
| Type: Full-HD eLED |
| 1080i: Yes |
| Resolution (vertical and horizontal): 1920 x 1080 |
| 720p: Yes |
| SD: Yes |
| Size (inches): 26 |
| Handling/comfort |
|---|
| Alarm: Yes |
| Clock: Yes |
| Sleep timer: Yes |
| Hotel mode |
|---|
| Customisable start screen: Yes |
| Configurable on times: Yes |
| Energy card function: Yes |
| USB cloning function: Yes |
| Multimedia connectors: Yes |
| Menu locking: Yes |
| Integrated LED clock: Yes |
| Radio mode: Yes |
| Mixing of channel slots: Yes |
| Multicode remote control: Yes |
| Fireproofed housing: Yes |
| materials contained |
|---|
| Lead: Yes |
| Other features |
|---|
| OSD languages: German, Spanish, Hungarian, Czech, Portuguese, Turkish, Polish, French, Italian, Russian, English, Greek, Swedish, Dutch |
| Total programme memory: 5.000 |
| Regional channel selection: Yes |
| Power consumption |
|---|
| SFIplus updating: 19,8 W |
| Software update: 19,8 W |
| Energy class: B |
| Standby fast start: 19 W |
| Standby LED: 0,64 W |
| In operation: 42 W |
| annual energy consumption when switched on: 61 kilowatt hour per annum |
| Off status: 0 W |
| Power switch: Yes |
| Power supply |
|---|
| Nominal voltage: 230 V |
| Frequency: 50 Hz |
| Mains adapter: internal |
| Supported formats & codecs |
|---|
| MPEG-2: Yes |
| Video-Formats: TS4, TS, VOB |
| JPEG: Yes |
| MP3: Yes |
| Tuner |
|---|
| Tuner type: HDTV-Multituner |
| DVB-S tuner: 1 |
| DVB-C Tuner: 1 |
| DVB-T Tuner: 1 |
| Analogue UHF/VHF/CATV tuner: 1 |
| TECHNIROUTER ready: Yes |
| Input impedance: 75 Ω |
| Reception on: HDTV (Mpeg-4+2) SD (MPEG-2) |
| Tuner - Analogue |
|---|
| Video standards: B/G stereo, D/K mono, L/L' |
| Reception range: 47 ... 862 MHz |
| Tuner - Cable |
|---|
| Demodulation: 16/32/64/128/256 QAM |
| Reception range: 51 ... 858 MHz |
| Symbol rate: 1,7 ... 7 |
| FEC: Reed-Solomon |
| Tuner - Sat |
|---|
| Viterbi rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
| Reception range: 950 ... 2.150 MHz |
| DVB-S2: 8PSK - QPSK |
| DVB-S: QPSK |
| DVB-S: 2 ... 45 |
| DVB-S2: 10 ... 31 |
| FEC: Viterbi and Reed-Solomon |
| Tuner - Terrestrial |
|---|
| Reception range 2: 470 ... 860 MHz |
| Transmission mode: 2k/8k |
| Demodulation: COFDM |
| Power supply: 0,05 A |
| Reception range 1: 174 ... 230 MHz |
| Voltage supply: 5 V |
| Bitrate: 4 ... 32 |
| wall bracket |
|---|
| VESA wall mounting standards: VESA 100 x 100 |
| Scope of Delivery |
|---|
| TechniVision 26 HD, Stand, 230 V mains power cable, TechniControl remote control incl. batteries, Manual |
Test Results TECHNIVISION 26 HD
Test-Sieger
PC-Welt (07/2011)
