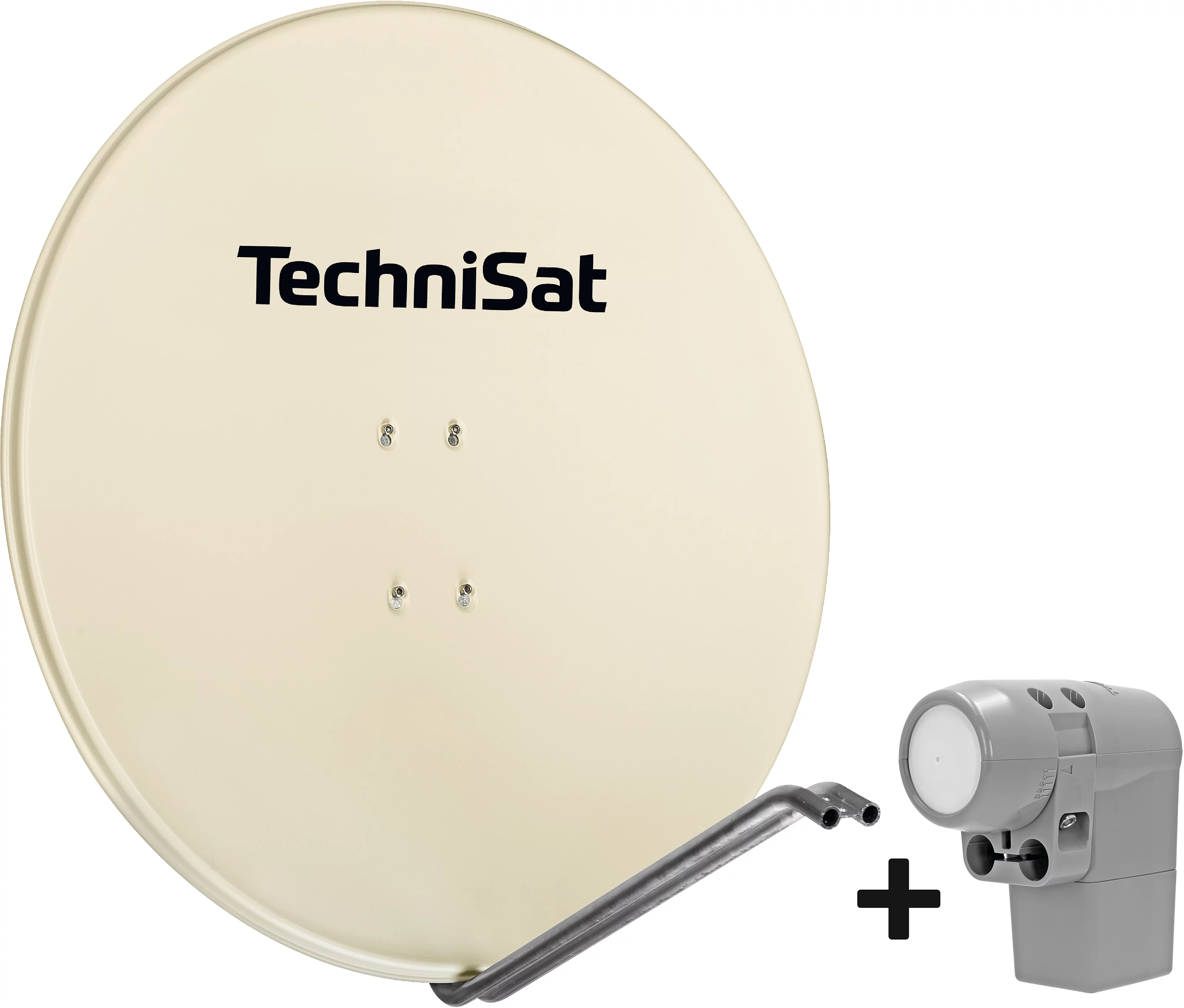

SATMAN 850 PLUS with UNYSAT-Quattro-LNB

SATMAN 850 PLUS with UNYSAT-Quattro-LNB

SATMAN external unit with pre-assembled AZ/EL mount, 85 cm Ø
Colour EAN Item no. Device (W x H x D) Box
brick/red 4019588489882 6485/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
fir/green 4019588289888 6285/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
yellow with Smiley 4019588589889 6585/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
polar white 4019588789883 6785/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
beige 4019588089884 6085/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
slate/grey 4019588389885 6385/9880 89 x 85 x 7,5 cm 92,75 x 88 x 23,5 cm
Top Features
  • 85 cm dish made of first-class aluminum (powder-coated on both sides)
  • For multi-switch distribution
  • 1 orbit position (e.g. Astra 19.2 ° East)
  • Ideal for wall and roof mounting
  • LNB with weatherproof housing
Noise factor
Lower frequency range: 0,6 dB max.
Upper frequency range: 0,6 dB max.
Noise figure: typ. 0,75 dB
Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz
Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz
LNB control
Vertical: 11,5 - 14,5 V
Horizontal: 16 - 19 V
Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %
Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Temperature drift: ± 2,5 MHz
Phase noise: -85 @10kHz
Accuracy: ± 1 MHz
Technical data
Rated measurement: 0,85 m
F/D: 0,67
G/T: 17,2
Offset angle: 21 °
Gain: 38,2 dBi @11,3 GHz
Mast Ø: 65 mm max.
Feed reception: for UNYSAT-Universal-LNB
Prepared for
Number of clients: 4
Number of orbit positions: 1
General characteristics
Material: Aluminium
Material strength: 1,6 mm
Coating: Powder-coated on both sites
Colour: beige, polar white, slate-grey, brick red, fir green, yellow with smiley
Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: 200 mA
Scope of Delivery
Satellite dish antenna SATMAN 850, AZ/EL bracket mount, LNB in weather-proof housing, screws, installation instructions
