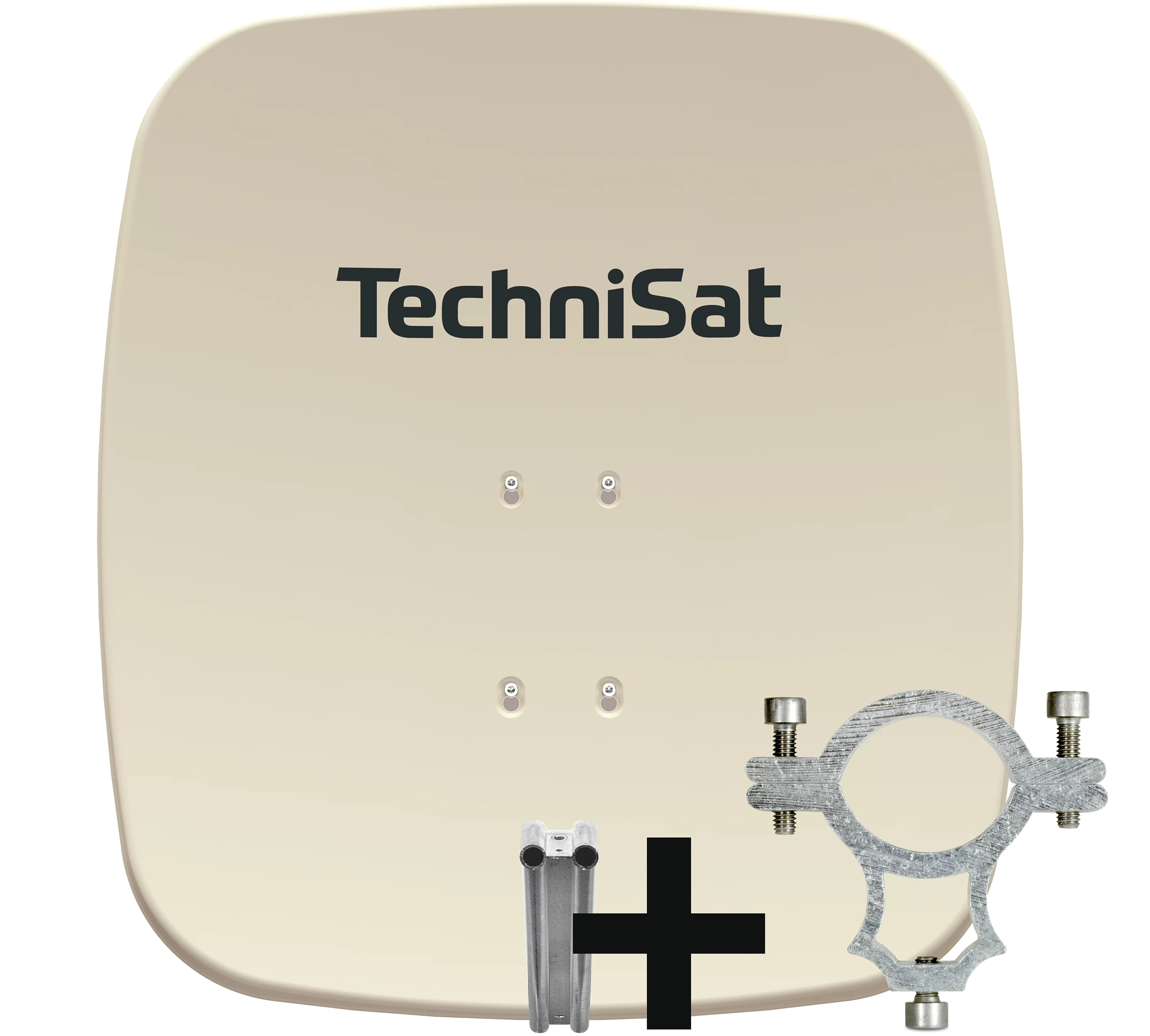

SATMAN 65 PLUS incl. LNB retaining clamp
65 cm aluminium DigitalSat antenna with fully pre-assembled AZ/EL mount, including 40 mm LNB clamp
| Colour |
EAN |
Item no. |
Box |
| yellow with Smiley |
4019588561441 |
2565/1444 |
69,2 x 77,8 x 19,5 cm |
| brick red |
4019588461444 |
2465/1444 |
69,2 x 77,8 x 19,5 cm |
| slate grey |
4019588361447 |
2365/1444 |
69,2 x 77,8 x 19,5 cm |
| polar white |
4019588761445 |
2765/1444 |
69,2 x 77,8 x 19,5 cm |
| beige |
4019588061446 |
2065/1444 |
69,2 x 77,8 x 19,5 cm |
| Top Features |
- 65 cm dish made of first-class aluminum (powder-coated on both sides)
- For LNB's with feed ø 40 mm
- Ideal for wall and roof mounting
|
| Filter-Navigation |
| Features: without LNB |
| Diameter: 65 cm |
| General characteristics |
| Material strength: 1,5 mm |
| Coating: Powder-coated on both sites |
| Material: Aluminium |
| Technical data |
| Rated measurement: 0,65 m |
| F/D: 0,6 |
| G/T: 14,5 |
| Gain: 35,7 dBi ; bei 11,3GHz |
| Offset angle: 27 ° |
| Mast Ø: 65 mm max. |
| Feed reception: für 40 mm LNB |
| Scope of Delivery |
| DigitalSat antenna, AZ/EL mount, LNB clamp (40 mm), screws |
