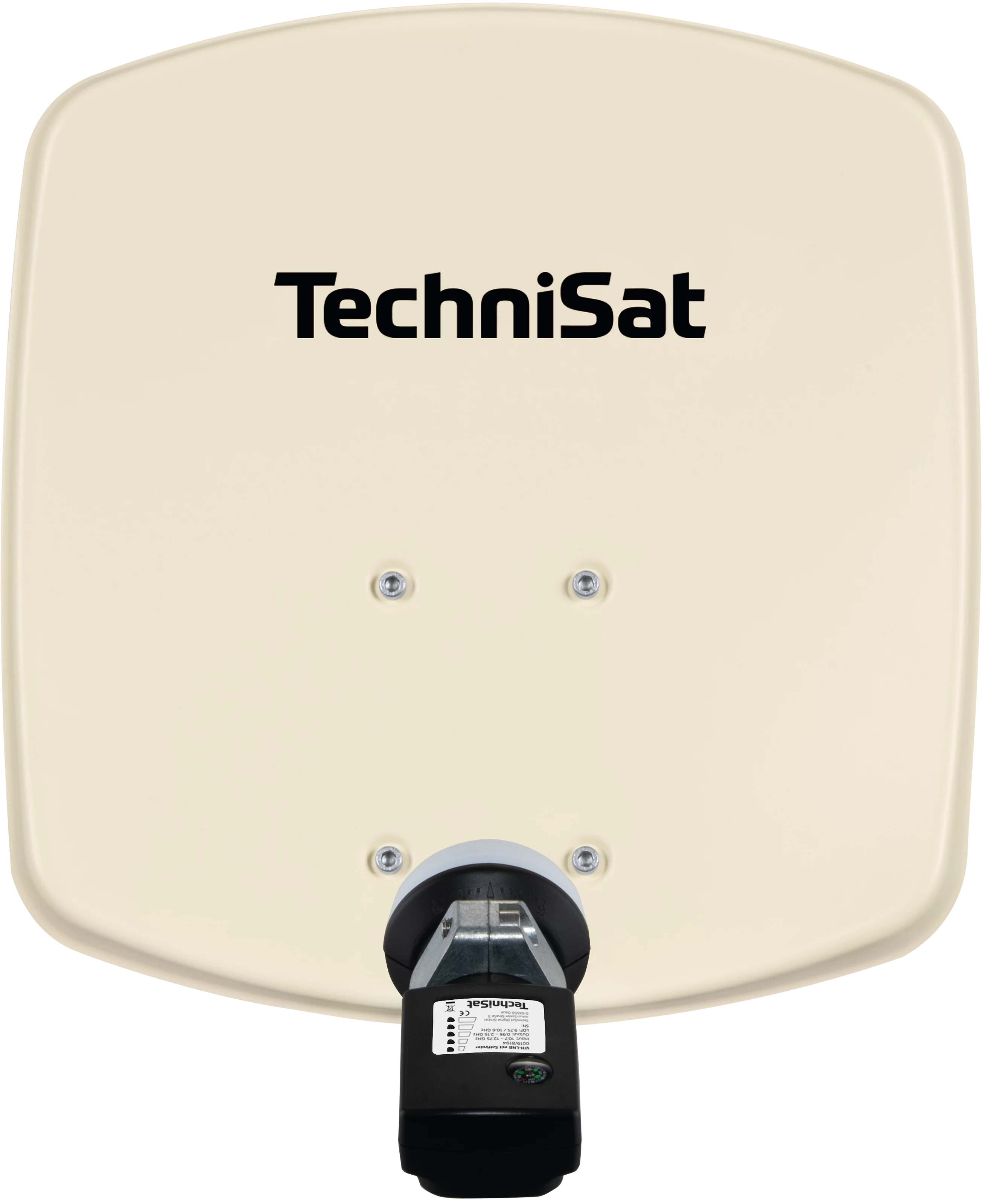

DIGIDISH 33 mit Satfinder V/H-LNB
The DigiDish 33 is enormously high-performance for its size and takes up very little space
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588031951 |
beige |
1033/2195 |
2,8 kg |
2 kg |
33 x 35 cm |
40,5 x 39,5 x 22 cm |
| 4019588331952 |
slate grey |
1333/2195 |
2,8 kg |
2 kg |
33 x 35 cm |
40,5 x 39,5 x 22 cm |
| 4019588431959 |
brick red |
1433/2195 |
2,8 kg |
2 kg |
33 x 35 cm |
40,5 x 39,5 x 22 cm |
| 4019588731950 |
polar white |
1733/2195 |
2,8 kg |
2 kg |
33 x 35 cm |
40,5 x 39,5 x 22 cm |
| 4019588531956 |
yellow with smiley |
1533/2195 |
2,8 kg |
2 kg |
33 x 35 cm |
40,5 x 39,5 x 22 cm |
| Top Features |
- 1 orbital position (for example Astra 19.2 ° East)
- Especially suitable for balcony installation / Ideal for the city
- Ideal for ground and wall mounting
|
| Local oscillator |
| Low band: 9,74 GHz |
| High band: 10,7 GHz |
| Temperature drift: ± 2,5 MHz |
| Accuracy: ± 1 MHz |
| Phase noise: -75 @10kHz |
| Filter-Navigation |
| Number participants: 1 |
| Diameter: 33 cm |
| Features: with LNB |
| Number satellites: 1 |
| LNB control |
| Vertical: 12 - 14,5 V |
| Horizontal: 16 - 20 V |
| Band switch: 22 kHz |
| General characteristics |
| Material: Aluminium |
| Material strength: 1 mm |
| Coating: Powder-coated on both sites |
| including Wall bracket: Yes |
| Handling/comfort |
| SAT-Finder: Yes |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,7 dB max. |
| Upper frequency range: 0,7 dB max. |
| Noise figure: typ. 0,9 dB |
| Output frequency range |
| Low band: 950 - 1.950 MHz |
| High band: 1.100 - 2.150 MHz |
| Power supply |
| LNB voltage supply: 2 ... 20 V |
| Power consumption: max. 150 mA |
| Prepared for |
| Number of clients: 1 |
| Number of orbit positions: 1 |
| Technical data |
| Rated measurement: 0,33 m |
| F/D: 0,6 |
| Offset angle: 30 ° |
| Gain: 30 dBi @11,3 GHz |
| Feed reception: 40 mm |
| Scope of Delivery |
| Satellite dish 33 cm, LNB, Wall bracket, Screws, Tool, Mounting instruction |
