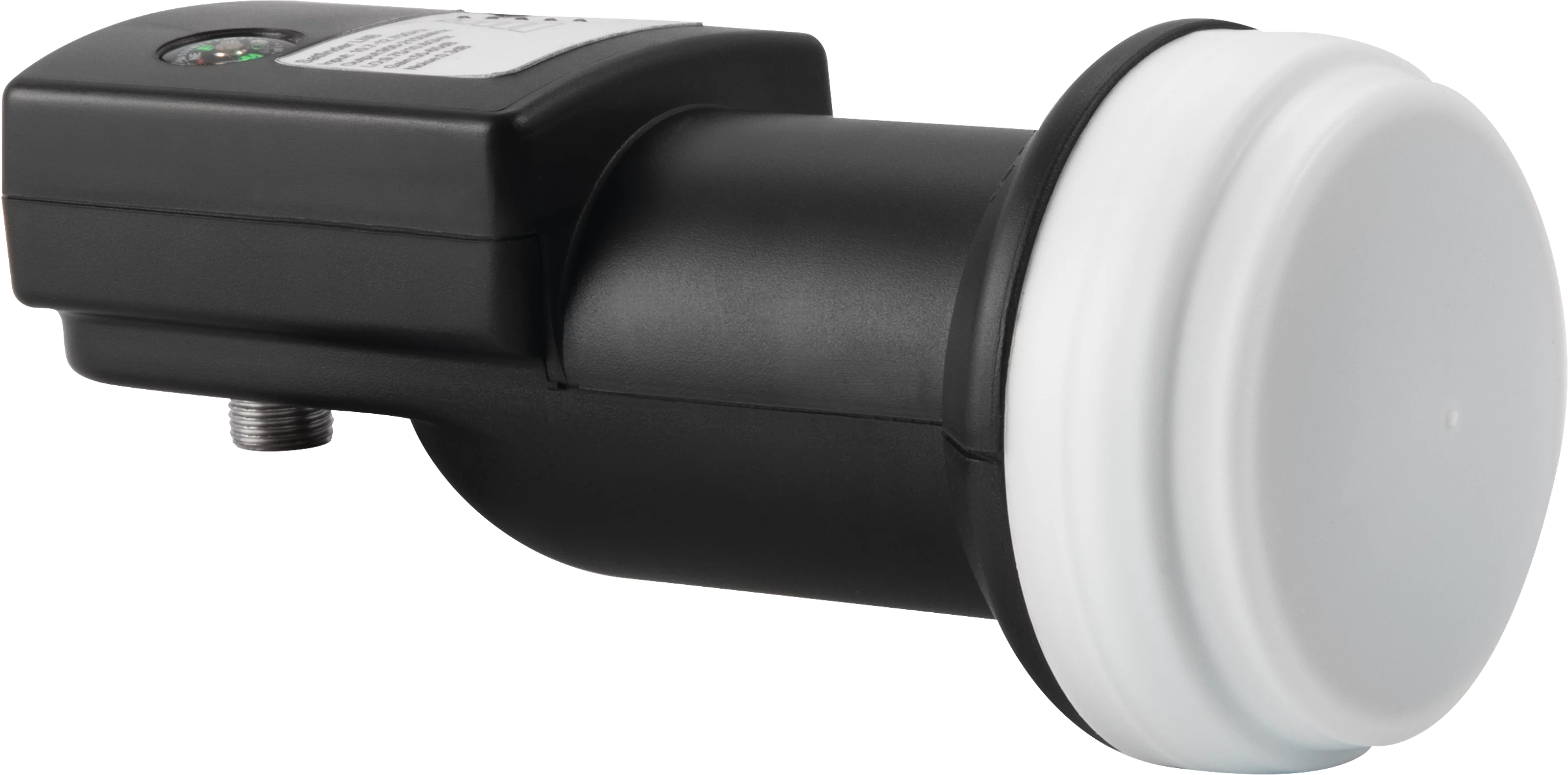

Universal-V/H-LNB with satellite finder
Digital LNB with 1 legacy output and satellite finder
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| black |
4019588198944 |
0019/8194 |
120 g |
102 g |
12,9 x 5,7 x 5,7 cm |
14 x 6,3 x 6,3 cm |
| Top Features |
- Signal converter for single-user operation
|
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,6 GHz |
| Accuracy: ± 1 MHz |
| Temperature drift: ± 2,5 MHz |
| Phase noise: -75 @10kHz |
| LNB control |
| Vertical: 12 ... 14,5 V |
| Horizontal: 16 ... 20 V |
| Band switch: 22 kHz |
| Ambient operating conditions |
| Humidity: 10 ... 95 % |
| Ambient temperature: -10 ... 60 °C |
| Handling/comfort |
| SAT-Finder: Yes |
| Input frequency range |
| Low band: 10,7 ... 11,9 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Noise figure: typ. 0,9 dB |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Power supply |
| LNB voltage supply: 12 ... 20 V |
| Power consumption: max. 150 mA |
| Prepared for |
| Number of orbit positions: 1 |
| Number of clients: 1 |
| Technical data |
| Feed reception: 40 mm |
| Amplification: 56 ... 65 dB |
| Outputs: 1 |
| Impedance: 75 Ω |
| Connector type: F |
| Scope of Delivery |
| UNYSAT Universal-V/H-LNB with satellite finder |
