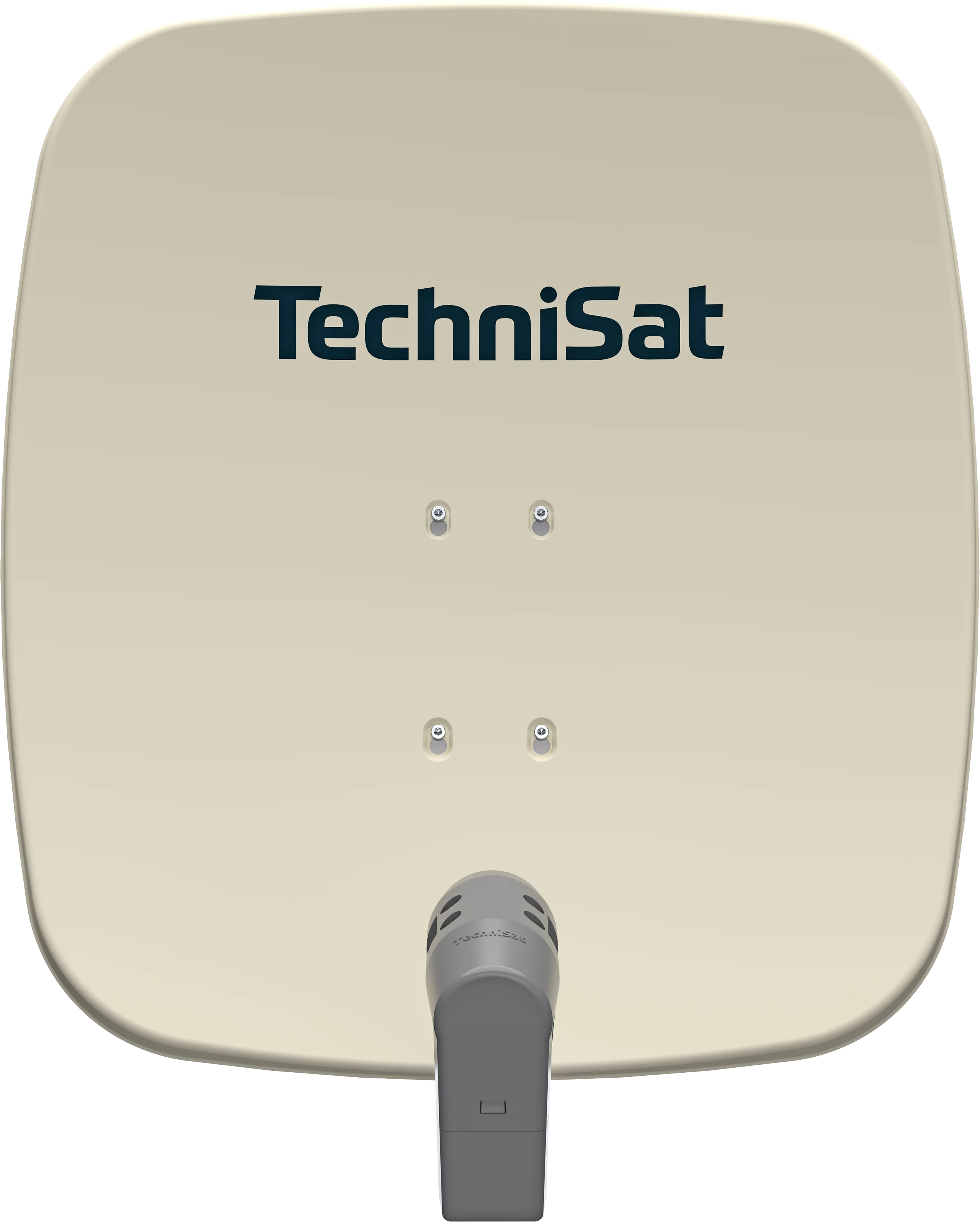

SATMAN 65 PLUS with UNYSAT-Quattro-Switch LNB
SATMAN external unit with pre-assembled AZ/EL mount, 65 cm Ø
| EAN |
Colour |
Item no. |
| 4019588569980 |
yellow with Smiley |
2565/9980 |
| 4019588069985 |
beige |
2065/9980 |
| 4019588679986 |
polar white |
2765/9980 |
| 4019588369986 |
slate/grey |
2365/9980 |
| 4019588469983 |
brick/red |
2465/9980 |
| Top Features |
- 65 cm Spiegel aus erstklassigem Aluminium (beidseitig pulverbeschichtet)
- 1 Orbitposition (z. B. Astra 19,2° Ost)
- Optimal für Wand- und Dachmontage
- LNB mit Wetterschutzgehäuse
|
| Local oscillator |
| Low band: 9,75 GHz |
| High band: 10,7 GHz |
| Temperature drift: ± 2,5 MHz |
| Accuracy: ± 1 MHz |
| Phase noise: -85 @10kHz |
| LNB control |
| Vertical: 11,5 - 14,5 V |
| Horizontal: 16 - 19 V |
| General characteristics |
| Material: Aluminium |
| Material strength: 1,5 mm |
| Coating: Powder-coated on both sites |
| Colour: beige, slate-grey, brick-red, green |
| Input frequency range |
| Low band: 10,7 ... 11,7 GHz |
| High band: 11,7 ... 12,75 GHz |
| Noise factor |
| Lower frequency range: 0,6 dB max. |
| Upper frequency range: 0,6 dB max. |
| Output frequency range |
| Low band: 950 ... 1.950 MHz |
| High band: 1.100 ... 2.150 MHz |
| Prepared for |
| Number of orbit positions: 1 |
| Number of clients: 4 |
| Technical data |
| Rated measurement: 0,65 m |
| F/D: 0,69 |
| G/T: 14,5 |
| Offset angle: 27 ° |
| Gain: 35,7 dBi @11,3 GHz |
| Mast Ø: 65 mm max. |
| Feed reception: for UNYSAT-Universal-LNB |
| Scope of Delivery |
| Satellite dish antenna SATMAN 65, AZ/EL bracket mount, UNYSAT-Quattro-Switch-LNB, screws, installation instructions |
