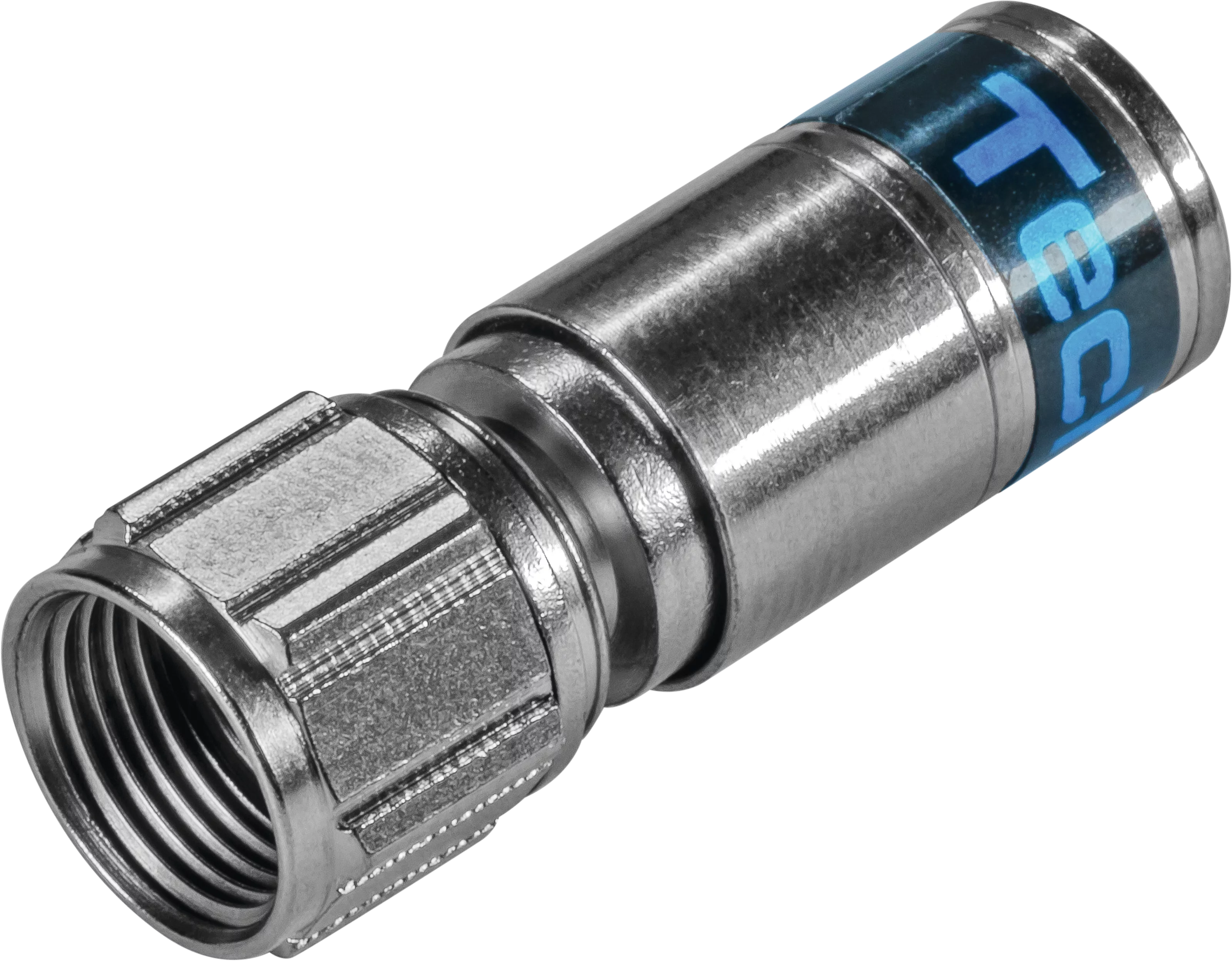

F Compression connector 7.0
Compression F connector for 7mm cable
| Colour |
EAN |
Item no. |
Device (W x H x D) |
Box |
| silver |
4019588133488 |
0001/3348 |
1 x 1 x 1 cm |
1 x 1 x 1 cm |
| Top Features |
- Specially for COAXSAT 140-4.6 cable from TechniSat
- Ohne Innenhülse - vereinfachte Montage
- Suitable for many RG6 coaxial cables
- Installation with compression tool 0000/3339 from TechniSat
|
| Attenuation |
| 10 MHz: 0,02 |
| 100 MHz: 0,02 |
| 450 MHz: 0,03 |
| 800 MHz: 0,05 |
| 862 MHz: 0,04 |
| 1000 MHz: 0,06 |
| 1350 MHz: 0,11 |
| 2250 MHz: 0,11 |
| Return loss |
| 65 - 470 MHz: ≥ 34 dB |
| 470 - 1800 MHz: ≥ 33 dB |
| 1800 - 2450MHz: ≥ 33 dB |
| Shielding |
| 30 - 1000 MHz: > 105 dB CoMeT |
| 1000 - 2250 MHz: > 95 dB CoMeT |
| Technical data |
| Protection class: IPX8 |
| Impedance: 75 Ω |
| Diameter dielectric: max. 4,6 mm |
| Diameter with coating: 6,8 ... 7 mm |
| Transfer impedance |
| 5MHz: < 5 |
| 30 MHz: < 2,5 |
| Scope of Delivery |
| Pack: 100 piece |
