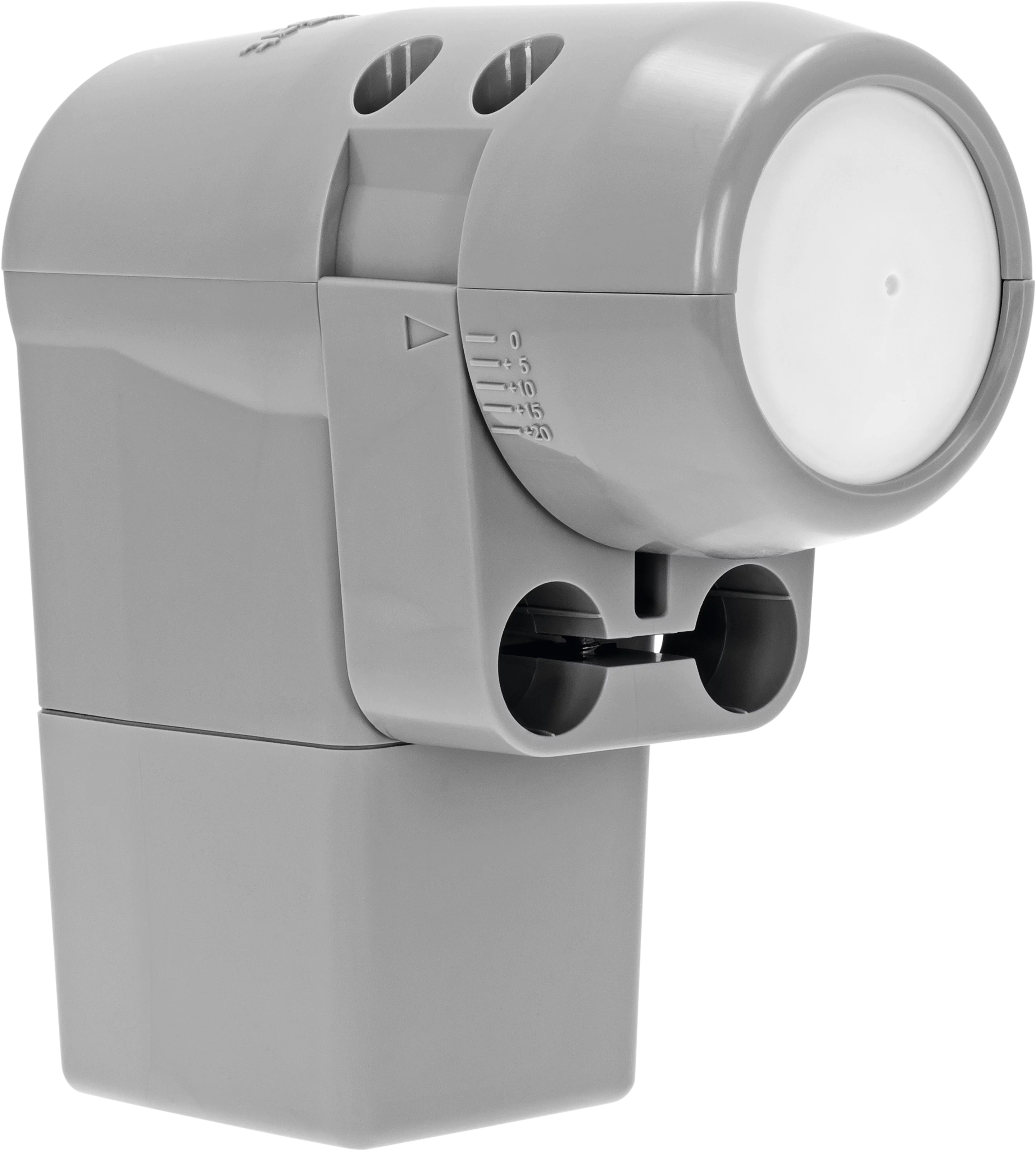

UNYSAT Universal-Octo-LNB

UNYSAT Universal-Octo-LNB

Digital LNB with 8 legacy outputs

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
grey	4019588109889	0010/8988	486 g	432 g	13,5 x 14,5 x 6 cm	15 x 17 x 7,5 cm

Top Features

The UNYSAT Universal Octo-LNB fits all AZ/EL holders of SATMAN satellite dishes and enables reception of TV, radio, and multimedia services broadcast via satellite

Signal converter for use by up to eight users. The LNB has eight outputs, each of which can be connected directly to a satellite receiver or smart TV without a multiswitch or splitter

Weather protection housing: UV-resistant and hail-proof with generous cross-polarization adjustment up to 15 degrees and extendable cover to protect F-connectors from rain, etc.

Easy and quick installation without mounting bracket, LNB with the latest chip technology for long life, stable oscillator frequencies, and high isolation, LTE interference resistant

sonstiges
bf_filter_number_of_participants: 8
bf_filter_number_satellites: 1

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 2,5 MHz
Phase noise: -83 @10kHz

LNB control
Band switch: 22 kHz
Vertical: 11,5 ... 14,5 V
Horizontal: 16 ... 19 V

Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Noise figure: typ. 1 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
Power consumption: 210 mA

Prepared for
Number of clients: 8
Number of orbit positions: 1

Technical data
Outputs: 8
Feed reception: For SATMAN
Skew: -20 ... 20 °
Amplification: 58 ... 65 dB
Connector type: F female
Impedance: 75 Ω

Scope of Delivery
UNYSAT Universal-Octo-LNB
