UNYSAT Universal-Quattro-Switch-LNB

UNYSAT Universal-Quattro-Switch-LNB

Digital LNB with 4 legacy outputs

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
grey	4019588109803	0010/8980	420 g	366 g	13,5 x 14,5 x 6 cm	15 x 17 x 7,5 cm

Top Features

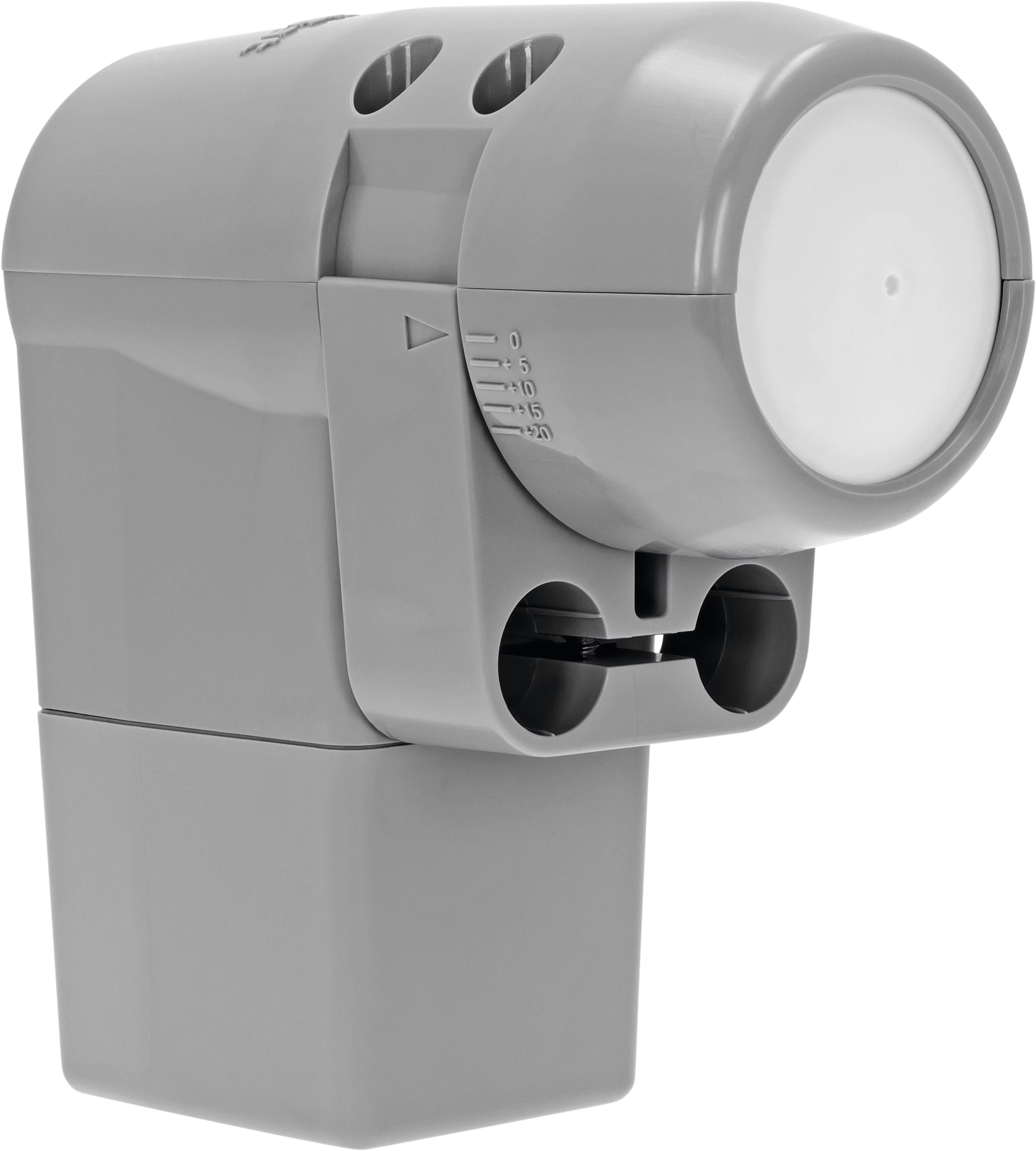

The UNYSAT Universal Quattro Switch LNB fits AZ/EL mounts of SATMAN satellite dishes and is used for processing TV, radio, and multimedia services broadcast via satellite

Signal converter for up to four users. The LNB has four outputs that can each be connected directly, without a multiswitch or splitter, to a satellite receiver or smart TV

UV-resistant, hail-proof housing with generous cross-polarization adjustment up to 15 degrees, extendable cover with embossed polarization markings to simplify installation

Easy and fast installation without bracket, LNB with the latest and most advanced CHIP technology for long service life, stable oscillator frequencies, and high isolation, LTE interference-proof

sonstiges
bf_filter_number_of_participants: 4
bf_filter_number_satellites: 1

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 2,5 MHz
Phase noise: -85 @10kHz

LNB control
Band switch: 22 kHz
Vertical: 10,5 ... 14,5 V
Horizontal: 16 ... 22 V

Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Noise figure: typ. 0,75 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
Power consumption: typ. 150 mA

Prepared for
Number of clients: 4
Number of orbit positions: 1

Technical data
Outputs: 4
Feed reception: For SATMAN
Skew: -20 ... 20 °
Impedance: 75 Ω
Amplification: 60 ... 65 dB
Connector type: F female

Scope of Delivery
Universal-Quattro-Switch-LNB
