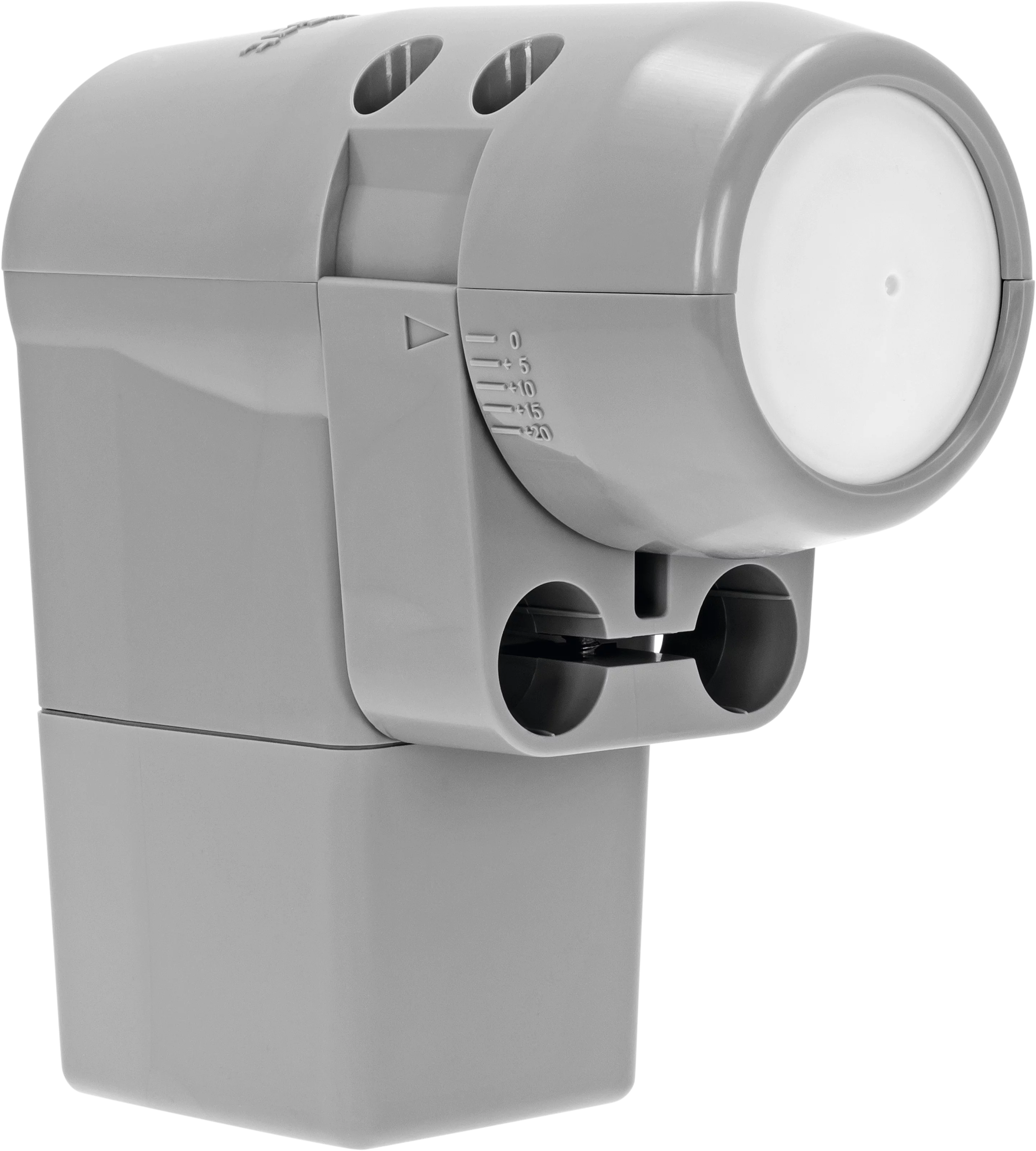

UNYSAT Universal-Quattro-LNB

UNYSAT Universal-Quattro-LNB

Digital LNB for multi-switch distribution

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
grey	4019588108806	0010/8880	420 g	420 g	13,5 x 14,5 x 6 cm	15 x 17 x 7,5 cm

Top Features

The UNYSAT Universal Quattro LNB fits AZ/EL mounts of SATMAN satellite dishes and is used for processing TV, radio, and multimedia services broadcast via satellite

Satellite reception for many: The Quattro LNB can only supply many users (receivers/TVs) with satellite signal in combination with a multiswitch, allowing independent program selection

UV-resistant, hail-proof housing with generous cross-polarization adjustment up to 15 degrees, extendable cover with embossed polarization markings to simplify installation

Easy and fast installation without bracket, LNB with the latest and most advanced CHIP technology for long service life, stable oscillator frequencies, and high isolation, LTE interference-proof

sonstiges
bf_filter_number_satellites: 1

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 2,5 MHz
Phase noise: -85 @10kHz

LNB control
Band switch: 22 kHz
Vertical: 11,5 ... 14,5 V
Horizontal: 16 ... 19 V

Ambient operating conditions
Ambient temperature: -40 ... 70 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Noise figure: typ. 0,75 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
LNB voltage supply: 11,5 ... 19 V
Power consumption: 200 mA

Prepared for
Number of orbit positions: 1

Technical data
Outputs: 4
Feed reception: For SATMAN
Skew: -20 ... 20 °
Connector type: F female
Amplification: 60 ... 67 dB
Impedance: 75 Ω

Scope of Delivery
Universal-Quattro-LNB
