TECHNIVOLT 2200 SMART

TECHNIVOLT 2200 SMART

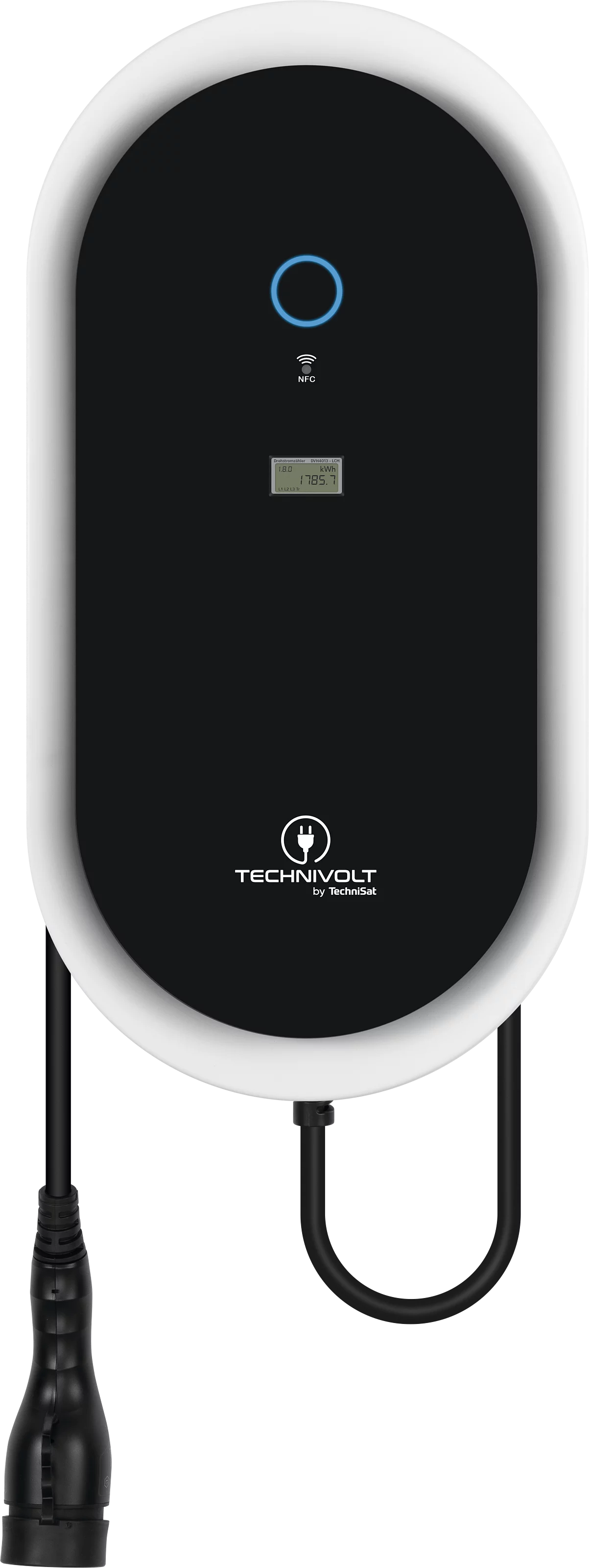

22 kW charging station with permanently connected charging cable according to IEC 62196-2 type 2

Cable length	Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
7,5 m	black/white	4019588763029	0007/6302	13,36 kg	10,41 kg	34 x 66 x 11,2 cm	39 x 78,5 x 24,5 cm
5 m	black/white	4019588063020	0000/6302	11,98 kg	11,98 kg	34 x 11,2 x 66 cm	48 x 22,2 x 71,3 cm

Top Features

For private home charging: TECHNIVOLT enables fast and safe charging at home with numerous advantages

Type 2 charging plug: TECHNIVOLT uses the widely adopted Type 2 plug in Europe, now considered standard, with 22kW for extra-fast car charging – includes permanently attached charging cable

Protected by RFID card: Access protection is sensible to prevent unauthorized charging. Use is only possible with registered user cards (2 included)

Also ideal in semi-public areas, e.g. company premises or parking garages for tenants. The integrated MID-certified meter allows for kilowatt-hour billing and shows this on the built-in display

sonstiges
bf_filter_financial_support: Eligible for KfW funding
bf_filter_charging_power: 22 kg/mm

Mechanical properties
Feedthrough for data cables: M25, for cables Ø 4-9 mm
Housing material: Plastic (flame retardant), glass
Bushing for power supply line: M32, fpr cables Ø 15-21 mm

RFID
Frequency: 13,56 MHz
Card type: MIFARE
Standard: ISO 14443A
UID: 4-byte, 7-byte

WLAN
IEEE 802.11g: Yes
WPA2: Yes
2,4 GHz: Yes
IEEE 802.11n: Yes
IEEE 802.11b: Yes

Ambient operating conditions
Operating altitude: 2.000 m ü.NN
Temperature: -25 ... 55 °C (without direct sunlight)
IP class: 54
Humidity: 5 ... 95 % (relative, no dew)
Shock resistance: IK08

Ambient storage conditions
Temperature: -30 ... 70 °C
Humidity: 5 ... 95 % (relative, no dew)

Mobile radio
WCDMA bands: B1/B8
EDGE bands: B3/B8
LTE FFD bands: B1/B3/B7/B8/B20/B28
Standard: 4G LTE Cat1
SIM card: Micro-SIM

Authorisation
RFID: Yes

Load management
Phases individual: Yes
Phase imbalance prevention: Yes
Time-dependent: Yes
Static: Yes
Dynamic: Yes

Protection
DC fault current detection: Internal RCM, IΔn ≥ 6 mA
MCB in the entrance: Tripping characteristic C
RCCB in the entrance: 4P-40A-30mA, Typ A

Output/vehicle connection
Charging Mode: Mode 3, IEC61851-1
Charging port: Fixed charging cable with type 2 plug, IEC-62196-2
Output voltage: 230 / 400 V
Charging current: 32 A
Charging power: 22 kW·h

Communication
Vehicle communication: PLC, ISO 15118 Plug-&-Charge
Internet / network: Ethernet, WLAN
Mobile data connection: Mobile radio
Charging point <> backend: OCPP Version 1.5, 1.6
User authorization: RFID
Modbus: Yes (TCP)
SMA SEMP: Yes
EEBUS: Yes

Network & communication
4G: Yes
TCP/IP: Yes
100Base-T: Yes
DHCP: Yes
HTTP: Yes

Power supply
Nominal current: 32 A
Power cord: max. 10 mm² Ø 15-21 mm
Rated frequency: 50 Hz
Nominal voltage: 230 / 400 V
Power consumption standby: typ. 4,2 W
Type of current: AC

Scope of Delivery
TECHNIVOLT 2200 SMART charging station, front glass pane, assembly instructions, operating instructions, assembly template, fastening set (4x Fischer SXRL 8 x 60 FUS A4), angle key (Torx-TR 20), locking screw for glass pane (Torx-TR 20 M4), 2x user RFID card
