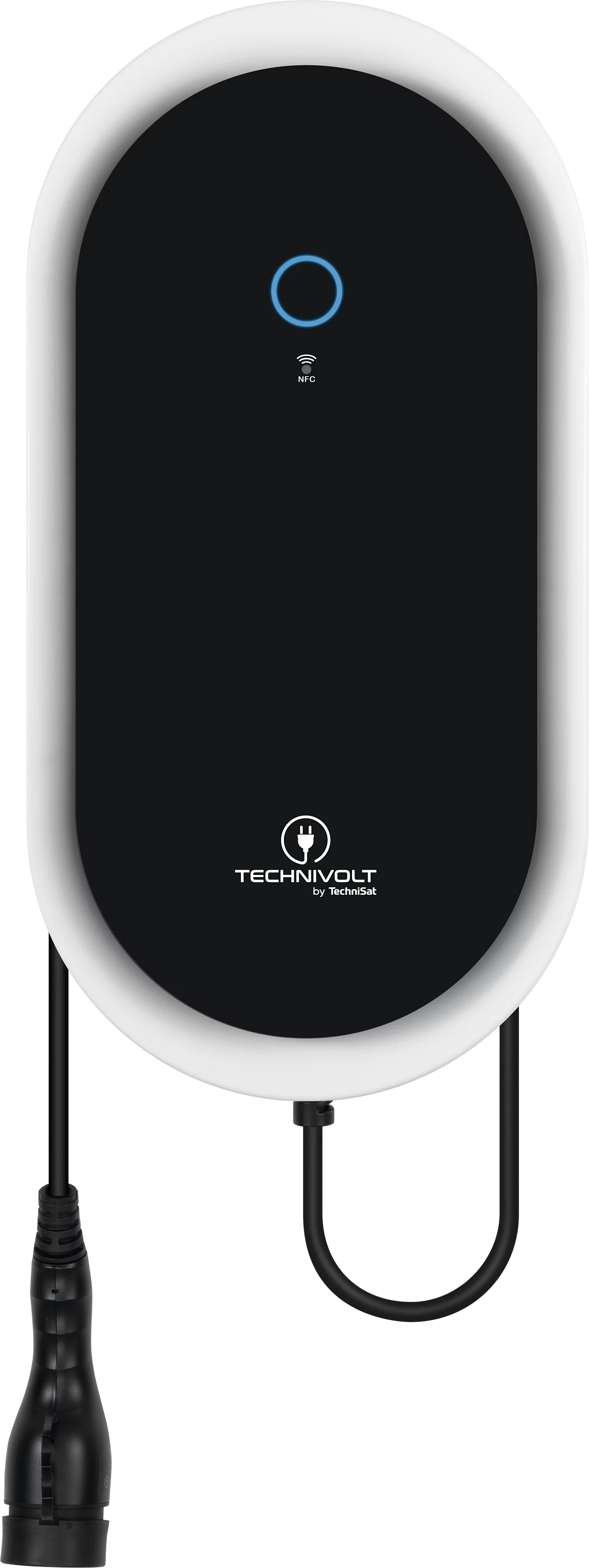

TECHNIVOLT 1100

sonstiges
bf_filter_financial_support: Eligible for KfW funding
bf_filter_charging_power: 11 kg/mm

Mechanical properties
Feedthrough for data cables: M25, for cables Ø 4-9 mm
Housing material: Plastic, flame retardant
Bushing for power supply line: M32, for cables Ø 15-21 mm

RFID
Card type: MIFARE Classic 1k
UID: 4-byte, 7-byte
Frequency: 13,56 MHz
Standard: ISO 14443A

WLAN
IEEE 802.11n: Yes
WPA2: Yes
IEEE 802.11g: Yes
IEEE 802.11b: Yes
2,4 GHz: Yes

Ambient operating conditions
Operating altitude: 2.000 m ü.NN
Humidity: 5 ... 95 % (relative, no dew)
IP class: 54
Temperature: -25 ... 55 °C (without direct sunlight)
Shock resistance: IK08

Ambient storage conditions
Humidity: 5 ... 95 % (relative, no dew)
Temperature: -30 ... 70 °C

Authorisation
RFID: Yes

Load management
Static: Yes
Time-dependent: Yes
Phase imbalance prevention: Yes
Dynamic: Yes

Protection
DC fault current detection: RCM intern, IΔn ≥ 6 mA
MCB in the entrance: Tripping characteristic C
RCCB in the entrance: 4P-20A-30mA, Typ A

Output/vehicle connection
Charging Mode: Mode 3, IEC61851-1
Charging port: Fixed charging cable with type 2 plug, IEC-62196-2
Output voltage: 230 / 400 V
Charging current: 16 A
Charging power: 11 kW·h

Communication
Vehicle communication: PLC, ISO 15118 Plug-&-Charge
Internet / network: Ethernet, WLAN
Charging point <> backend: OCPP Version 1.5, 1.6
User authorization: RFID
Modbus: Yes (TCP)
EEBUS: Yes
SMA SEMP: Yes

Network & communication
TCP/IP: Yes
DHCP: Yes
100Base-T: Yes
HTTP: Yes

Power supply
Nominal current: 16 A
Power consumption standby: typ. 3,7 W
Nominal voltage: 230 / 400 V
Power cord: max. 10 mm² Ø 15-21 mm
Type of current: AC
Rated frequency: 50 Hz
