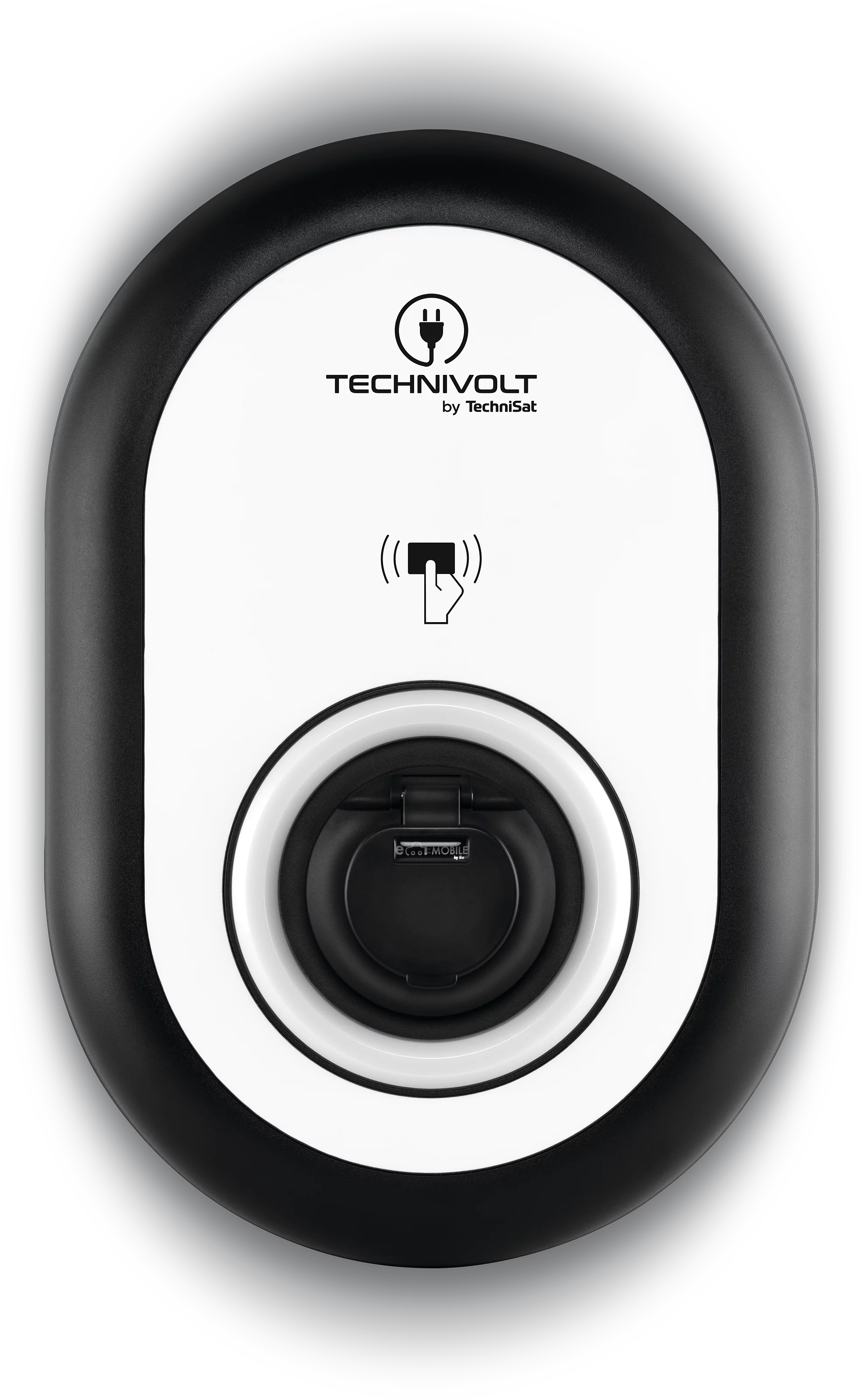

TECHNIVOLT 100

TECHNIVOLT 100

11 kW charging station with integrated charging socket according to IEC 62196-2 Type 2

Colour	EAN	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
black	4019588064003	0000/6400	6,5 kg	4,4 kg	31,5 x 46 x 13,5 cm	39,8 x 52 x 23,7 cm

Top Features

For private home charging: TECHNIVOLT enables fast and safe home charging with numerous advantages

Type 2 charging plug: TECHNIVOLT uses the widely adopted Type 2 plug in Europe, now considered standard, with 11kW for extra-fast car charging

Protected by RFID card: Access protection is sensible to prevent unauthorized charging. Use is only possible with registered user cards (2 included)

Versatile mounting options: The TECHNIVOLT 100 can be installed under a carport, in a garage or underground garage, or in the driveway. Alternatively, mounting on a stand column (optional) is also possible

sonstiges
bf_filter_charging_power: 11 kg/mm
bf_filter_financial_support: Eligible for KfW funding

Ambient storage conditions
Temperature: -40 ... 80 °C
Humidity: 5 ... 95 % (relative, no dew)

Authorisation
RFID: Yes

Mechanical properties
Feedthrough for data cables: M20, for 2 cables
Bushing for power supply line: M32, for cables Ø 15-21 mm
Housing material: Plastic, fireproof

RFID
Standard: ISO 14443A
UID: 4-byte
Card type: MIFARE Classic 1k
Frequency: 13,56 MHz

Protection
DC fault current detection: RCM intern, IΔn ≥ 6 mA
MCB in the entrance: Tripping characteristic C
RCCB in the entrance: 4P-20A-30mA, Typ A

Output/vehicle connection
Charging Mode: Mode 3, IEC61851-1
Charging port: Socket type 2, IEC-62196
Output voltage: 230 / 400 V
Charging current: 16 A
Charging power: 11 kW·h

Ambient operating conditions
Operating altitude: 4.000 m ü.NN
Humidity: 5 ... 95 % (relative, no dew)
Shock resistance: IK10
IP class: 54
Temperature: -35 ... 55 °C (without direct sunlight)

Communication
User authorization: RFID
Modbus: Yes (RS485)

Power supply
Nominal current: 16 A 3-phase
Rated frequency: 50 Hz
Nominal voltage: 230 / 400 V
Power consumption standby: 3,5 W
Power cord: max. 10 mm² Ø 15-21 mm
Type of current: AC

Scope of Delivery
Charging station TECHNIVOLT 100, assembly instructions, user manual, assembly template, mounting accessories, 1x Master RFID card, 2x user RFID card
