DIGIFLEX TT5

DIGIFLEX TT5

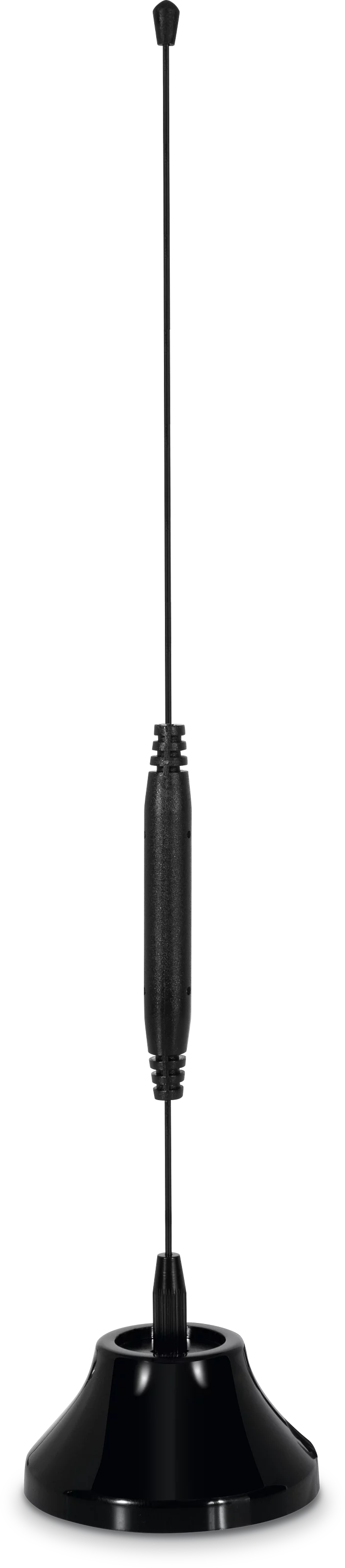

Active rod antenna with built-in amplifier for the reception of DVB-T and DAB+
Colour EAN Item no. Weight (Box) Weight Device (W x H x D) Box
black 4019588060258 0000/6025 230 g 152 g 7 x 34,5 x 7 cm 7,5 x 32,5 x 5,5 cm
Top Features
  • Compact active indoor antenna for receiving digital television via DVB-T2 and digital radio via DAB+/FM without an outdoor antenna
  • Easy installation via the antenna socket of the receiver and stable placement thanks to the built-in magnet in the antenna base
  • Strong reception: The LTE filter eliminates interference from mobile signals and, together with the signal amplifier, ensures strong and stable reception
  • The antenna is powered by the connected receiving device – 5 volts (40 mA); Reception range: VHF: 87.5 … 230 MHz, UHF: 470 … 790 MHz
  • Note: When using with DAB+ receivers, the antenna input of the DAB+ radio must supply 5 V power to the antenna; otherwise, it will not work
Amplification
VHF: 24 dB
UHF: 26 dB
General characteristics
Cable length: 2 m
Power supply
Antenna feed: 5V by the receiver
Reception range
VHF: 87,5 ... 230 MHz
UHF: 470 ... 790 MHz
Technical data
Noise factor: 3,5 dB
Protection class: IP20
Connector type: IEC
Impedance: 75 Ω
Scope of Delivery
Rod antenna, base with antenna cable and amplifier, Quick Start Guide
