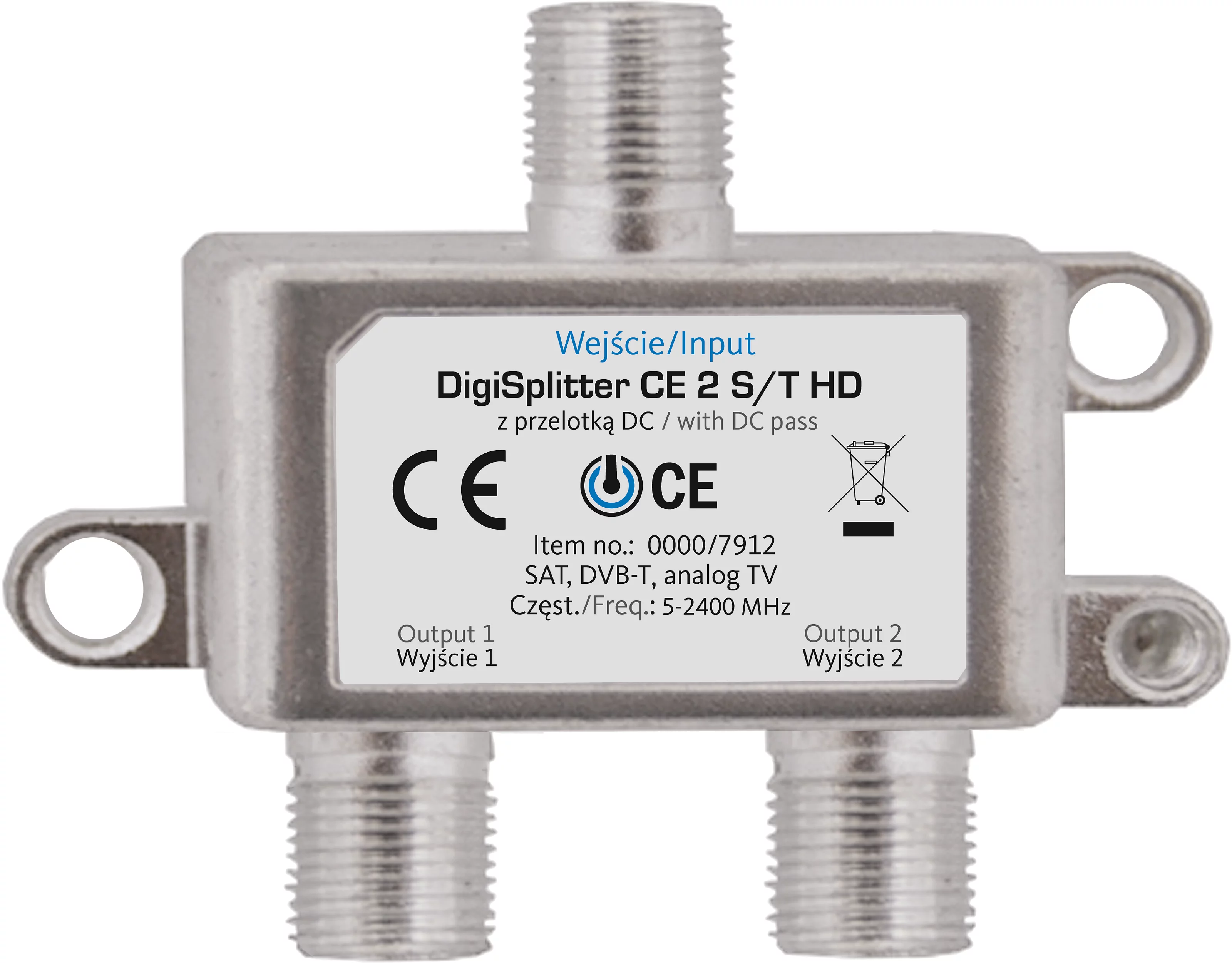

DIGISPLITTER CE 2 S/T HD
for the 2-fold distribution or merger of Sat signals
| EAN |
Colour |
Item no. |
| 4019588079120 |
silber |
0000/7912 |
| sonstiges |
| bf_filter_number_of_participants: 2 |
| bf_filter_number_satellites: 1 |
| Decoupling |
| 5 - 862 MHz: Typ. 22 dB (< 40 MHz = 8 dB) |
| 950 - 1750 MHz: Typ. 20 dB |
| 1750 - 2150 MHz: Typ. 20 dB |
| Return loss |
| 5 - 862 MHz: Typ. 12 dB |
| 950 - 1750 MHz: Typ. 12 dB |
| 1750 - 2150 MHz: Typ. 10 dB |
| Technical data |
| Input: 1 |
| Outputs: 2 |
| Frequency range: 5 ... 2.400 MHz |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Connector type: F female |
| Impedance: 75 Ω |
| Transmission loss |
| 5 - 862 MHz: Typ. 4,5 dB (± 1) |
| 950 - 1750 MHz: Typ. 5 dB (± 1,5) |
| 1750 - 2150 MHz: Typ. 6 dB (± 2) |
| Scope of Delivery |
| 2-waY TV Sat splitter |
