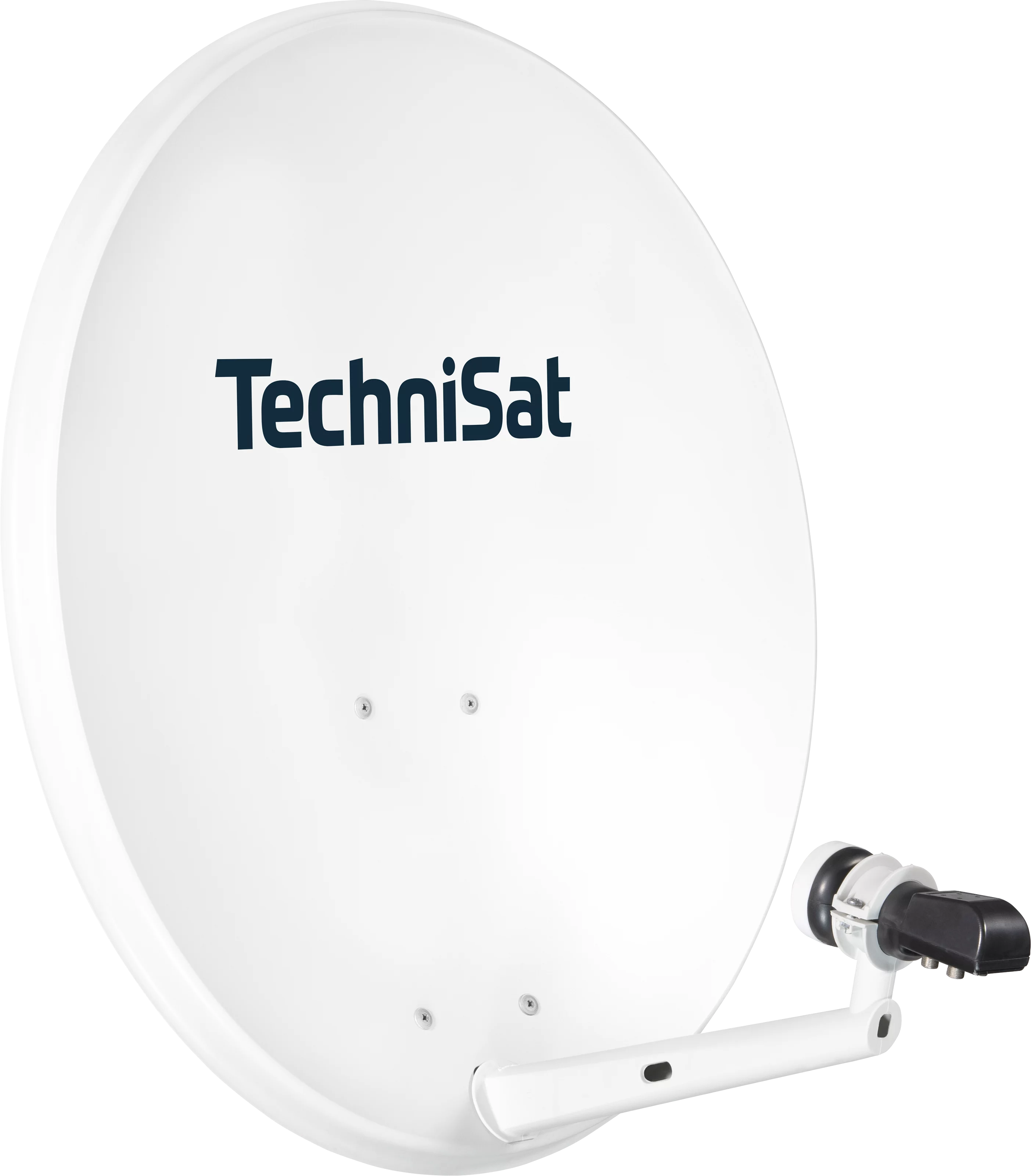

TECHNITENNE 70 with Quattro-Switch-LNB

Local oscillator
Low band: 9,75 GHz
High band: 10,6 GHz
Accuracy: ± 1 MHz
Temperature drift: ± 1 MHz
Phase noise: -80 @10kHz

Filter-Navigation
Number participants: 4
Diameter: 70 cm
Features: with LNB
Number satellites: 1

LNB control
Vertical: 10,5 ... 14 V
Horizontal: 16 ... 19,5 V
Band switch: 22 kHz

General characteristics
Material: steel
Material strength: 0,5 mm
Coating: painted

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Prepared for
Number of orbit positions: 1
Number of clients: 4

Technical data
Rated measurement: 0,63 m
F/D: 0,49
G/T: 14,7
Gain: 36,5 dBi @11,3GHz
Offset angle: 27,77 °
Mast Ø: 32 ... 50 mm
Feed reception: 40 mm
Outputs: 4
Connector type: F female
Impedance: 75 Ω
Amplification: 55 ... 67 dB (LNB)
