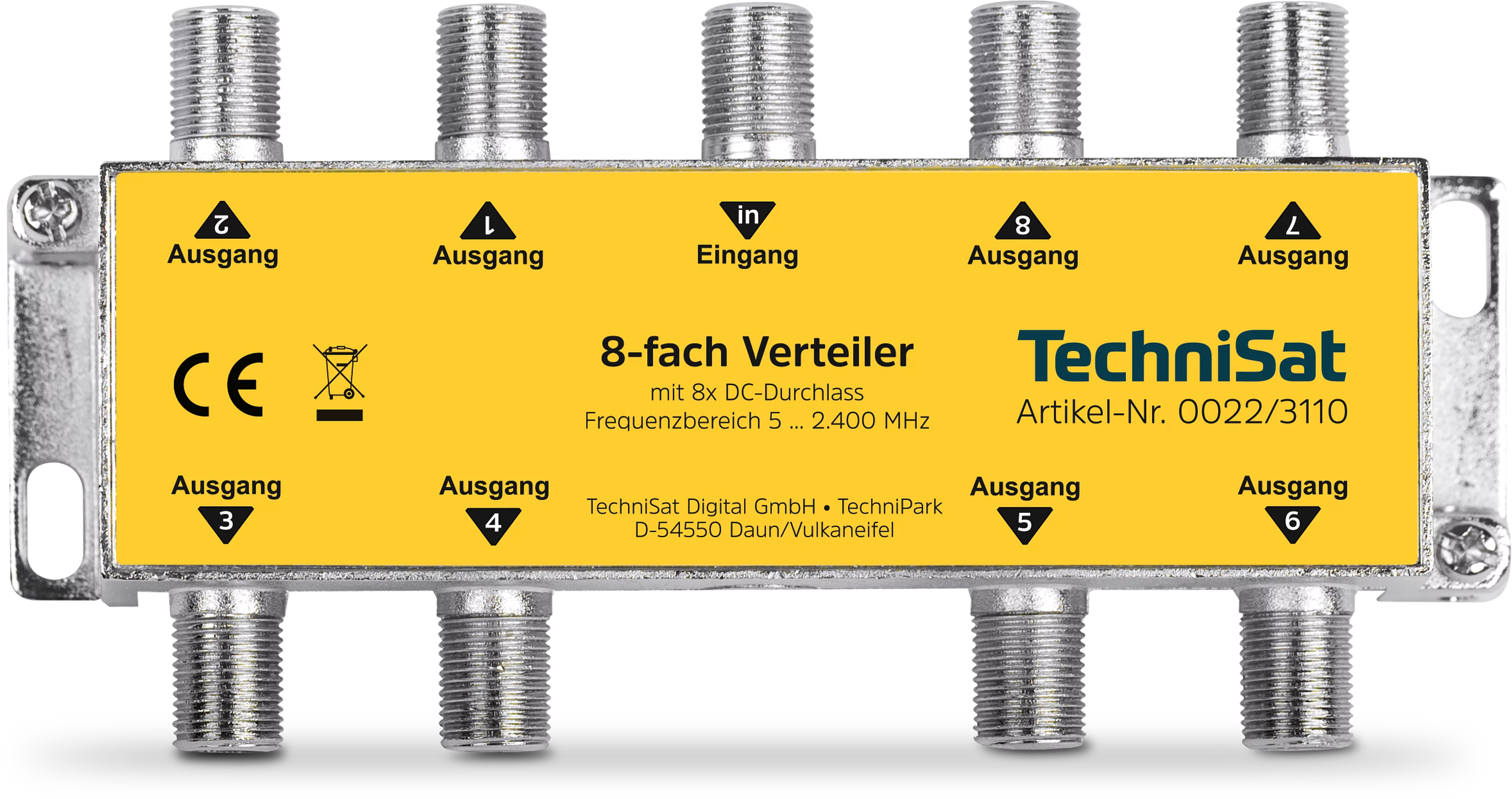

8 way satellite splitter
for the 8-fold distribution of Sat signals
| EAN |
Colour |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| 4019588223103 |
silver |
0022/3110 |
136 g |
130 g |
11,8 x 6 x 1,7 cm |
14,5 x 10 x 1,7 cm |
| Decoupling |
| 5 - 862 MHz: Typ. 22 dB |
| 950 - 1750 MHz: Typ. 22 dB |
| 1750 - 2150 MHz: Typ. 21 dB |
| General characteristics |
| Top features: DC power pass |
| Top features: diode decoupled |
| Top features: DiSEqC-compatible |
| Top features: TECHNIROUTER-compatible |
| Return loss |
| 5 - 862 MHz: Typ. 9 dB |
| 950 - 1750 MHz: Typ. 13 dB |
| 1750 - 2150 MHz: Typ. 11 dB |
| Technical data |
| Input: 1 |
| Outputs: 8 |
| Frequency range: 5 ... 2.150 MHz |
| Shielding factor: ≥ 75 dB EN 50083-2 (Class A) |
| Connector type: F female |
| Impedance: 75 Ω |
| Transmission loss |
| 5 - 862 MHz: Typ. 12 dB (± 1) |
| 950 - 1750 MHz: Typ. 15 dB (± 1) |
| 1750 - 2150 MHz: Typ. 18 dB (± 1) |
| Scope of Delivery |
| 8-Wege Sat-Verteiler |
