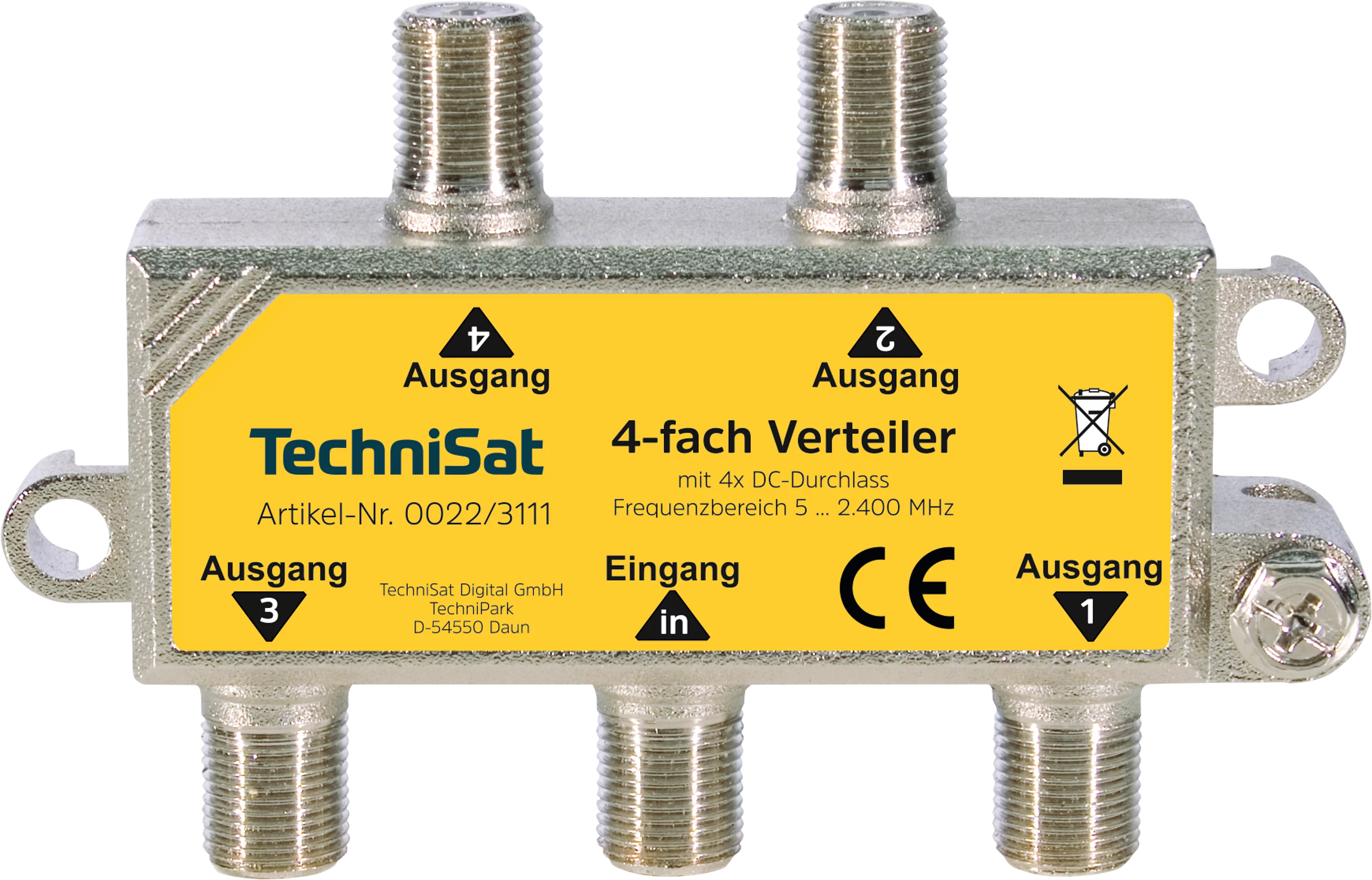

4 way satellite splitter

4 way satellite splitter

for the 4-fold distribution of Sat signals

EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
4019588223110	silver	0022/3111	114 g	100 g	8,5 x 5,5 x 1,8 cm	9 x 10 x 2,5 cm

Top Features

Versatile application: broadband 4-way splitter for distributing SAT, cable, and terrestrial signals

Combiner: The splitter operates in the frequency range 5 – 2,400 MHz and has F-sockets on both input and output sides. Also usable in reverse to combine signals of the same standard

No voltage drop: The outputs are not diode-decoupled and feature full DC pass-through

Ideally suited for TECHNIROUTER systems: When distributing TECHNIROUTER signals, always use diode-decoupled antenna sockets

Decoupling
5 - 862 MHz: Typ. 20 dB
950 - 1750 MHz: Typ. 20 dB
1750 - 2150 MHz: Typ. 20 dB

General characteristics
Top features: DC power pass
Top features: diode decoupled
Top features: DiSEqC-compatible
Top features: TECHNIROUTER-compatible

Return loss
5 - 862 MHz: Typ. 12 dB
950 - 1750 MHz: Typ. 10 dB
1750 - 2150 MHz: Typ. 10 dB

Technical data
Input: 1
Outputs: 4
Frequency range: 5 ... 2.400 MHz
Shielding factor: ≥ 75 dB EN 50083-2 (Class A)
Connector type: F female
Impedance: 75 Ω

Transmission loss
5 - 862 MHz: Typ. 8 dB (± 1)
950 - 1750 MHz: Typ. 8 dB (± 1)
1750 - 2150 MHz: Typ. 9 dB (± 1)

Scope of Delivery
4-Wege Sat-Verteiler
