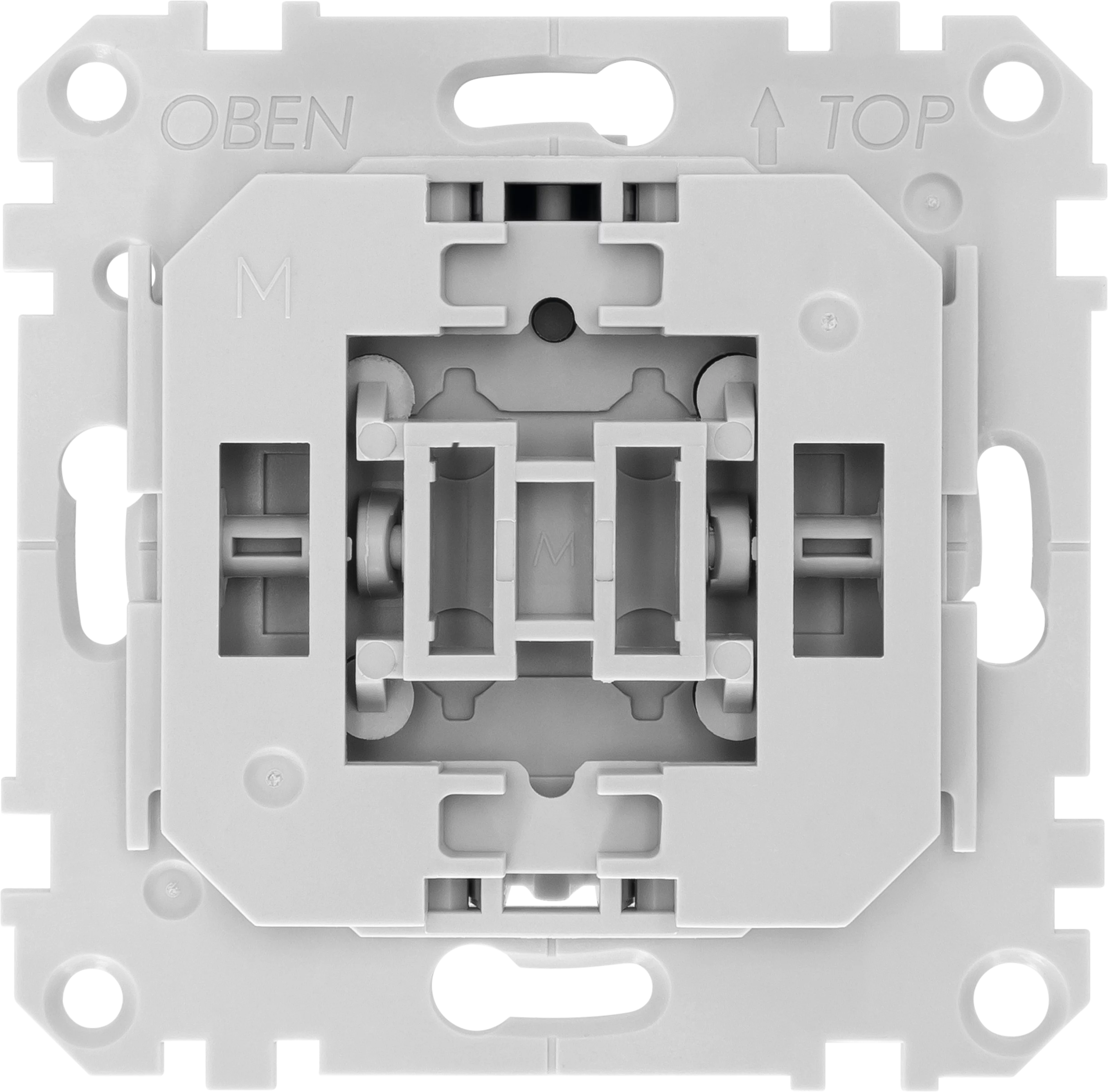

Dimmer flush mount, M
Compatible with Merten switch ranges
| Colour |
EAN |
Item no. |
Weight (Box) |
Weight |
Device (W x H x D) |
Box |
| light/gray |
4019588294974 |
0200/9497 |
130 g |
70 g |
7 x 7 x 4,5 cm |
11,5 x 10,5 x 5,8 cm |
| Top Features |
- Suitable for Merten switch system “System M”: the flush-mounted unit replaces the existing module. Existing wiring, rocker switches, and cover frames are reused
- Integration into the smart home network also enables power consumption measurement and time-controlled scenarios. A Z-Wave controller is required for integration
- We rely on Z-Wave as a secure wireless protocol
|
| Ambient storage conditions |
| Temperature: -20 ... 60 °C |
| Humidity: 5 ... 90 % |
| Ambient operating conditions |
| IP class: 20 |
| Ambient temperature: 5 ... 35 °C |
| Humidity: 10 ... 75 % |
| funk communication |
| Telecommunication: Z-Wave Plus |
| funk_security_s2: Yes |
| funk_smartstart: Yes |
| Range inside: max. 40 m |
| operating frequency: 868,42 MHz |
| Repeater function: Yes |
| Power supply |
| Frequency: 50 Hz ± 10 % |
| Nominal voltage: 230 V ± 10 % |
| Effective output: 200 W |
| Power consumption: < 3 mA (without load) |
| Scope of Delivery |
| Dimmer insert, compensation frame, assemblY instructions, fastening screws |
