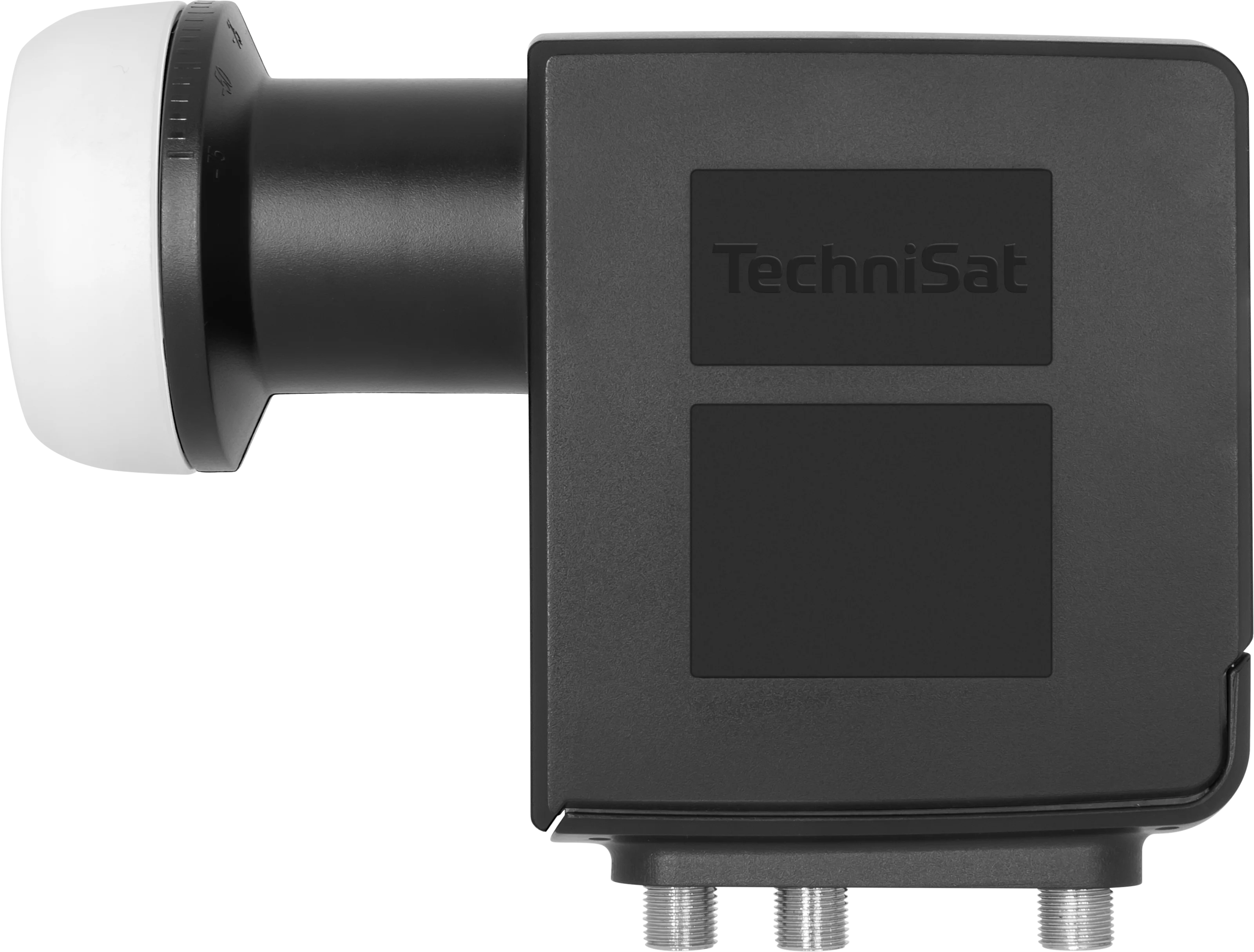

Universal SCR 8+2 LNB

Universal SCR 8+2 LNB

SCR-LNB with 2 legacy outputs

VPE Karton	VPE Palette	EAN	Colour	Item no.	Weight (Box)	Weight	Device (W x H x D)	Box
20	480	4019588083127	black	0000/8312	334 g	254 g	5,8 x 11,7 x 15 cm	15,7 x 6,8 x 12,5 cm

Top Features

Reception for up to 10 users: via one output, eight users can be supplied with satellite signal using the single-cable solution, and an additional two via the legacy output without single-cable

One orbital position: The LNB receives signals from a single orbital position, usually Astra 19.2° East in Germany

Universally usable: The LNB is suitable for all satellite dishes with a 40 mm feed clamp and can be easily installed or replaced

Interference-free reception: The LNB is protected from LTE mobile interference by its design

sonstiges
bf_filter_number_of_participants: 10
bf_filter_number_satellites: 1

Local oscillator
Accuracy: ± 0,4 MHz
Temperature drift: ± 1 MHz
Phase noise: -80 @10kHz
High band: 10,6 GHz
Low band: 9,75 GHz

LNB control
Vertical: 11 ... 14 V
Horizontal: 16 ... 20 V
Band switch: 22 kHz

Ambient operating conditions
Ambient temperature: -40 ... 60 °C
Humidity: 10 ... 95 %

Input frequency range
Low band: 10,7 ... 11,7 GHz
High band: 11,7 ... 12,75 GHz

Noise factor
Noise figure: typ. 1 dB

Output frequency range
Low band: 950 ... 1.950 MHz
High band: 1.100 ... 2.150 MHz

Power supply
Power consumption: max. 400 mA all SCR user "on"

Prepared for
Number of orbit positions: 1
Number of clients: 10

Single-cable output
Output frequency: 950 ... 2.150 MHz
Number of output channels: 8
Frequency of the output channels: 1284, 1400, 1516, 1632, 1748, 1864, 1980, 2096 MHz

Technical data
Outputs: 3 ; 1x SCR, 2x Legacy
Amplification: ≥ 55 dB
Feed reception: 40 mm
Connector type: F female
Impedance: 75 Ω

Scope of Delivery
Universal-SCR 8+2 LNB
